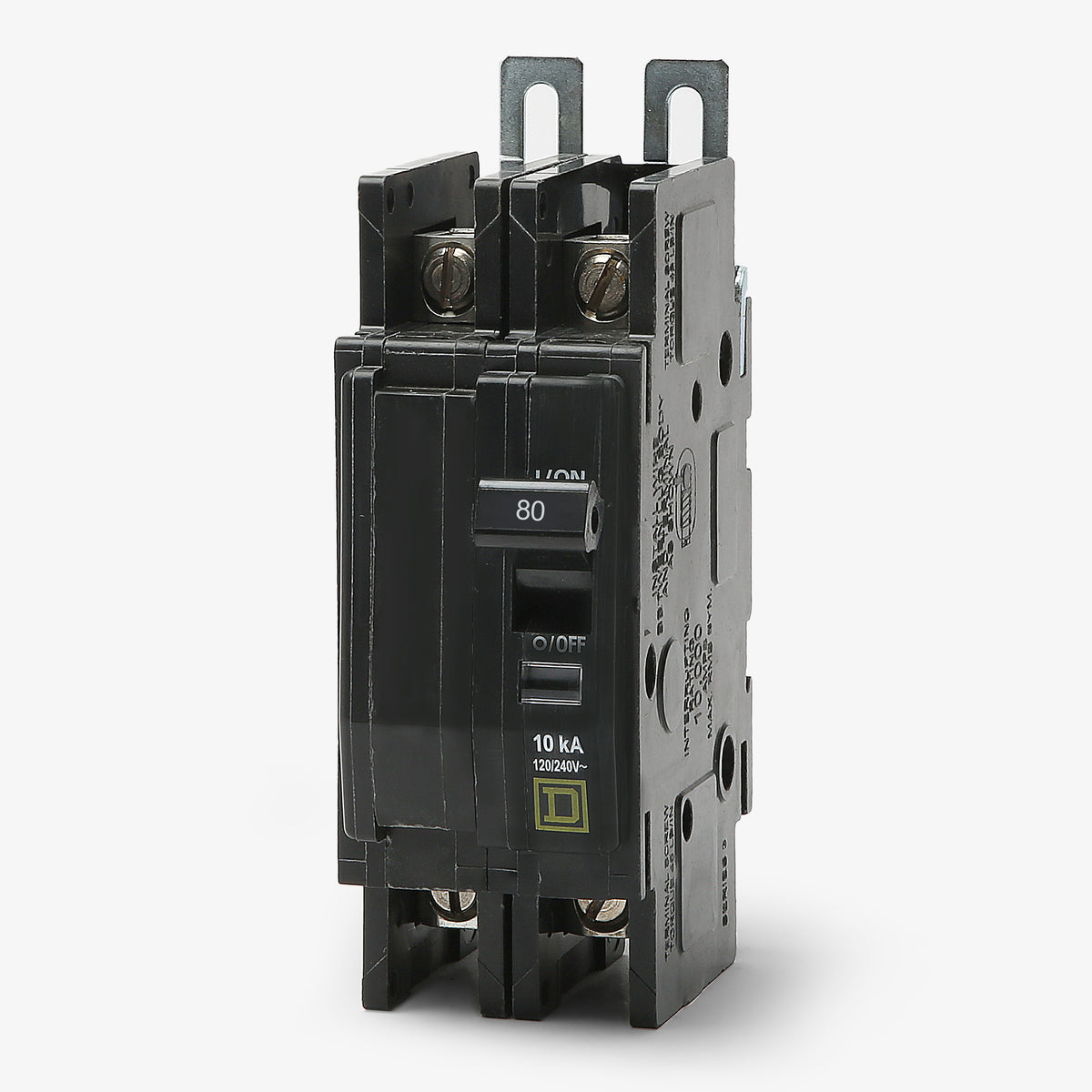

Square D QOU280 Miniature Circuit Breaker
- 80A
- 2 Pole
- Unit Mount
Square D
QOU280
Miniature Circuit Breaker
Brand
Square D
SKU
QOU280
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU280 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOU280 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU280 |
| Series | QOU |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 60VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 60VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Control Panels, Enclosures |
| Wire Gauge | 12-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment, Auxiliary Switch, Alarm Switch, Shunt Trip |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
Sold out
Quantity
Square D QOU280 - 80A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU280-R |
| Series | QOU |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 60VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 60VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Control Panels, Enclosures |
| Wire Gauge | 12-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment, Auxiliary Switch, Alarm Switch, Shunt Trip |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
Similar Items
70A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Part of the QOU series, the Square D QOU280 is a 2-pole, 80A miniature circuit breaker designed for surface, flush, or DIN rail mounting. It mounts into OEM panels, control enclosures, and custom distribution systems, offering exceptional wiring flexibility with its reversible line and load box lugs. Rated at 10 kAIC at 120/240VAC, this HACR-rated breaker includes the signature Visi-Trip indicator, allowing maintenance personnel to quickly spot a tripped circuit in crowded panels.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU280 |
| Series | QOU |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 60VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 60VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Control Panels, Enclosures |
| Wire Gauge | 12-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment, Auxiliary Switch, Alarm Switch, Shunt Trip |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
Product FAQs
5 answersHow is the QOU280 mounted in a panel or enclosure?
This unit-mount breaker can be installed on a standard 35mm DIN rail, surface-mounted, or flush-mounted using mounting feet. Its cable-in, cable-out design makes it highly adaptable for OEM panels and custom control enclosures.
Can I reverse the line and load connections on this breaker?

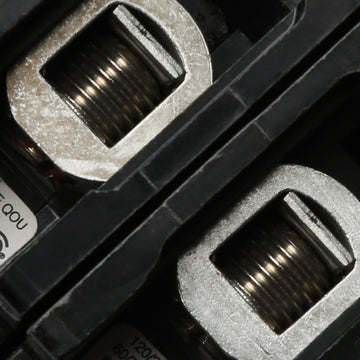

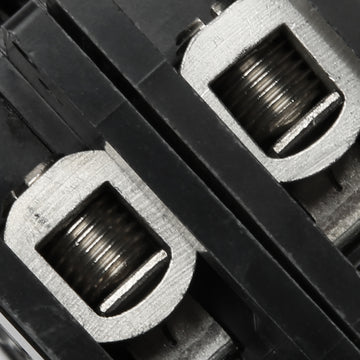

Yes, the QOU280 features reversible line and load box lugs. This allows you to feed power from either direction without compromising the thermal-magnetic protection capabilities.
Can I add a shunt trip or auxiliary switch to the QOU280 in the field?
No, accessories like shunt trips and auxiliary switches cannot be field-installed on QOU series breakers. They must be ordered as factory-installed options from Schneider Electric.
How can I tell if the QOU280 has tripped?
This breaker features the Square D Visi-Trip visual indicator. When the breaker trips due to an overcurrent or short circuit, a highly visible red indicator appears in the window, making it easy to identify the tripped circuit in a crowded panel.
Is the QOU280 suitable for use with HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires overcurrent protection.
