Square D QOU325 Miniature Circuit Breaker
- 25A
- 3 Pole
- Unit Mount
Square D
QOU325
Miniature Circuit Breaker
Brand
Square D
SKU
QOU325
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

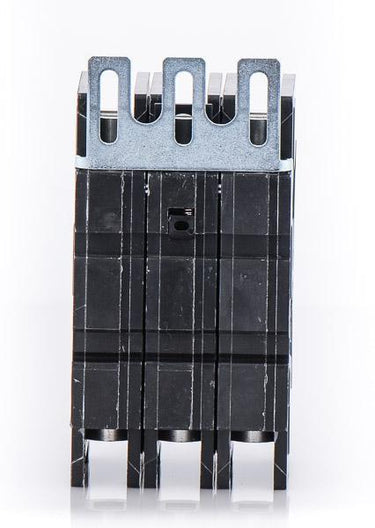

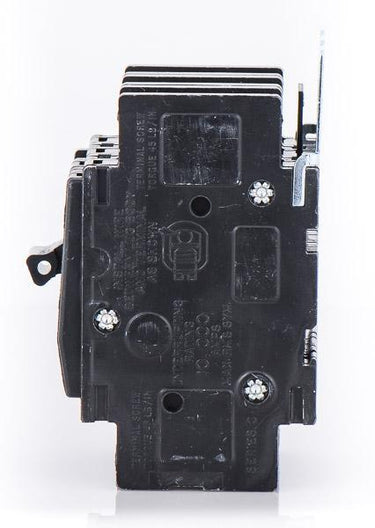

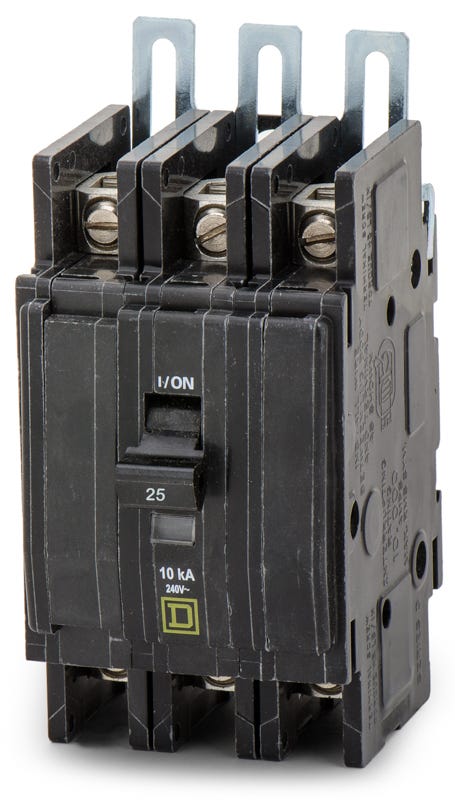

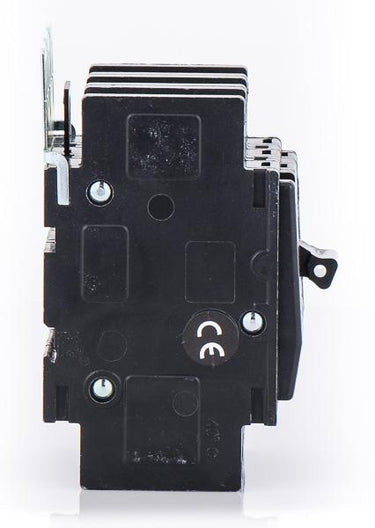

Square D QOU325 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
Description
Built for versatile applications, the Square D QOU325 is a 3-pole, 25A miniature circuit breaker delivering reliable thermal-magnetic protection. The unit-mount design allows for flexible installation into OEM panels and DIN rail setups. It accepts 14-2 AWG wire and comes equipped with reversible line and load lugs. Rated 10 kAIC at 240VAC, this HACR-rated breaker handles standard fault currents effectively. It features a Visi-Trip indicator to quickly identify tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU325 |
| Series | QOU |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | OEM Panels, Control Panels, DIN Rail Systems, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Product FAQs
5 answersHow is the QOU325 mounted in an enclosure?
While classified as a unit-mount breaker, it offers versatile installation options. It can be flush-mounted, surface-mounted, or snapped directly onto a standard DIN rail within OEM and control panels.
Are the line and load connections on the QOU325 reversible?
Yes, this breaker features reversible slotted box lugs for both the line and load sides. This allows for reverse feeding and provides flexibility when wiring for flush or surface-mounted applications.
Is the QOU325 rated for use with HVAC equipment?
Yes, this breaker is HACR and Switching Duty rated, meaning it is certified to handle the specific electrical demands of heating, air conditioning, and refrigeration equipment.
Can I use a jumper bar with the QOU325?
Yes, Square D manufactures QOU series jumper bar assemblies. These allow multiple QOU circuit breakers to connect to a common power source, reducing wiring complexity in your panel.
How does the QOU325 indicate a tripped circuit?
The breaker includes a visual trip indicator. The handle position clearly shows whether the breaker is in the ON, OFF, or tripped position, allowing for quick identification of electrical faults.
