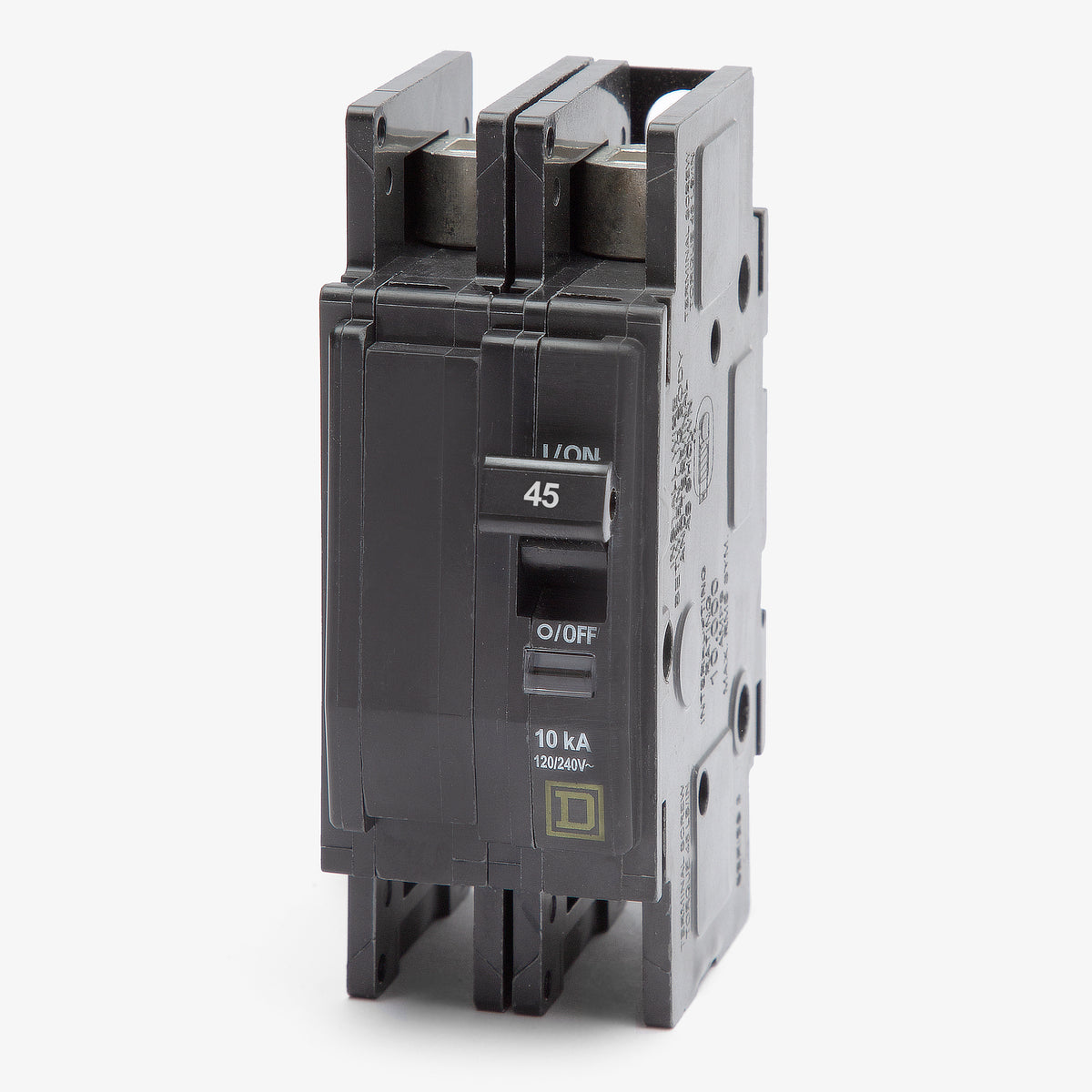

Square D QOUR245 Miniature Circuit Breaker
- 45A
- 2 Pole
- Unit Mount
Square D
QOUR245
Miniature Circuit Breaker
Brand
Square D
SKU
QOUR245
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOUR245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
Description
Built for demanding environments, the Square D QOUR245 delivers precise thermal-magnetic protection. This 2-pole, 45A miniature circuit breaker is suitable for applications where reliable power management is essential. Capable of surface or DIN-rail mounting, this breaker integrates easily into OEM panels. Its lugs are factory-reversed prior to shipment, making it a great alternative to the standard QOU245. Operating at 10 kAIC, it features Visi-Trip technology and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Series | QOUR |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | OEM Panels, Control Panels, DIN Rail Systems, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reversible Lugs |
Product FAQs
5 answersWhat is the difference between the QOUR245 and the standard QOU245?
The QOUR245 is identical to the standard QOU245, but the field-reversible lugs are reversed by the factory prior to shipment. This configuration allows the breaker to be flush mounted and conveniently wired from the back.
Can the QOUR245 be mounted on a standard DIN rail?
Yes. QOUR miniature circuit breakers feature built-in slots in the molded case that allow them to snap directly onto standard 35mm DIN rails. They can also be surface mounted or flush mounted using mounting feet.
What is the recommended terminal tightening torque for this breaker?

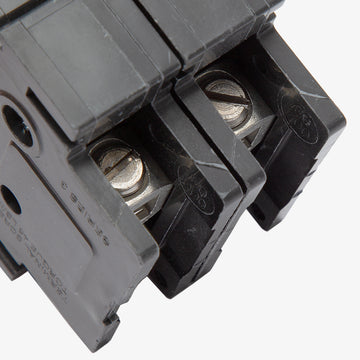

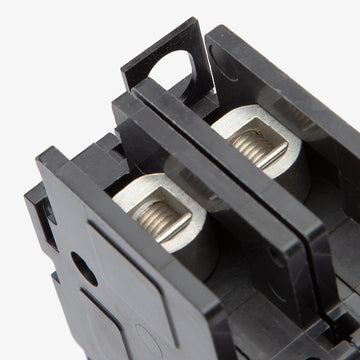

The slotted box lugs on the QOUR245 should be torqued to 45 lbf-in (5.08 N.m) when using 14 AWG to 2 AWG copper or aluminum wire.
Are the lugs on the QOUR245 field-reversible?
Yes. Although the QOUR series ships with the lugs factory-reversed, removing the wire binding screw allows the captive lug body to be rotated and reinstalled to accommodate different wiring orientations and panel layouts.
Does this breaker feature a visual trip indicator?
Yes, it includes Visi-Trip technology. When the breaker trips due to an overcurrent or short circuit condition, the handle moves to a center position and a bright red indicator becomes visible through the case window for rapid fault identification.
