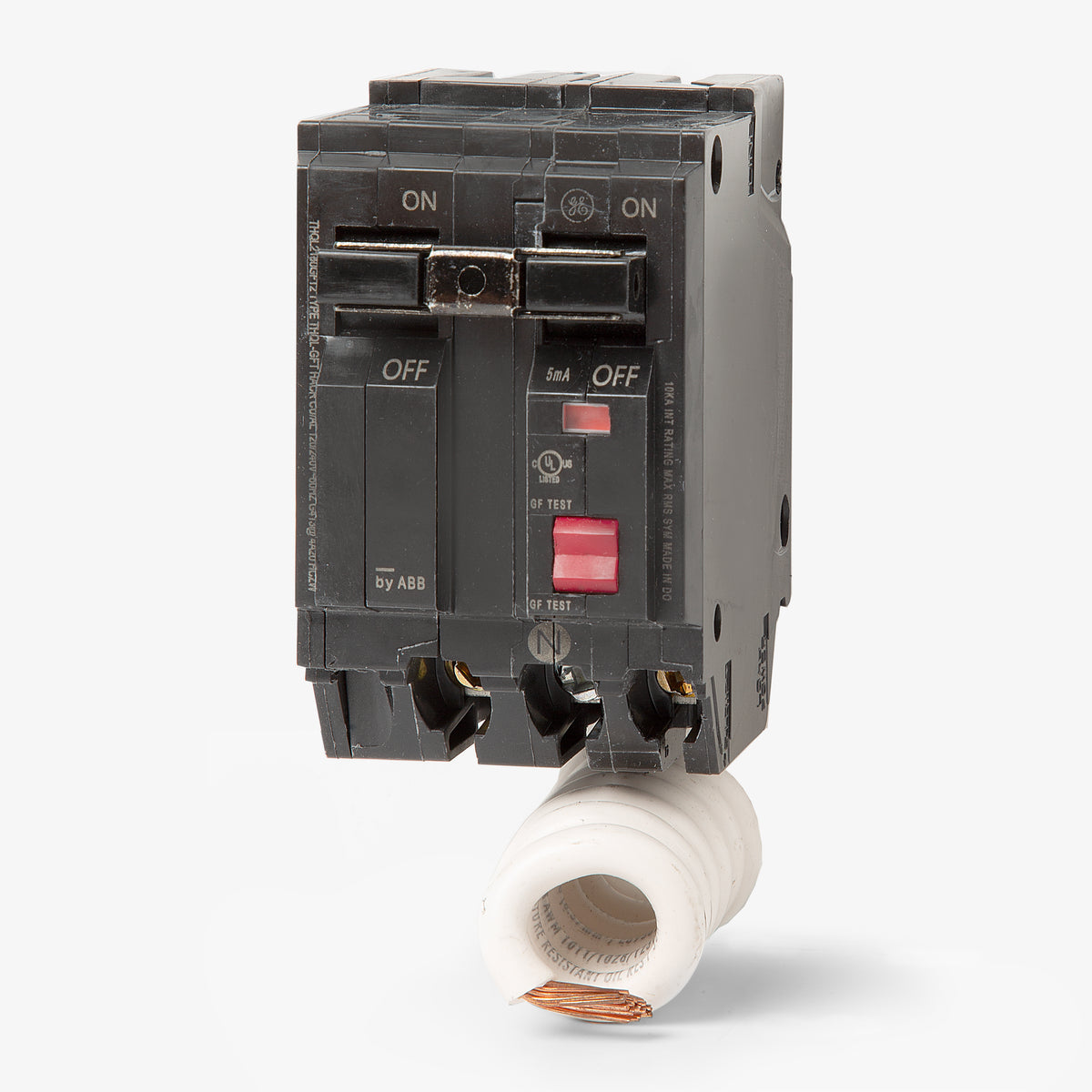

ABB / General Electric THQL2115GFT GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2115GFT
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2115GFT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2115GFT - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2120GFT
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2125GFT
25A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2130GFT
30A GFCI Miniature Circuit Breaker
Description
Delivering advanced safety, this 15-amp, two-pole GFCI breaker incorporates an automatic self-test feature. This ensures the Class A 5mA ground fault protection remains fully operational to meet strict NEC standards. Engineered for compatibility with GE Q-Line and PowerMark Gold load centers. This plug-on breaker serves as the direct replacement for the older THQL2115GF model, offering upgraded diagnostics. Rated for 10kAIC at 120/240VAC, the unit includes an internal common trip mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2115GFT |
| Series | THQL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Self-Test Feature |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Self-Test, HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich load centers are compatible with the THQL2115GFT breaker?
This breaker is designed for use in GE Q-Line, GE PowerMark Gold, and ABB ReliaHome load centers that accept 1-inch plug-in breakers.
Does the THQL2115GFT include an automatic self-test feature?
Yes, the GFT suffix indicates it includes an automatic self-test function. This continuously monitors the internal electronics to ensure the Class A 5mA ground fault protection remains fully operational.
How is the neutral connection made on this GFCI breaker?

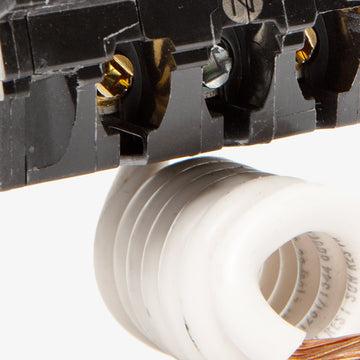

The THQL2115GFT utilizes a pigtail neutral wire that must be connected directly to the neutral bus bar in the load center to ensure proper ground fault detection.
Can the THQL2115GFT replace older GE GFCI breakers?
Yes, this self-testing model serves as a direct replacement for the older, discontinued THQL2115GF breaker. It fits the same physical footprint while offering upgraded diagnostics to meet current NEC standards.
What is the ground fault trip threshold for this breaker?
It features Class A ground fault protection, meaning it is designed to trip when it detects a ground fault leakage current of 5mA.
Where is a 2-pole GFCI breaker typically required?
A 2-pole 15A GFCI breaker is commonly used for 240V circuits requiring ground fault protection, such as pool pumps, spa equipment, or specific outdoor equipment, in accordance with NEC requirements.
What does the LIG trip function indicate on this breaker?
The LIG designation means the breaker provides Long-Time (thermal overload), Instantaneous (short circuit), and Ground Fault protection in a single unit.
