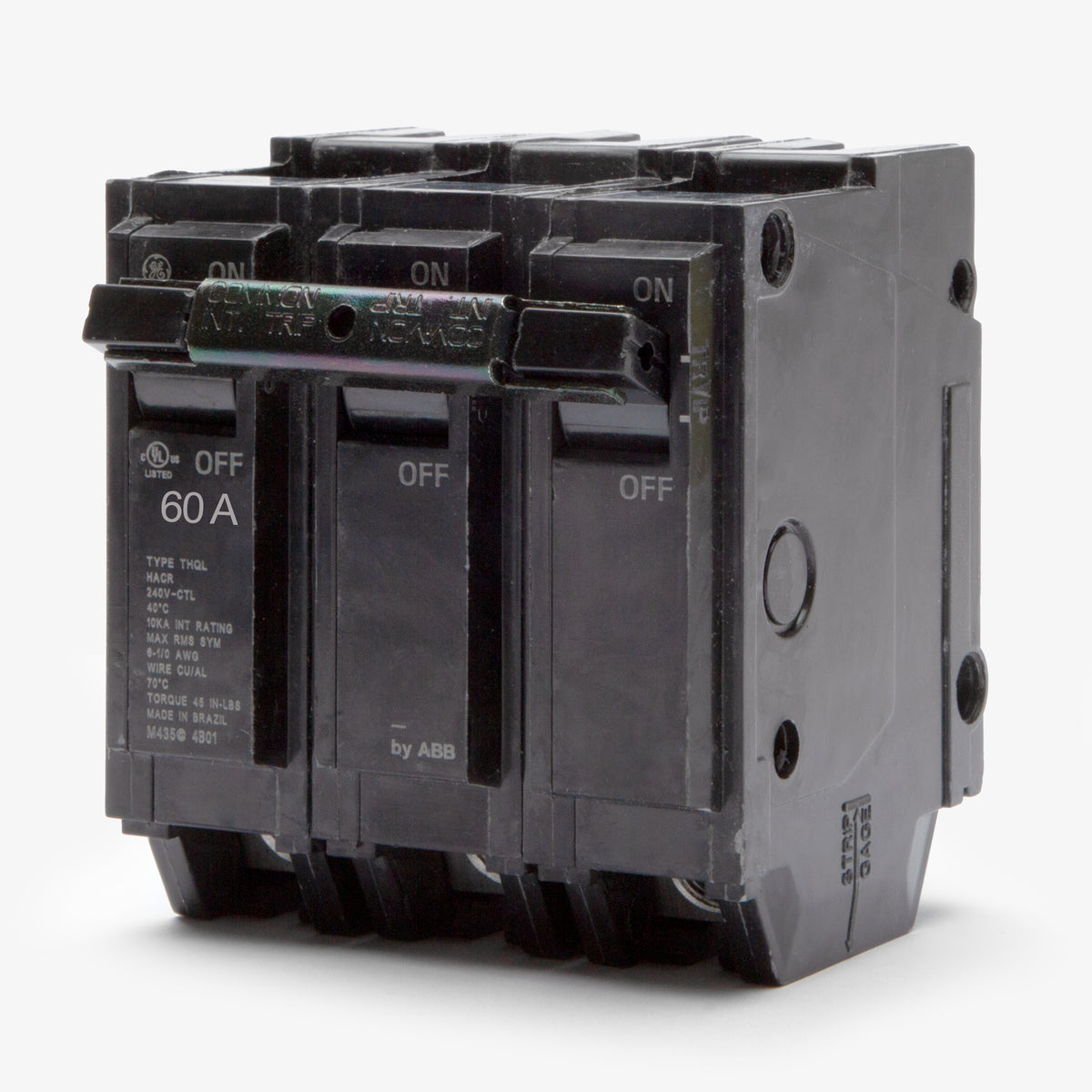

ABB / General Electric THQL32060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Plug-On
ABB / General Electric
THQL32060
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQL32060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL32060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL32060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32060 |
| Series | THQL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE PowerMark Gold Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL32060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32060-R |
| Series | THQL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE PowerMark Gold Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL32070ST1
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQL32040ST1
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQL32020
20A 3 Pole Molded Case Circuit Breaker
Description
Designed for robust power distribution, the THQL32060 is a 60A, three-pole molded case circuit breaker from GE. This Q-Line series component is ideal for commercial and industrial applications requiring dependable overcurrent protection. Featuring a standard 1-inch per pole footprint, this plug-on breaker mounts into GE A-Series panelboards and PowerMark Gold load centers. The box lug terminals accommodate 8-3 AWG copper or aluminum wiring for flexible installation.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32060 |
| Series | THQL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE PowerMark Gold Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
5 answersAre ABB THQL32060 and General Electric THQL32060 the same circuit breaker?
Yes. ABB acquired GE Industrial Solutions in 2018. This breaker is manufactured to the exact same specifications and will often feature both ABB and GE branding on the label.
How much panel space does the THQL32060 require on the busbar?
As a 3-pole breaker in the Q-Line family, it requires 1 inch per pole. This means it occupies 3 inches of total horizontal space in the load center or panelboard.
Is the THQL32060 compatible with older GE PowerMark Plus load centers?
Yes, this plug-on breaker is fully backward compatible with legacy GE PowerMark Plus load centers, as well as current PowerMark Gold load centers and A-Series panelboards that accept 3-pole THQL frames.
Does this breaker feature a common trip mechanism?
Yes, the THQL32060 features an internal common trip. An overcurrent or short circuit on any single pole will force all three poles to trip simultaneously, safely disconnecting all phases of the circuit.
Is the THQL32060 suitable for use in HVAC applications?
Yes, this 60A breaker is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires overcurrent protection for a multi-phase circuit.
