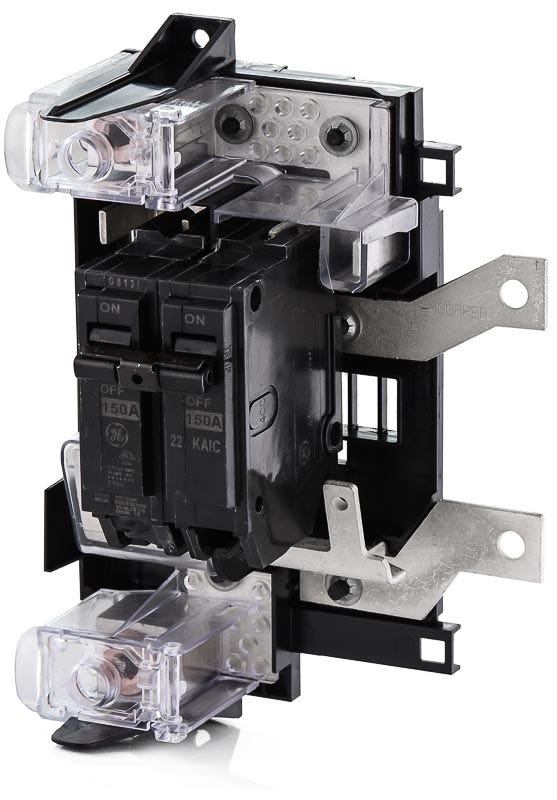

ABB / General Electric THQMV150D Molded Case Circuit Breaker
- 150A
- 2 Pole
- Plug-On
ABB / General Electric
THQMV150D
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQMV150D
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQMV150D - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQMV175E
175A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV175WL
175A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV175D
175A 2 Pole Molded Case Circuit Breaker
Description
Providing robust overcurrent protection, the GE THQMV150D is a 150A, two-pole molded case circuit breaker. It is specifically configured as a load center main breaker for residential and commercial applications. This unit mounts into 150A-225A GE PowerMark Gold and ABB ReliaHome panels using a plug-on design. It is a legacy component that has been replaced by the THQMV150E model. The breaker delivers a 22kAIC rating at 120/240VAC, featuring a quick-make/quick-break mechanism and top feed.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQMV150D |
| Series | THQMV |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (150A-225A), ABB ReliaHome Load Centers |
| Wire Gauge | 1 AWG - 300 kcmil (Cu), 2/0 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG (Cu), 2/0 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Mounting Base, Lugs |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Main Breaker, Common Trip, Quick-Make/Quick-Break, HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhich load centers are compatible with the THQMV150D main breaker?
This breaker is specifically designed for use as a main breaker in 150A to 225A GE PowerMark Gold and ABB ReliaHome convertible load centers.
Is there a direct replacement for the THQMV150D?
Yes, the THQMV150D is a legacy component and has been directly replaced by the ABB / General Electric THQMV150E model for 150A main breaker applications.
How does the THQMV150D connect to the panel bus?
It features a plug-on design that connects directly to the bus bar in compatible convertible main load centers. The lug orientation allows for straight-in wiring, which eliminates the need for pigtail wires.
Can the THQMV150D be used for both top and bottom feed applications?
Yes, the breaker is designed with a horizontal handle and specific lug orientation that accommodates both top and bottom feed configurations in compatible load centers.
Does this breaker provide common trip protection?
Yes, this two-pole breaker incorporates an internal common trip mechanism. If an overcurrent or short circuit occurs on either pole, both poles will trip simultaneously to safely disconnect power.
What type of protection does the LI trip function provide?
The fixed thermal magnetic LI (Long-Time, Instantaneous) trip unit provides thermal protection against sustained overloads and magnetic protection against sudden short circuits.
