ABB / General Electric THQMV175E Molded Case Circuit Breaker
- 175A
- 2 Pole
- Plug-On
ABB / General Electric
THQMV175E
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQMV175E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

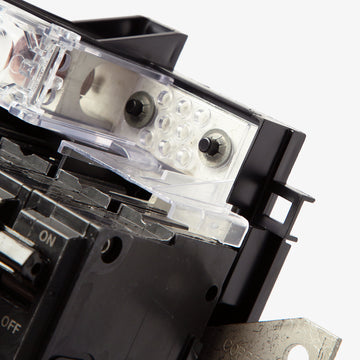

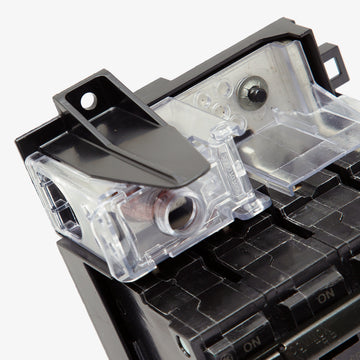

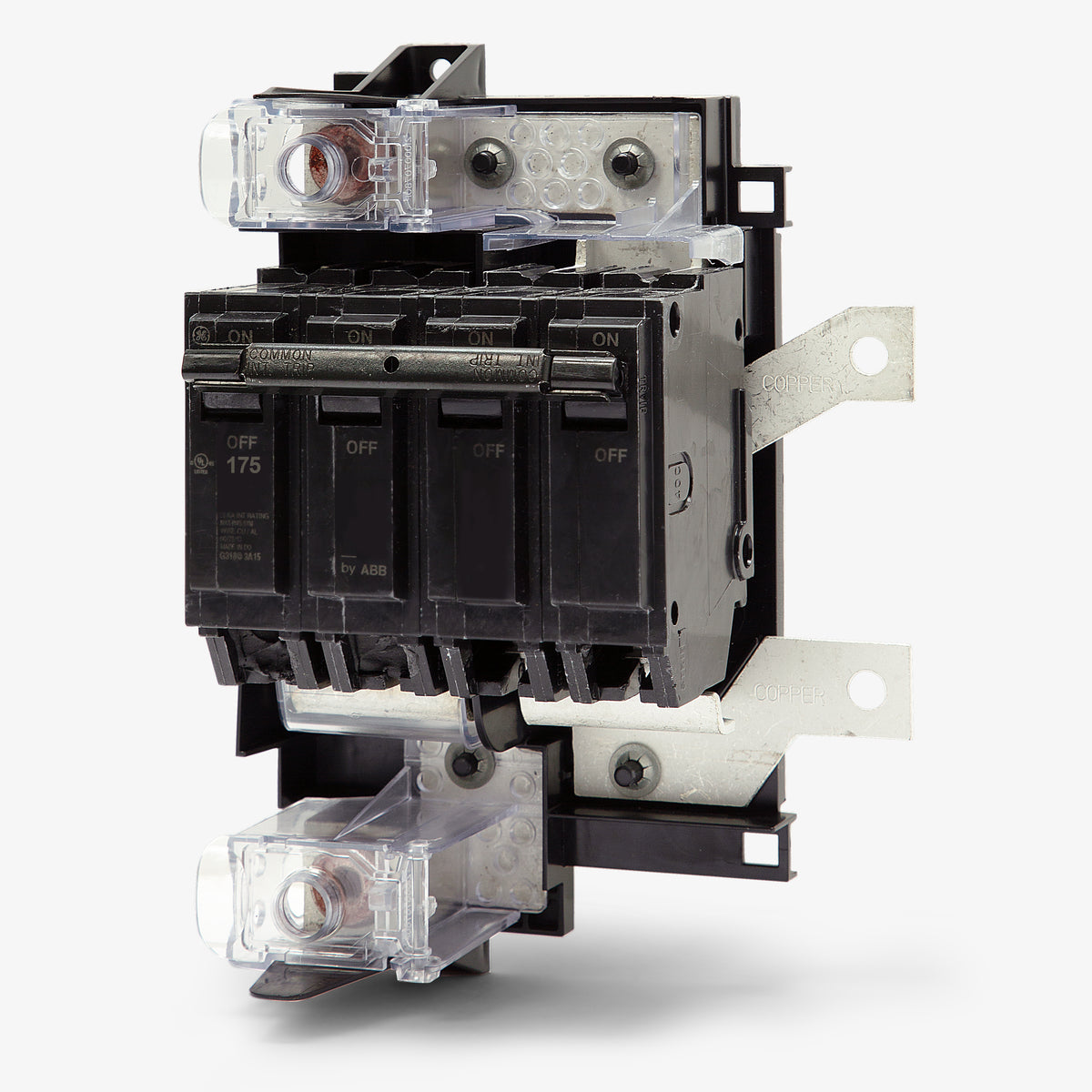

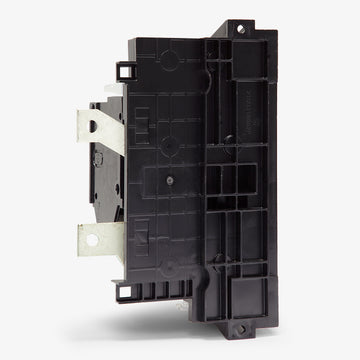

ABB / General Electric THQMV175E - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQMV175D
175A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV200D
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV200E
200A 2 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family, the GE THQMV175E is a 175-amp, 2-pole MCCB. It provides thermal-magnetic protection with fixed long-time and instantaneous trip functions for electrical distribution. This plug-on unit fits 150A to 225A GE PowerMark Gold and ABB ReliaHome load centers. It replaces the older THQMV175D and CB4175H models, coming complete with a mounting base for top-feed installations. Handling 22 kAIC at 240VAC, the breaker features a quick-make/quick-break mechanism and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQMV175E |
| Series | THQMV |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (150A-225A), ABB ReliaHome Load Centers |
| Wire Gauge | 1 AWG - 300 kcmil (Cu), 2/0 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG (Cu), 2/0 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Mounting Base |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Main Breaker, Common Trip, Quick-Make/Quick-Break, High Interrupting Capacity |
Product FAQs
4 answersIs the THQMV175E designed to be used as a branch breaker?
No. This unit is specifically engineered to function as a main breaker for 150A to 225A GE PowerMark Gold and ABB ReliaHome load centers.
Does this main breaker carry a series rating for downstream branch circuits?
Yes. When installed as the main breaker, it establishes a 22kAIC series combination rating for standard 10kAIC GE THQL and THQP branch breakers located in the same panel.
Can I use the THQMV175E to replace a legacy THQMV175 breaker?
Yes. This model is the current direct replacement for the older GE THQMV175 molded case main circuit breaker.
Can this circuit breaker be reverse fed?
Yes. The breaker supports reverse feed configurations, providing flexibility when wiring the load center.
