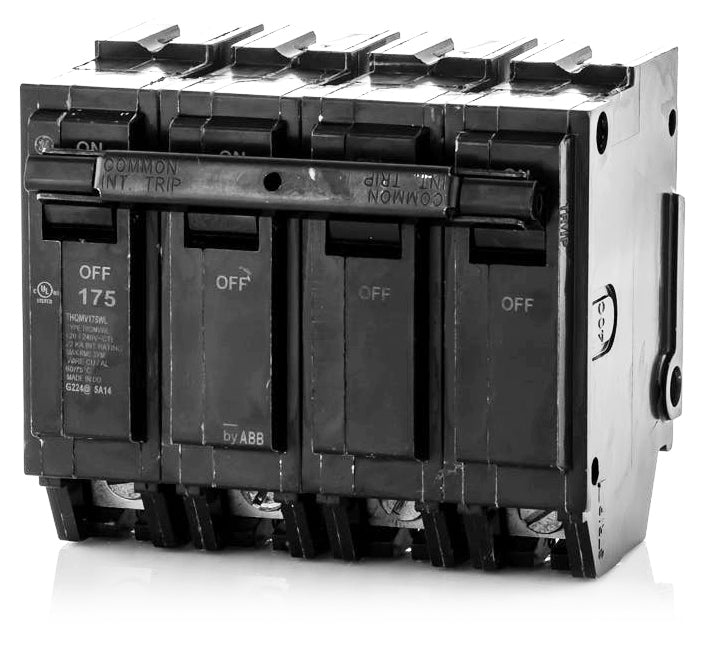

ABB / General Electric THQMV175WL Molded Case Circuit Breaker
- 175A
- 2 Pole
- Plug-On
ABB / General Electric
THQMV175WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQMV175WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQMV175WL - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQMV175D
175A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV200D
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV200E
200A 2 Pole Molded Case Circuit Breaker
Description
Designed for robust power distribution, the GE THQMV175WL is a 175A, 2-pole MCCB. It uses fixed thermal-magnetic technology to deliver dependable long-time and instantaneous protection. It installs into 150A-225A GE PowerMark Gold and ABB ReliaHome load centers. The unit features plug-on mounting and includes a base for top-feed setups. It is replaced by the THQMV175E. Rated 22 kAIC at 240VAC, this breaker ensures superior fault clearing. It is HACR rated and features a common trip mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQMV |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (150A-225A), ABB ReliaHome Load Centers |
| Wire Gauge | 1 AWG - 300 kcmil (Cu), 2/0 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG (Cu), 2/0 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Mounting Base |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Main Breaker, Common Trip, Quick-Make/Quick-Break, High Interrupting Capacity |
Product FAQs
4 answersWhich load centers are compatible with the THQMV175WL main breaker?
This 175A main breaker is designed specifically for use as a main disconnect in GE PowerMark Gold and ABB ReliaHome load centers rated between 150A and 225A.
What does the WL suffix mean in the THQMV175WL catalog number?
In GE and ABB circuit breakers, the WL suffix indicates that the device comes factory-equipped with line and load lugs rated for both copper and aluminum conductors.
What wire sizes are accepted by the lugs on the THQMV175WL?
The box lugs on this breaker accommodate 1 AWG to 300 kcmil copper wire, or 2/0 AWG to 300 kcmil aluminum wire.
Is the THQMV175WL interchangeable with the THQMV175E?
Yes, the THQMV175WL is fully interchangeable with the THQMV175 and the newer THQMV175E main breakers for PowerMark Gold panels.
