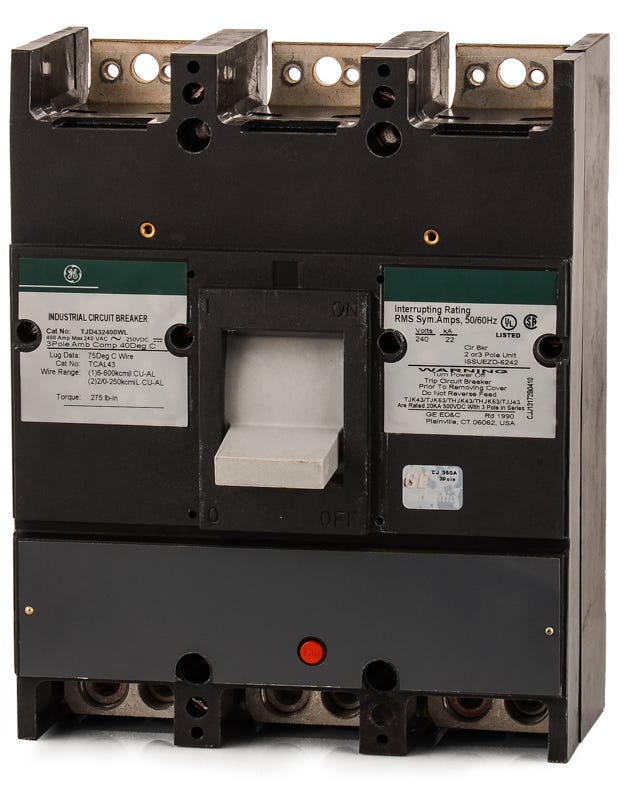

ABB / General Electric TJD432400WL Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
ABB / General Electric
TJD432400WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJD432400WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJD432400WL - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TJD432400WL - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJD432400WL |
| Series | TJD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 20kA @ 250VDC |
| Frame Type | TJD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Switchboards, GE Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL43) |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Quantity
ABB / General Electric TJD432400WL - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJD432400WL-R |
| Series | TJD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 20kA @ 250VDC |
| Frame Type | TJD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Switchboards, GE Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL43) |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Similar Items
ABB / General ElectricTJD432300WL
300A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJD432250WL
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJD432400
400A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty applications, the GE TJD432400WL is a 3-pole, 400A molded case circuit breaker from the legacy J-Frame series. It utilizes a thermal magnetic trip unit with fixed thermal and adjustable magnetic settings for precise LI protection. This unit mount breaker is compatible with GE A-Series and Spectra panelboards. The 'WL' suffix indicates the inclusion of both line and load lugs. Featuring reverse feed capability and a 22kAIC rating, it offers versatile installation options.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJD432400WL |
| Series | TJD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 20kA @ 250VDC |
| Frame Type | TJD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Switchboards, GE Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL43) |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Product FAQs
9 answersWhat does the WL suffix mean in the TJD432400WL catalog number?
The WL suffix indicates that the circuit breaker comes factory-equipped with both line and load lugs for cable connections. Without this suffix, the breaker typically includes load-side lugs only.
What modern ABB circuit breaker replaces the legacy GE TJD432400WL?
The legacy GE J-Frame breakers, including the TJD432400WL, are officially replaced by the ABB Tmax XT5 series molded case circuit breakers.
Can the TJD432400WL replace older TJJ series breakers?
Yes, the TJD432400WL serves as a direct replacement for the older TJJ432400WL models, offering the same physical footprint and interrupting capacity.
Which GE panelboards are compatible with the TJD432400WL?
This J-Frame breaker is designed to install into legacy GE A-Series panelboards, GE Spectra Series panelboards, as well as GE switchboards and motor control centers.
What size wire can the factory-installed lugs on the TJD432400WL accept?
The included lugs accept either one conductor from 6 AWG to 600 kcmil, or two conductors from 2/0 AWG to 250 kcmil. They are rated for both copper and aluminum wire.
Is the trip unit on the TJD432400WL adjustable?
The thermal magnetic trip unit features a fixed thermal setting for long-time overload protection and an adjustable magnetic setting for instantaneous short-circuit protection.
Can the TJD432400WL be used in DC applications?
Yes, this breaker is rated for use in DC systems up to 250VDC, where it provides a 20kA interrupting capacity.
Is the TJD432400WL suitable for reverse feed applications?
Yes, this breaker features a reverse feed capability, allowing for versatile installation options when wiring the line and load connections.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal magnetic trip unit provides Long-Time overload protection and Instantaneous short-circuit protection.
