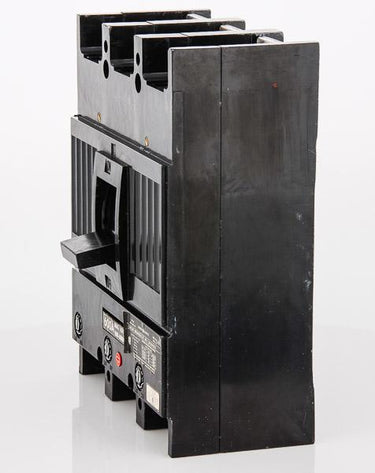

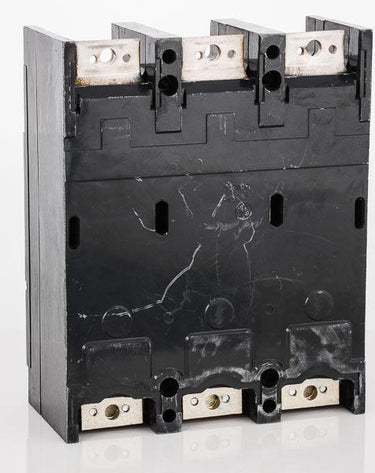

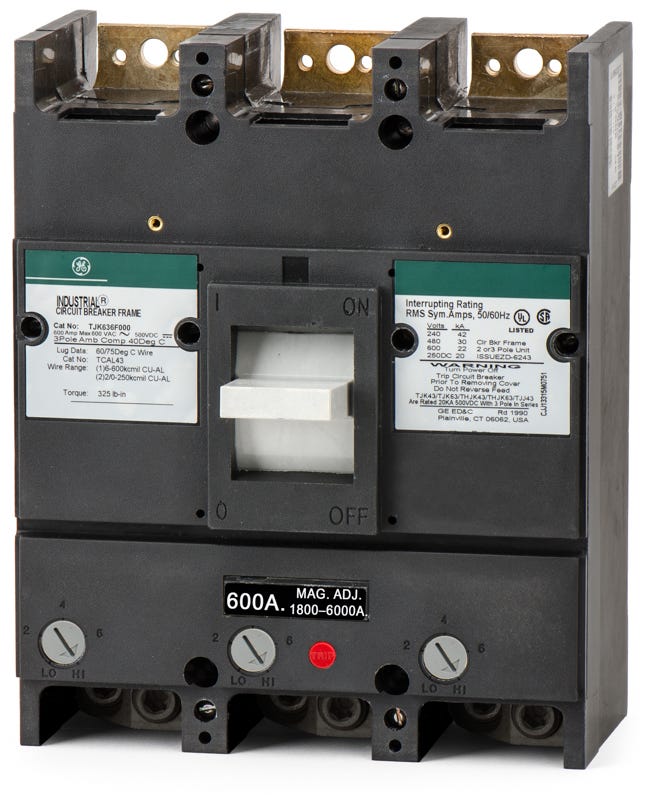

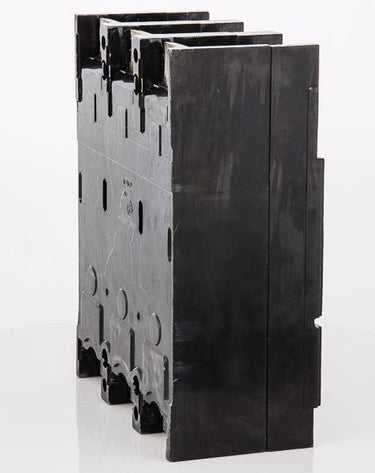

ABB / General Electric TJK636600WL Molded Case Circuit Breaker
- 600A
- 3 Pole
- Unit Mount
ABB / General Electric
TJK636600WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK636600WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK636600WL - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TJK636600WL - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636600WL |
| Series | TJK |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE J600 Enclosures, GE Switchboards, Motor Control Centers |
| Wire Gauge | (2) 4/0 AWG - 350 kcmil (Cu) or (2) 4/0 AWG - 500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated |
Quantity
ABB / General Electric TJK636600WL - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636600WL-R |
| Series | TJK |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE J600 Enclosures, GE Switchboards, Motor Control Centers |
| Wire Gauge | (2) 4/0 AWG - 350 kcmil (Cu) or (2) 4/0 AWG - 500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated |
Similar Items
ABB / General ElectricTJK636500WL
500A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636500
500A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636450
450A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty industrial applications, the GE TJK636600WL is a 3-pole, 600A molded case circuit breaker. This unit-mount device fits seamlessly into GE switchboards, motor control centers, and J600 enclosures. It comes equipped with factory-installed line and load lugs for immediate wiring. Rated for 30 kAIC at 480VAC, the J-frame breaker utilizes a thermal-magnetic trip unit with fixed thermal and adjustable magnetic settings (LI) to ensure reliable system protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636600WL-R |
| Series | TJK |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE J600 Enclosures, GE Switchboards, Motor Control Centers |
| Wire Gauge | (2) 4/0 AWG - 350 kcmil (Cu) or (2) 4/0 AWG - 500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated |
Product FAQs
6 answersWhat is the difference between the TJK636600WL, TJK636F000, and TJK636T600?
The TJK636600WL is a complete, factory-assembled molded case circuit breaker that includes the frame, trip unit, and lugs. The TJK636F000 is the 600A unequipped breaker frame only, and the TJK636T600 is the standalone 600A interchangeable trip unit.
What does the WL suffix indicate on this GE circuit breaker?
The WL suffix designates that the breaker is supplied with factory-installed copper/aluminum line and load lugs. Standard TJK breakers ordered without this suffix ship without lugs, requiring you to source and torque them separately.
What is the direct replacement if my panel requires a higher interrupting capacity?
If your system requires a higher fault rating, the THJK636600WL is the Hi-Break equivalent. It shares the exact same physical dimensions and 600A rating but increases the interrupting capacity to 35kA at 480VAC.
What enclosures and equipment are compatible with this breaker?
The TJK636600WL is designed for unit-mount installations in legacy GE J600 series enclosures, older GE switchboards, and motor control centers (MCCs) provisioned for standard J-frame dimensions.
Which replacement lugs are required for this unit?
This breaker requires GE TCAL63 (or TC063) line and load lug kits. These dual-barrel lugs are required to accommodate the heavy-gauge copper or aluminum parallel conductors necessary for a 600A service.
Can I install a 200A trip unit into this breaker frame?
No. GE TJK series breakers are split into two distinct frame sizes. The 600A frame used here only accepts interchangeable trip units ranging from 250A to 600A. To use a 125A to 400A trip unit, you must use the smaller 400A TJK frame.
