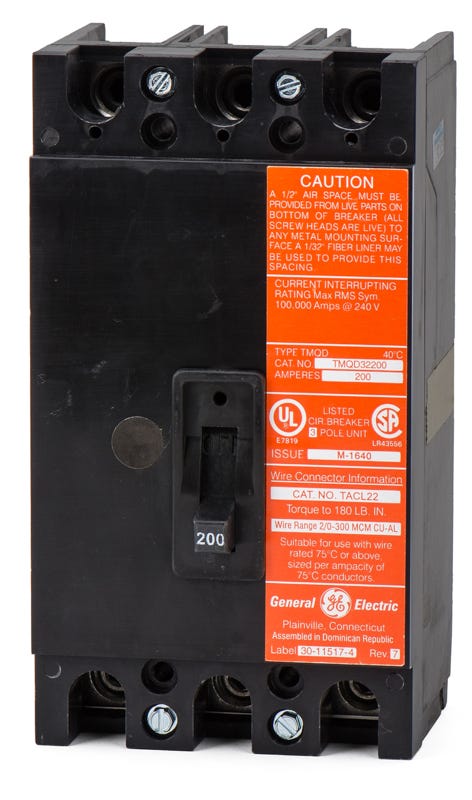

ABB / General Electric TMQD32200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
ABB / General Electric
TMQD32200
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQD32200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQD32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric TMQD32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD32200 |
| Series | TMQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Meter Mod III Meter Stacks, GE A-Series Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Lug Kit (TCAL25) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip, Common Trip, Reverse Feed |
Sold out
Quantity
ABB / General Electric TMQD32200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TMQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Meter Mod III Meter Stacks, GE A-Series Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Lug Kit (TCAL25) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip, Common Trip, Reverse Feed |
Similar Items
ABB / General ElectricTMQD32175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD32150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD32125
125A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial group metering, the GE TMQD32200 is a 3-pole, 200A MCCB. It utilizes thermal-magnetic technology to deliver dependable LI overcurrent protection. Designed with a bolt-on mount, it fits into GE Meter Mod III stacks and A-Series panelboards. It is replaced by the TMQV32200 for servicing older installations. Rated for 100kA at 240VAC, it offers superior defense against short circuits. The unit is HACR rated with a non-interchangeable trip mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD32200 |
| Series | TMQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Meter Mod III Meter Stacks, GE A-Series Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Lug Kit (TCAL25) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip, Common Trip, Reverse Feed |
Product FAQs
4 answersWhat panelboards and meter stacks are compatible with the TMQD32200?
This breaker is designed specifically for installation in GE Meter Mod III meter stacks and GE A-Series panelboards.
What is the difference between the TMQD32200, THQD32200, and TQD32200?
These breakers share the same physical frame and mounting style but have different short circuit interrupting ratings. The TMQD32200 is rated for 100kAIC at 240V, the THQD32200 is rated for 22kAIC, and the TQD32200 is rated for 10kAIC.
How does the TMQD32200 connect to the panel?
This is a bolt-on circuit breaker. The line side bolts directly to the panel bus, while the load side features factory-installed lugs that accept 1 AWG to 300 kcmil copper or aluminum wire.
Can the TMQD32200 be used in reverse feed applications?
Yes, thermal-magnetic molded case circuit breakers in the GE TMQD series are suitable for reverse feeding. This allows for versatile installation when used as a main breaker in compatible panels.
