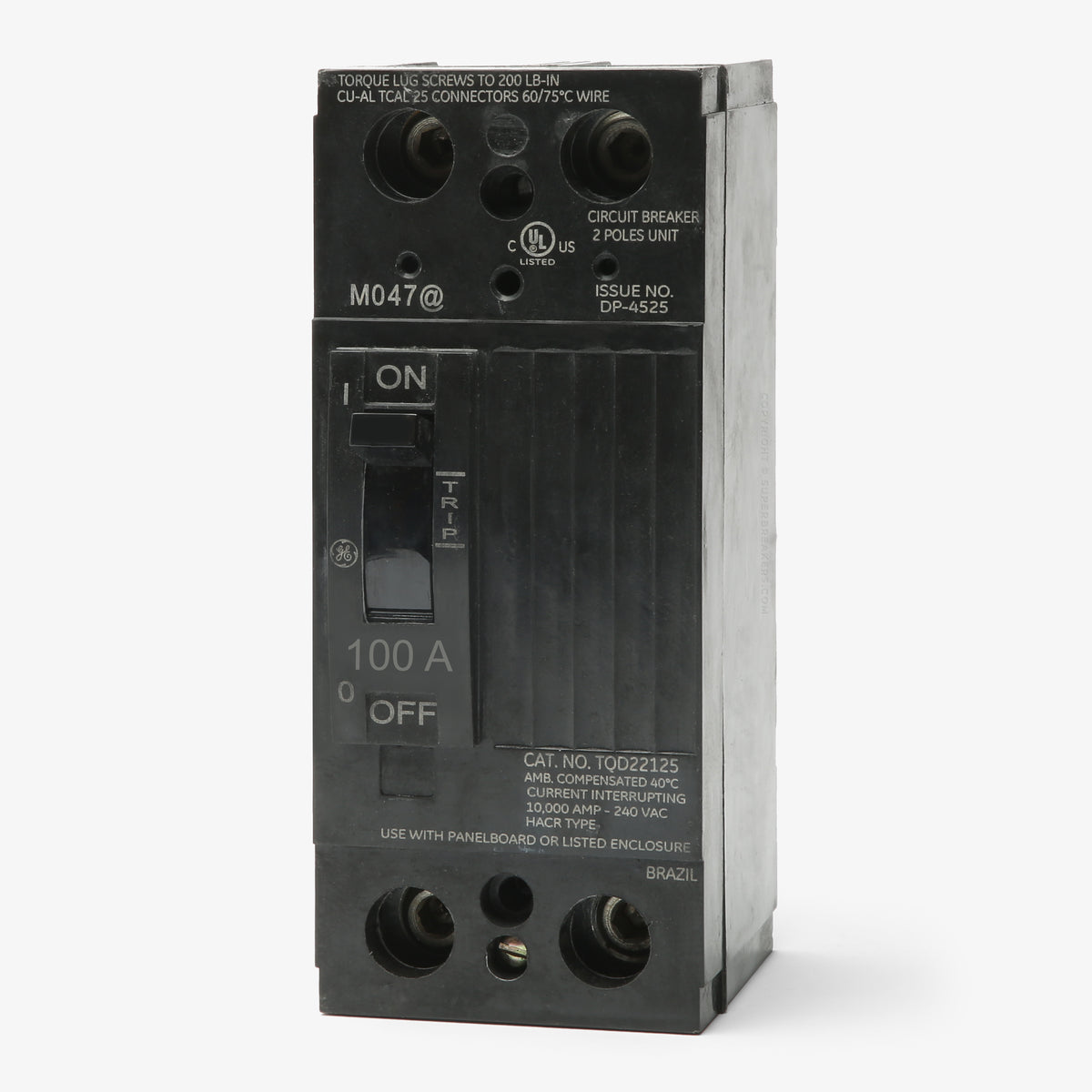

ABB / General Electric TQD22100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
ABB / General Electric
TQD22100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD22100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD22100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD22100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22100 |
| Series | TQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Meter Stacks |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Quantity
ABB / General Electric TQD22100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22100-R |
| Series | TQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Meter Stacks |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Similar Items
ABB / General ElectricTQD22125WL
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22150WL
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22175
175A 2 Pole Molded Case Circuit Breaker
Description
Operating within commercial power systems, this 100-amp two-pole molded case circuit breaker ensures robust overcurrent protection. The component is a core member of the Q-Line family. Engineered for specific infrastructure, it installs into GE A-Series panelboards and meter stacks. When modernizing switchgear, technicians often replace this model with XT3 or Formula A2 frames. Providing a 10kA interrupting rating at 240VAC, the device incorporates a trip-free mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22100 |
| Series | TQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Meter Stacks |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Product FAQs
7 answersWhich panelboards accept the GE TQD22100 circuit breaker?
The TQD22100 is a bolt-on Q-Line breaker designed for installation in GE A-Series panelboards, AQ Series panels, and GE meter stacks.
What is the difference between the GE TQD22100 and THQD22100?
Both are 100A, 2-pole Q-Line circuit breakers, but they have different short-circuit interrupting ratings. The TQD22100 is rated at 10kAIC at 240V, while the THQD22100 provides a higher interrupting capacity of 22kAIC at 240V.

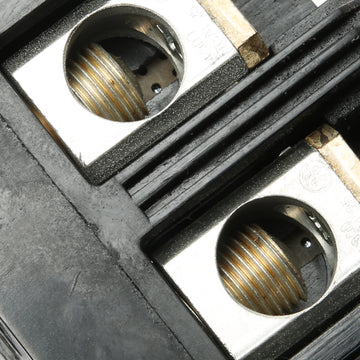

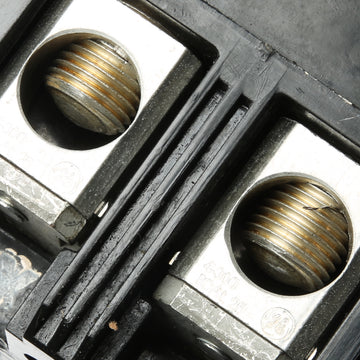

Which lug kit is required for terminating wire on the TQD22100?
This breaker uses the TCAL25 lug kit for load-side terminations. These lugs accept 4 AWG to 300 kcmil copper or aluminum conductors.
What is the modern ABB replacement for the legacy GE TQD series?
Following ABB's acquisition of GE Industrial Solutions, the legacy TQD frame is being phased out. For facility upgrades and retrofits, ABB recommends transitioning to the Formula A2 or Tmax XT3 molded case circuit breakers.
Are the trip settings adjustable on the TQD22100?
No. The TQD22100 features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) protection. The trip curve cannot be adjusted in the field.
Is the TQD22100 suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment.
Does the TQD22100 support reverse feeding?
Yes, this breaker is suitable for reverse feed applications, allowing it to be utilized as either a main or branch breaker depending on your system requirements.
