ABB / General Electric TQD22150WL Molded Case Circuit Breaker
- 150A
- 2 Pole
- Unit Mount
ABB / General Electric
TQD22150WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD22150WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD22150WL - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTQD22175WL
175A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22125WL
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22200WL
200A 2 Pole Molded Case Circuit Breaker
Description
Designed with a unit-mount configuration, the GE TQD22150WL delivers 150 amps of thermal-magnetic protection. The WL catalog suffix indicates that both line and load lugs are factory-installed, accommodating 4 AWG to 300 kcmil conductors. This two-pole MCCB installs into GE A-Series panelboards, Spectra Series switchgear, and standalone enclosures. It can be replaced by ABB Formula A2 frames using retrofit kits. Operating at 120/240VAC with a 10 kAIC capacity, the breaker is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22150WL |
| Series | TQD |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat does the "WL" suffix mean in the TQD22150WL catalog number?

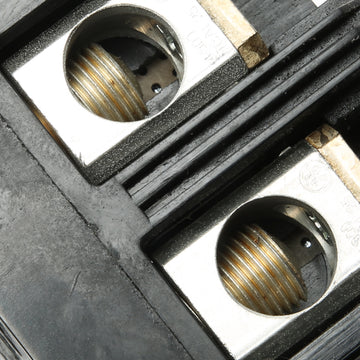

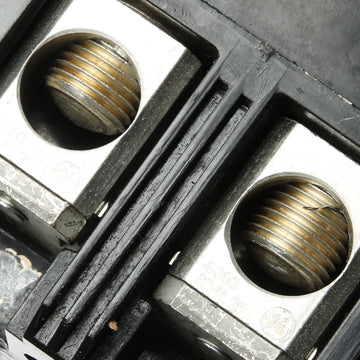

The "WL" suffix indicates that the circuit breaker comes with factory-installed wire lugs on both the line and load sides. These lugs accept 4 AWG to 300 kcmil copper or aluminum conductors.
How is the TQD22150WL mounted in compatible equipment?
It features a unit-mount, feed-thru configuration. It bolts directly to the chassis of GE A-Series panelboards, Spectra Series switchgear, or TQD enclosures, rather than plugging onto a busbar.
Does the TQD22150WL support reverse feeding?
Yes, this breaker is reverse feed capable. This allows it to be wired with the supply connections on either the line or load terminals without affecting its protective functions.
Is there a modern replacement for the legacy GE TQD22150WL?
Yes, the TQD22150WL can be replaced by ABB Formula A2 frame circuit breakers when using the appropriate retrofit kits.
Is the TQD22150WL suitable for HVAC equipment?
Yes, this circuit breaker is HACR rated, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment.
