ABB / General Electric TQD22100WL Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
ABB / General Electric
TQD22100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD22100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD22100WL - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTQD22125WL
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22150WL
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22175
175A 2 Pole Molded Case Circuit Breaker
Description

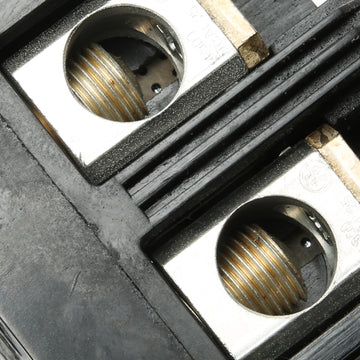

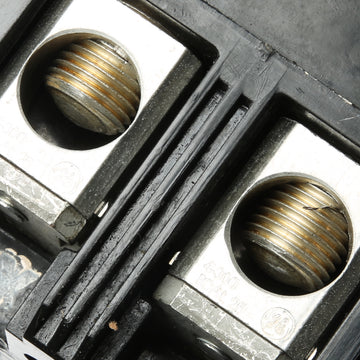

Built for versatile power distribution, the TQD22100WL provides 100A of thermal-magnetic protection for residential, commercial, and industrial facilities. This Q-Line unit-mount breaker features reverse feed capability and a non-interchangeable trip. It installs into GE A-Series panelboards, Spectra Series panels, and dedicated TQD enclosures. The breaker comes standard with TCAL25 line and load lugs accepting 4 AWG to 300 kcmil wire. Delivering a 10kAIC rating, it ensures reliable safety.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22100WL |
| Series | TQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the TQD22100WL circuit breaker?
The TQD22100WL is designed for use in GE A-Series and Spectra Series panelboards, as well as dedicated GE TQD enclosures. It is also commonly installed in GE AQ Series panels.
What does the WL suffix mean in the TQD22100WL catalog number?
The WL suffix indicates that the circuit breaker comes factory assembled with both line and load side lugs for copper or aluminum wire. If line lugs are not required for a specific installation, the breaker is typically ordered without the WL designation.
Can the GE TQD22100WL be reverse fed?
Yes, this thermal magnetic molded case circuit breaker supports reverse feed applications.
Is the TQD22100WL suitable for heating and cooling equipment?
Yes, this breaker is HACR certified, meaning it is approved for use with heating, air conditioning, and refrigeration equipment where required by system specifications and local electrical codes.
Does the TQD22100WL feature an internal common trip?
Yes, it utilizes an internal common trip mechanism that disconnects both poles simultaneously during an overload or short circuit condition to protect connected equipment.
How is the TQD22100WL installed in a panelboard?
It is a unit mount, bolt-on circuit breaker that utilizes a feed-thru connection. The lug-to-lug configuration allows for practical cable-in and cable-out connections in the field.
