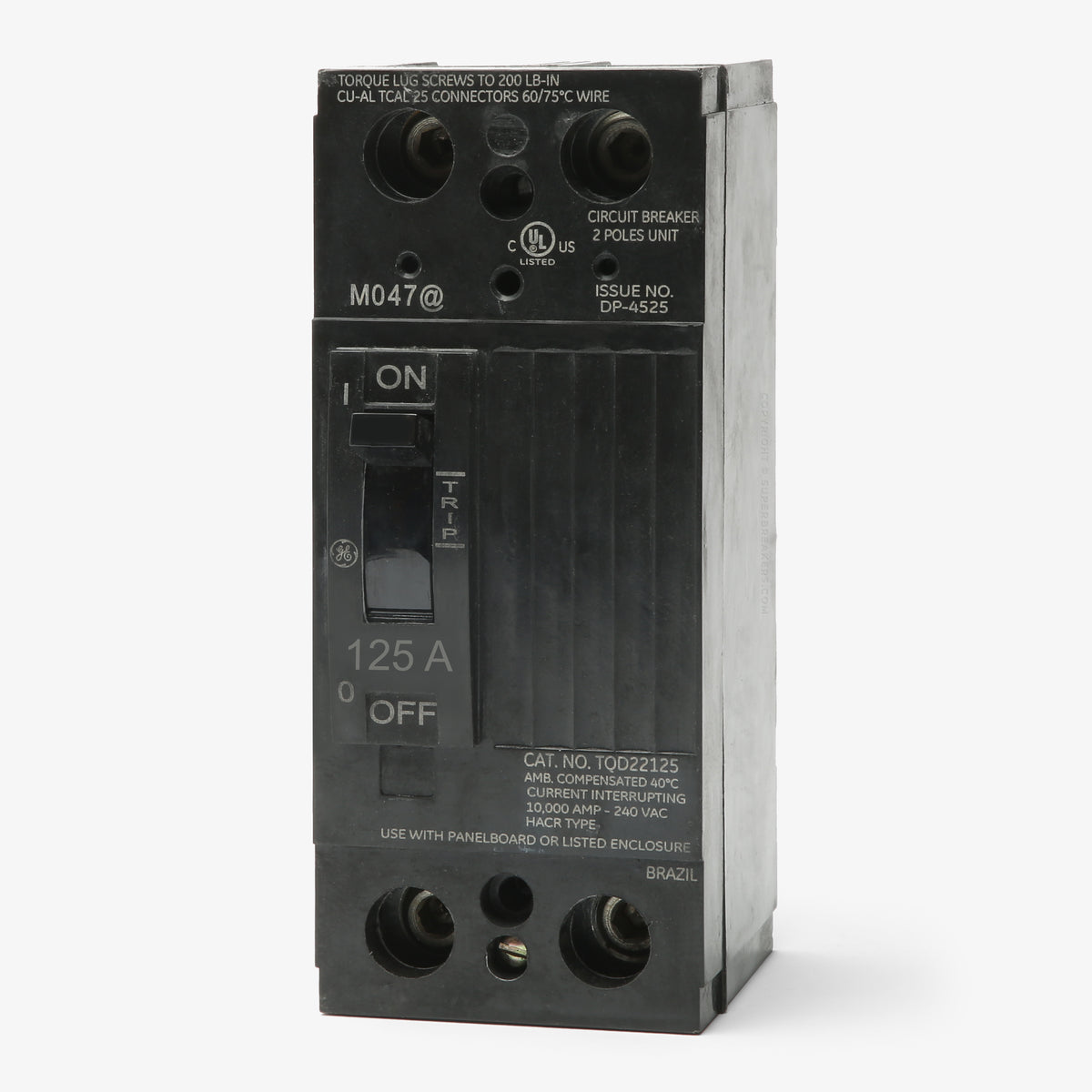

ABB / General Electric TQD22125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
ABB / General Electric
TQD22125
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD22125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD22125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD22125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22125 |
| Series | TQD |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |

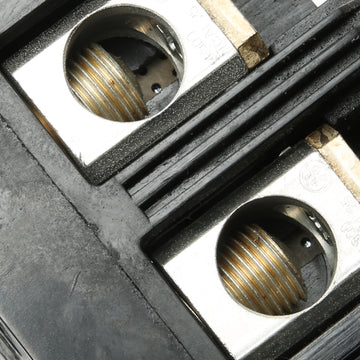

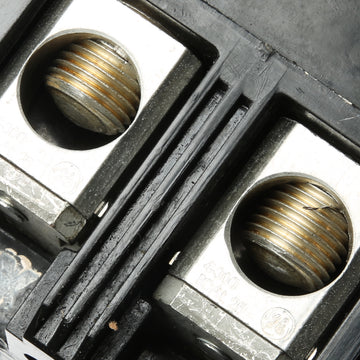

| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TQD22125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22125-R |
| Series | TQD |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTQD22200
200A 2 Pole Molded Case Circuit Breaker

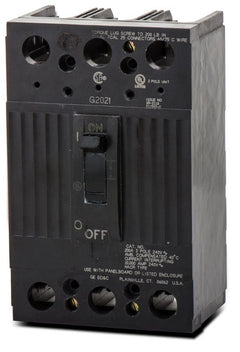

ABB / General ElectricTQD32125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22125WL
125A 2 Pole Molded Case Circuit Breaker
Description
Utilizing a secure bolt-on mounting style, the TQD22125 supplies 125 amps of thermal-magnetic overcurrent defense for commercial and industrial environments. The Q-Line breaker features a fixed LI protection function and reverse feed capability. This model fastens into GE A-Series and Spectra Series panelboards, ensuring a rigid connection that resists vibration. When upgrading older infrastructure, ABB Formula A2 components typically replace this frame. It provides a 10kAIC rating at 240VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22125 |
| Series | TQD |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhich panelboards are compatible with the TQD22125 circuit breaker?
This breaker is designed for bolt-on installation in GE A-Series and Spectra Series panelboards. It is also compatible with GE modular metering equipment and dedicated TQD enclosures.
What is the difference between the TQD22125 and the THQD22125?
Both breakers share the same physical frame and panelboard compatibility. The difference is the interrupting rating. The TQD22125 is rated for 10kAIC at 240VAC, while the THQD22125 is rated for 22kAIC at 240VAC.
Is the TQD22125 suitable for reverse feed applications?
Yes, this breaker is reverse feed capable, allowing it to be used as a main breaker or a sub-feed breaker in compatible panels and enclosures.
Can this breaker be used for HVAC equipment?
Yes, the TQD22125 is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications that require a 125A overcurrent protection device.
How much panel space does the TQD22125 require?
This 2-pole breaker requires two mounting spaces. It measures 1-3/8 inches wide per pole, taking up a total width of 2-3/4 inches in the panelboard.
Will the TQD22125 fit in a standard GE PowerMark Gold residential load center?
No, the TQD series is a bolt-on commercial breaker. It is not compatible with standard plug-on residential load centers, which typically require THQL or THHQL series breakers for branch circuits.
Which filler plates are required for unused spaces next to this breaker?
When installed in GE A-Series panelboards, you must use 1-3/8 inch A-Series filler plates to cover any empty spaces and maintain panel safety.
Does the TQD22125 require a separate mounting hardware kit?
Depending on the specific panelboard or enclosure, a separate mounting hardware kit (such as the ASPTQD3P for panelboards or LCHDKIT for load centers) may be required to properly secure the breaker.
