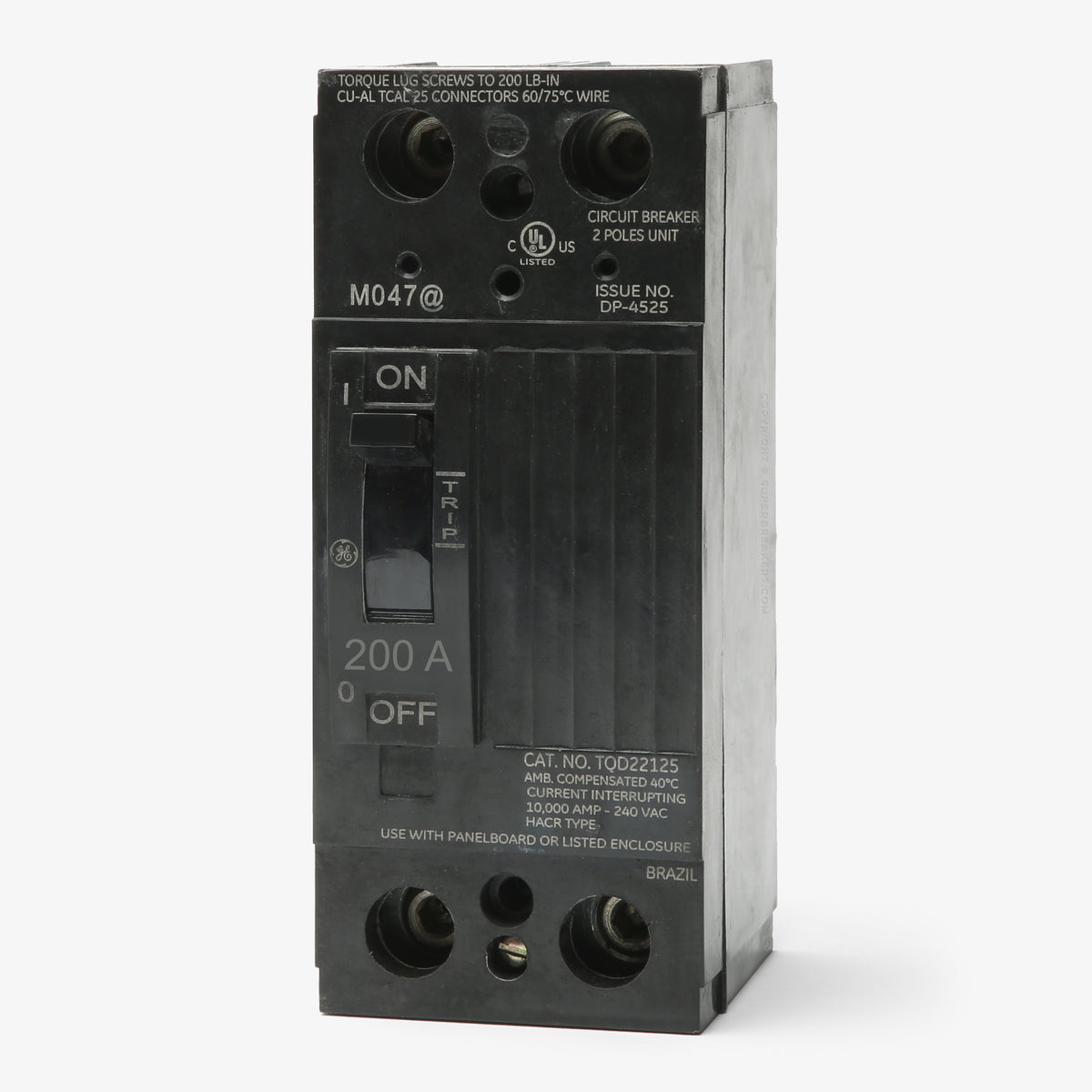

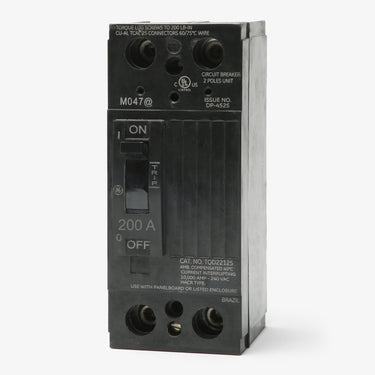

ABB / General Electric TQD22200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
ABB / General Electric
TQD22200
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD22200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD22200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD22200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22200 |
| Series | TQD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | TQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TQD22200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22200-R |
| Series | TQD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | TQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTQD22125
125A 2 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
ABB / General ElectricTQD22200WL
200A 2 Pole Molded Case Circuit Breaker
Description
Part of GE's Q-Line family, the TQD22200 is a 2-pole molded case circuit breaker designed for robust power distribution. It delivers 200 amps of continuous current handling with a standard interrupting capacity of 10kA at 240VAC. This bolt-on breaker installs into GE A-Series and Spectra Series panelboards, as well as dedicated TQD enclosures. It accommodates 1 AWG to 300 kcmil wiring. Built for versatility, the breaker includes common trip functionality and reverse feed capability.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22200 |
| Series | TQD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | TQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
9 answersWhat panelboards accept the GE TQD22200 circuit breaker?
The TQD22200 [1.1.1] is a bolt-on molded case circuit breaker designed for use in GE A-Series and Spectra Series panelboards. It is also compatible with GE TQD enclosures, such as the TQD225R or TQD225NR, for standalone or service applications.
Can I use a THQD22200 as a direct replacement for the TQD22200?
The THQD22200 and TQD22200 share the same physical footprint and bolt-on mounting configuration, but they have different short-circuit interrupting ratings. The THQD version carries a higher 22kAIC rating compared to the standard 10kAIC rating of the TQD22200. Check your system fault current requirements before substituting.

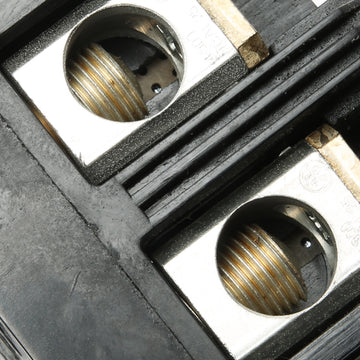

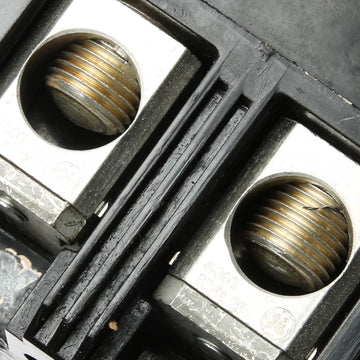

What wire sizes and materials are supported by the TQD22200 lugs?
The factory-installed lugs on this breaker are rated for 1 AWG to 300 kcmil conductors. They accept both copper (Cu) and aluminum (Al) wire.
Will my new TQD22200 breaker have an ABB or General Electric label?
Following ABB's acquisition of GE Industrial Solutions, this breaker may ship with either ABB or GE branding. The internal components, bolt-on form factor, and certifications remain identical regardless of the logo on the front label.
Is this breaker rated for use in HVAC or refrigeration equipment?
Yes, the TQD22200 is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment applications that require approved overcurrent protection.
Does the TQD22200 provide ground fault or arc fault protection?
No, this model is a standard thermal-magnetic circuit breaker that provides long-time and instantaneous trip functions for overload and short-circuit protection. It does not contain GFCI or AFCI circuitry.
Can I install this breaker in a standard GE residential Q-Line load center?
No, this is a bolt-on TQD frame circuit breaker, not a plug-on THQL or THQP breaker. It is too large and has the wrong mounting mechanism for typical residential plug-on load centers. It requires commercial panelboards or dedicated enclosures designed for bolt-on TQD frames.
How does the trip mechanism function during an overload?
The breaker utilizes an internal common trip mechanism. If an overload or short circuit occurs on either phase, the mechanism ensures both poles open simultaneously to completely disconnect power to the connected load.
What is the difference between the TQD22200 and TQD22200WL part numbers?
The WL suffix in GE catalog numbers stands for "With Lugs". Since this model comes with load-side lugs factory installed, the TQD22200 and TQD22200WL catalog numbers represent the exact same breaker configuration.
