ABB / General Electric TQD22150 Molded Case Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
ABB / General Electric
TQD22150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD22150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD22150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD22150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22150 |
| Series | TQD |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TQD22150 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22150-R |
| Series | TQD |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTQD22200
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD32150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22150WL
150A 2 Pole Molded Case Circuit Breaker
Description
Rated for 150 amps of continuous current, this thermal-magnetic MCCB safeguards commercial electrical systems against damaging overloads and short circuits. It fastens easily into GE Spectra Series, A-Series panelboards, and compatible TQD enclosures using a standard bolt-on connection. This 10kAIC rated component features reverse feed capability and a non-interchangeable trip unit. Facilities looking to modernize can transition to the ABB Tmax XT3 series using the appropriate retrofit kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22150 |
| Series | TQD |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards and enclosures accept the TQD22150 breaker?
This Q-Line molded case circuit breaker is designed for bolt-on installation in GE A-Series panelboards, GE Spectra Series panelboards, and standalone GE TQD enclosures.
What wire sizes are permitted for the TQD22150 terminals?

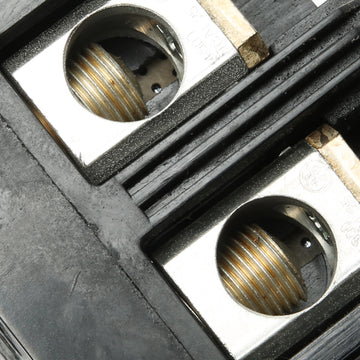

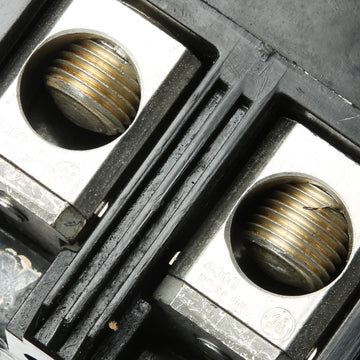

The factory-installed lugs accept 1 AWG through 300 kcmil conductors and are rated for both copper (Cu) and aluminum (Al) wiring.
Is this breaker rated for heating and cooling equipment?
Yes, it carries a HACR rating, making it suitable for heating, air conditioning, and refrigeration circuits in commercial and industrial electrical distribution systems.
Can the TQD22150 be backfed or reverse-fed in a panel?
Yes, this thermal magnetic breaker does not have line or load restrictions, making it suitable for reverse-feed applications such as main breaker backfeeding or generator inputs.
Does this breaker feature a common trip mechanism?
Yes, it is built with an internal common trip. A fault condition or overload on one pole will automatically open both poles simultaneously to ensure the entire circuit is safely de-energized.
Why is this breaker listed under both ABB and General Electric brands?
Following ABB's acquisition of GE Industrial Solutions, current production of the TQD22150 may feature ABB branding. Both versions share the exact same fit, form, and function for Q-Line applications.
