ABB / General Electric TQD22175WL Molded Case Circuit Breaker
- 175A
- 2 Pole
- Unit Mount
ABB / General Electric
TQD22175WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD22175WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD22175WL - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD22175WL - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22175WL |
| Series | TQD |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Unit Mount |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Sold out
Quantity
ABB / General Electric TQD22175WL - 175A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22175WL-R |
| Series | TQD |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Unit Mount |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Similar Items
ABB / General ElectricTQD22200WL
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22150WL
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22225
225A 2 Pole Molded Case Circuit Breaker
Description
Built for standalone enclosures and feed-thru applications, the GE TQD22175WL is a 2-pole, 175A molded case circuit breaker from the Q-Line family. Unlike standard panel-mounted versions, the "WL" designation indicates it includes both line and load lugs for straightforward cable-to-cable unit mounting. It delivers 10kAIC interrupting capacity at 120/240VAC and utilizes a thermal magnetic trip unit for precise LI protection. It is superseded by the XT3 and Formula A2 series.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22175WL |
| Series | TQD |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Unit Mount |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Product FAQs
7 answersWhat does the "WL" suffix mean on the TQD22175WL circuit breaker?
The "WL" suffix indicates that the breaker comes factory-equipped with both line and load side wire lugs. If your application does not require lugs, you would use the standard TQD22175 model.
Which panelboards and enclosures are compatible with the TQD22175WL?
This unit-mount breaker is designed for installation in GE A-Series panelboards, Spectra Series switchboards, and standalone TQD circuit breaker enclosures.
What are the modern ABB replacements for the legacy GE TQD22175WL?
The GE TQD series can often be upgraded or replaced by ABB Tmax XT3 or Formula A2 series molded case circuit breakers when using the appropriate retrofit kits.

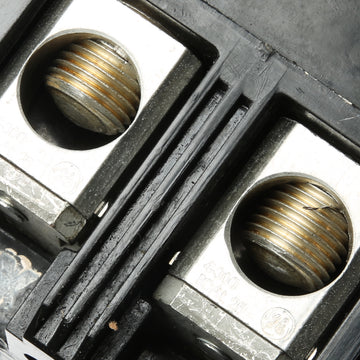

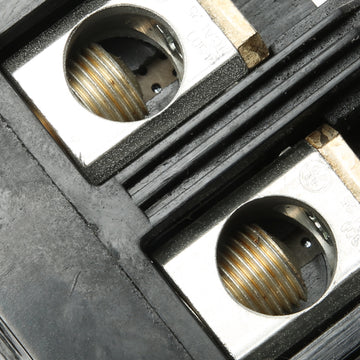

Are the lugs on the TQD22175WL rated for both copper and aluminum wire?
Yes, the factory-installed feed-thru lugs are dual-rated for both copper and aluminum conductors ranging from 1 AWG to 300 kcmil.
What type of protection does the LI trip function provide on the TQD22175WL?
The LI designation indicates fixed thermal and fixed magnetic protection. The long-time (L) function protects against sustained overloads, while the instantaneous (I) function provides immediate tripping during severe short circuits.
Does the TQD22175WL feature a trip-free mechanism?
Yes, it utilizes a trip-free design. This ensures the breaker will automatically trip and disconnect the circuit during a fault, even if the handle is physically held in the ON position.
How is the TQD22175WL mounted in an electrical panel?
This is a unit-mount, feed-thru circuit breaker. It bolts directly to the chassis or mounting pan of compatible enclosures and panelboards rather than plugging onto a busbar.
