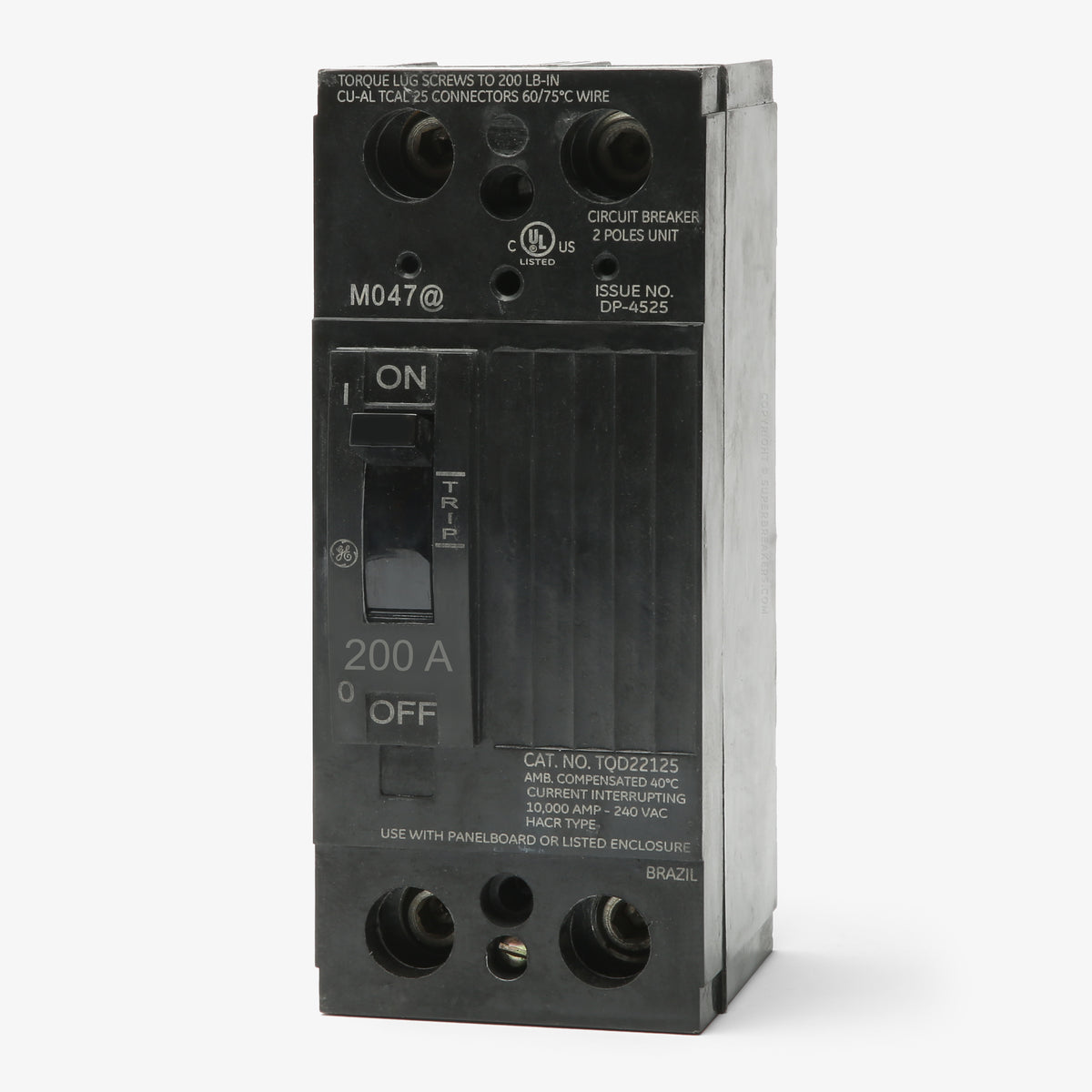

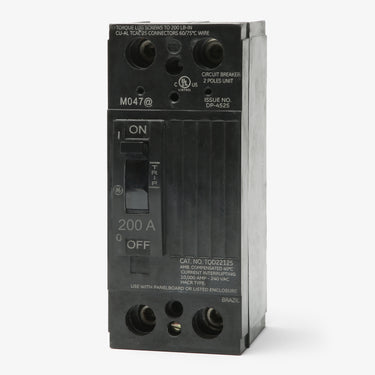

ABB / General Electric TQD22200WL Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
ABB / General Electric
TQD22200WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD22200WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD22200WL - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD22200WL - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22200WL |
| Series | TQD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TQD22200WL - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22200WL-R |
| Series | TQD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTQD22225WL
225A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22175
175A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22175WL
175A 2 Pole Molded Case Circuit Breaker
Description
The TQD22200WL is a 2-pole, 200A molded case circuit breaker from GE's Q-Line series. It provides reliable thermal-magnetic (LI) protection for commercial systems. The "WL" suffix indicates both line and load lugs are included. Installs into GE A-Series panelboards, Spectra Series switchboards, and TQD enclosures. It serves as a replacement for legacy setups and can be upgraded to ABB Tmax XT3 models using retrofit kits. Rated 10 kAIC at 240V, it is HACR certified and supports reverse feed.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22200WL |
| Series | TQD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards and enclosures are compatible with the TQD22200WL?
This unit-mount circuit breaker installs directly into GE A-Series panelboards, GE Spectra Series panelboards, and standalone GE TQD enclosures, such as the TQD200NRE.
What does the "WL" suffix mean on the TQD22200WL catalog number?

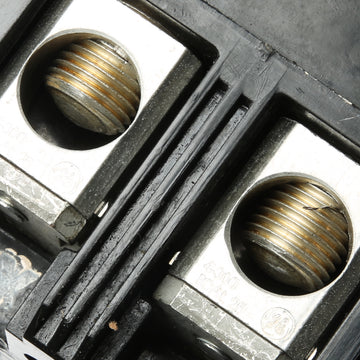

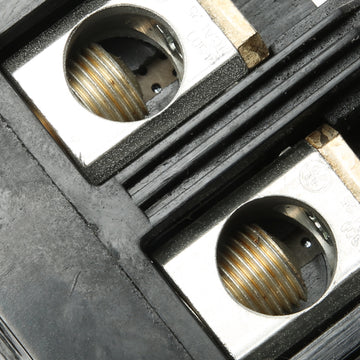

The "WL" suffix indicates that the breaker is shipped with both line and load lugs factory-installed. Breakers ordered without this suffix may only include load lugs and require separate line lug kits.
What is the difference between the TQD22200WL and the THQD22200WL?
The primary difference is the short-circuit interrupting rating. The TQD22200WL is rated for 10 kAIC at 120/240VAC, whereas the THQD22200WL is the high-interrupting version rated for 22 kAIC. Both breakers share the same physical dimensions and install into the same equipment.
Is the TQD22200WL suitable for reverse feed applications?
Yes. This breaker does not have internal line or load orientation restrictions and is certified for reverse feed installations, making it suitable for back-fed main breaker applications.
Is the TQD22200WL rated for HVAC equipment?
Yes, this breaker carries an HACR rating, meaning it is recognized as suitable for use with heating, air conditioning, and refrigeration equipment branch circuits.
Why might this breaker be labeled under the ABB brand instead of General Electric?
ABB acquired GE Industrial Solutions, which includes the GE Q-Line circuit breaker family. Newly manufactured stock may carry the ABB logo, but it is identical in form, fit, and function to legacy GE-branded TQD breakers.
