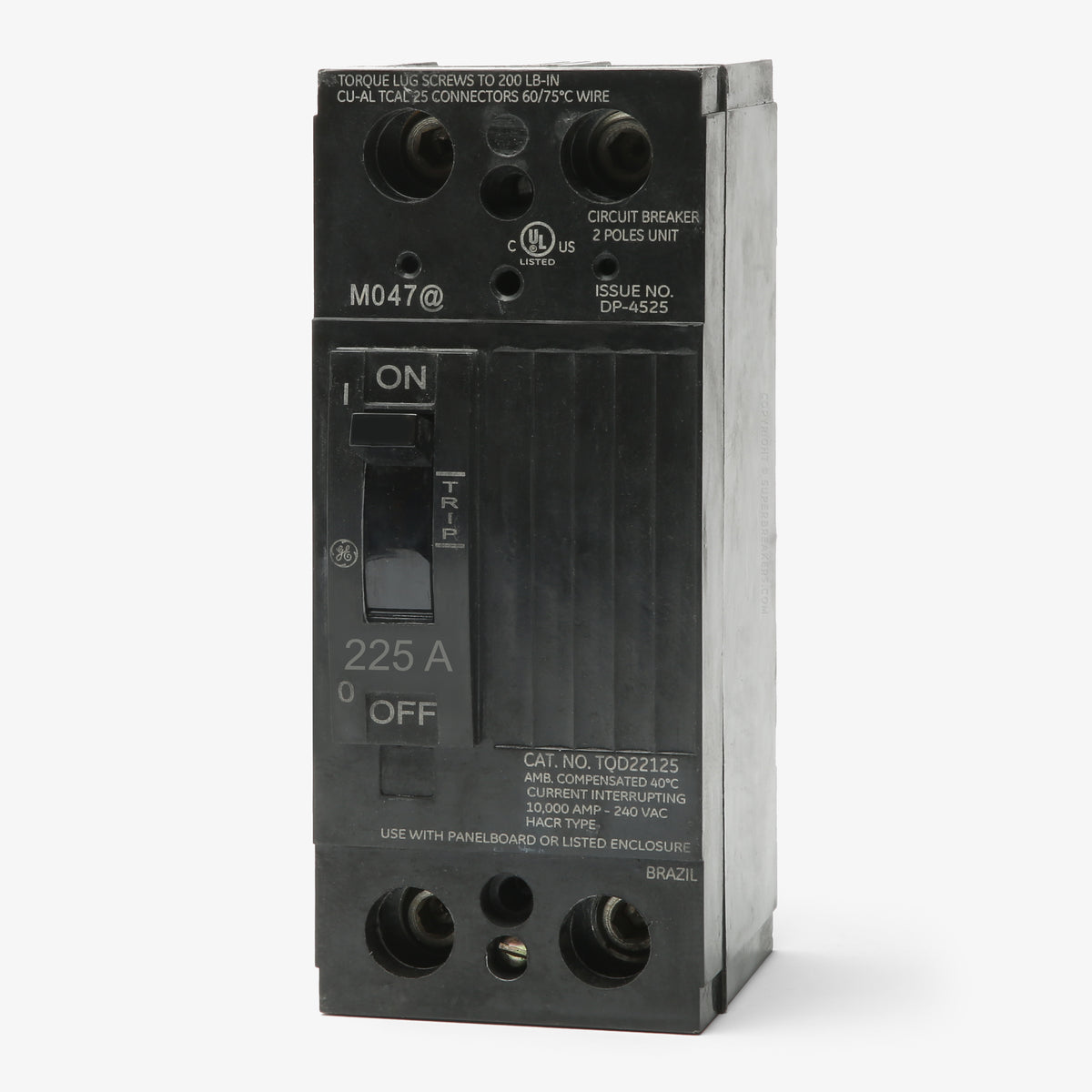

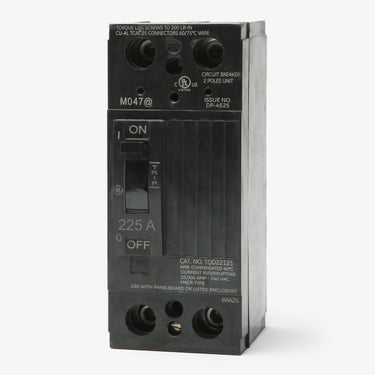

ABB / General Electric TQD22225 Molded Case Circuit Breaker
- 225A
- 2 Pole
- Unit Mount
ABB / General Electric
TQD22225
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD22225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD22225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD22225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22225 |
| Series | TQD |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | TQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Meter Stacks, GE Spectra Series Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
ABB / General Electric TQD22225 - 225A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22225-R |
| Series | TQD |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | TQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Meter Stacks, GE Spectra Series Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed |
Similar Items
ABB / General ElectricTQD22200WL
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22175
175A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22175WL
175A 2 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty commercial applications, the GE TQD22225 is a 2-pole, 225A molded case circuit breaker from the Q-Line family. It utilizes a fixed thermal-magnetic trip mechanism to deliver precise LI fault protection. This configuration includes load-side lugs for standard bus connection. This breaker mounts into GE A-Series panelboards, Spectra Series switchboards, and compatible meter stacks. Operating at 120/240VAC with a 10 kAIC rating, it is HACR certified for HVAC loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD22225 |
| Series | TQD |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | TQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Meter Stacks, GE Spectra Series Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersWhich panelboards are compatible with the TQD22225 circuit breaker?
This TQD-frame breaker is designed for bolt-on installation in GE A-Series panelboards, GE Spectra Series panelboards, and compatible GE meter stacks.
What type of wire connections does the TQD22225 support?

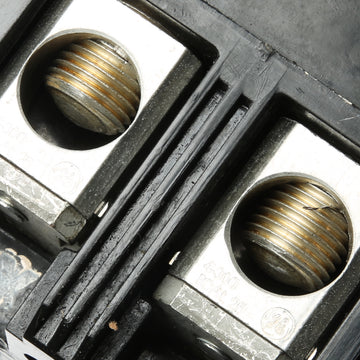

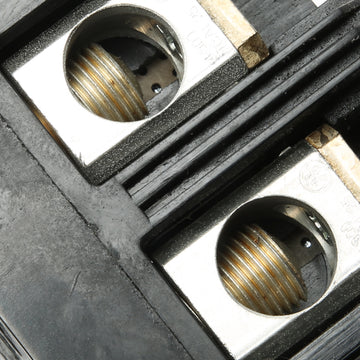

The line side utilizes a bolt-on connection for the panel bus, while the load side includes lugs that accept either copper or aluminum (Cu/Al) conductors ranging from 1 AWG to 300 kcmil.
Is the TQD22225 suitable for use with heating and air conditioning equipment?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration motor loads.
Does the TQD22225 support reverse feeding?
Yes, GE TQD frame circuit breakers feature reverse feed capability, allowing them to be used as main breakers where back-feeding is required by the application.
Can the trip settings on the TQD22225 be adjusted?
No, this breaker features a non-interchangeable, fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) trip settings cannot be adjusted in the field.
What is the difference between the TQD22225 and the TQD22225WL?
The WL suffix indicates that the breaker includes factory-installed wire lugs on both the line and load sides for feed-thru applications. The standard TQD22225 is designed for a bolt-on bus connection on the line side.
Can I install this breaker in a standalone enclosure?
Yes, the TQD22225 can be installed in dedicated GE TQD-frame enclosures, such as the NEMA 1 rated TQD225F flush-mount enclosure, for standalone power distribution.
