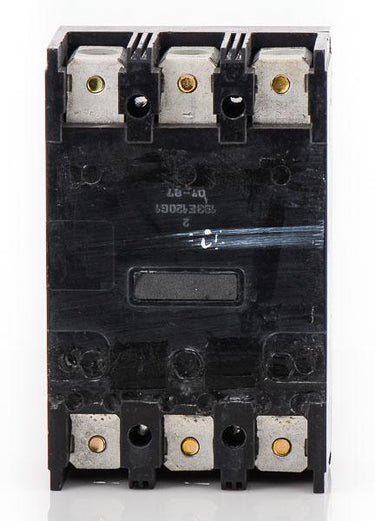

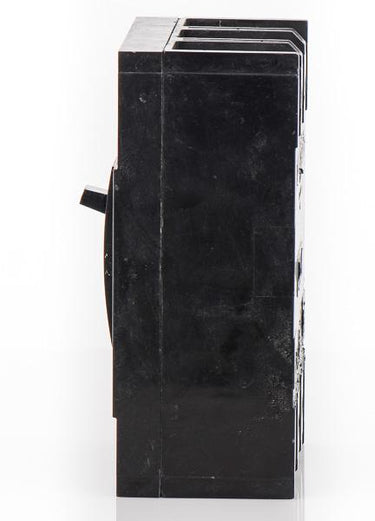

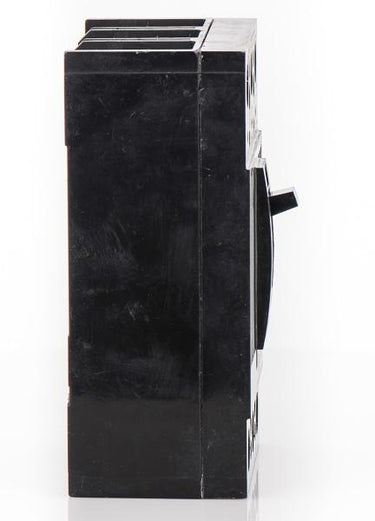

ABB / General Electric TQD32100WL Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
ABB / General Electric
TQD32100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD32100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD32100WL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD32100WL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TQD32100WL - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTQD32150WL
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD32150ST1
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD32175WL
175A 3 Pole Molded Case Circuit Breaker
Description
Built for versatile power distribution, the GE TQD32100WL is a 3-pole, 100A molded case circuit breaker featuring a unit mount, feed-thru design with line and load lugs. It mounts into GE TQD enclosures and Spectra Series panels. It substitutes the THQD32100WL and is replaced by ABB Formula A1 or Tmax XT1 frames, which require retrofit kits. Delivering 10kAIC at 240VAC, it employs fixed thermal-magnetic trip units for reliable LI protection and supports reverse feed configurations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat does the "WL" suffix indicate in the TQD32100WL catalog number?
The "WL" suffix indicates that the circuit breaker is supplied complete with both line and load lugs installed from the factory. Breakers without the "WL" suffix typically omit the line lugs for applications where the line side bolts directly to a panelboard bus.
Which panelboards and enclosures are compatible with the TQD32100WL circuit breaker?
This unit mount breaker is designed for installation in GE A-Series panelboards, GE Spectra Series panelboards, and dedicated GE TQD enclosures.
What type of lugs are included and what is their wire capacity?
The TQD32100WL includes factory-installed TCAL25 line and load lugs. These lugs accept copper or aluminum conductors ranging from 4 AWG to 300 kcmil.
Can this breaker be used in reverse feed applications?
Yes, the TQD32100WL is suitable for reverse feed configurations, allowing it to be back-fed in compatible panelboards.
What modern ABB frames can replace the TQD32100WL if a direct replacement is unavailable?
The TQD32100WL can be replaced by ABB Formula A1 or Tmax XT1 frames. However, these modern alternatives will require specific retrofit kits for proper installation in legacy GE panels.
Are the trip settings adjustable on the TQD32100WL?
No, this breaker features a non-interchangeable thermal magnetic trip unit with fixed settings for both long-time and instantaneous protection.
Is the TQD32100WL suitable for HVAC applications?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment motor loads.
