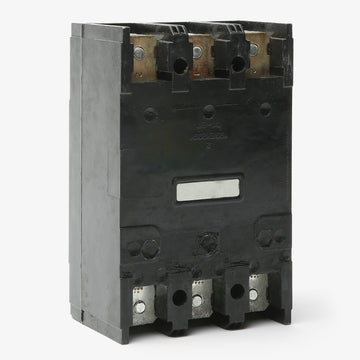

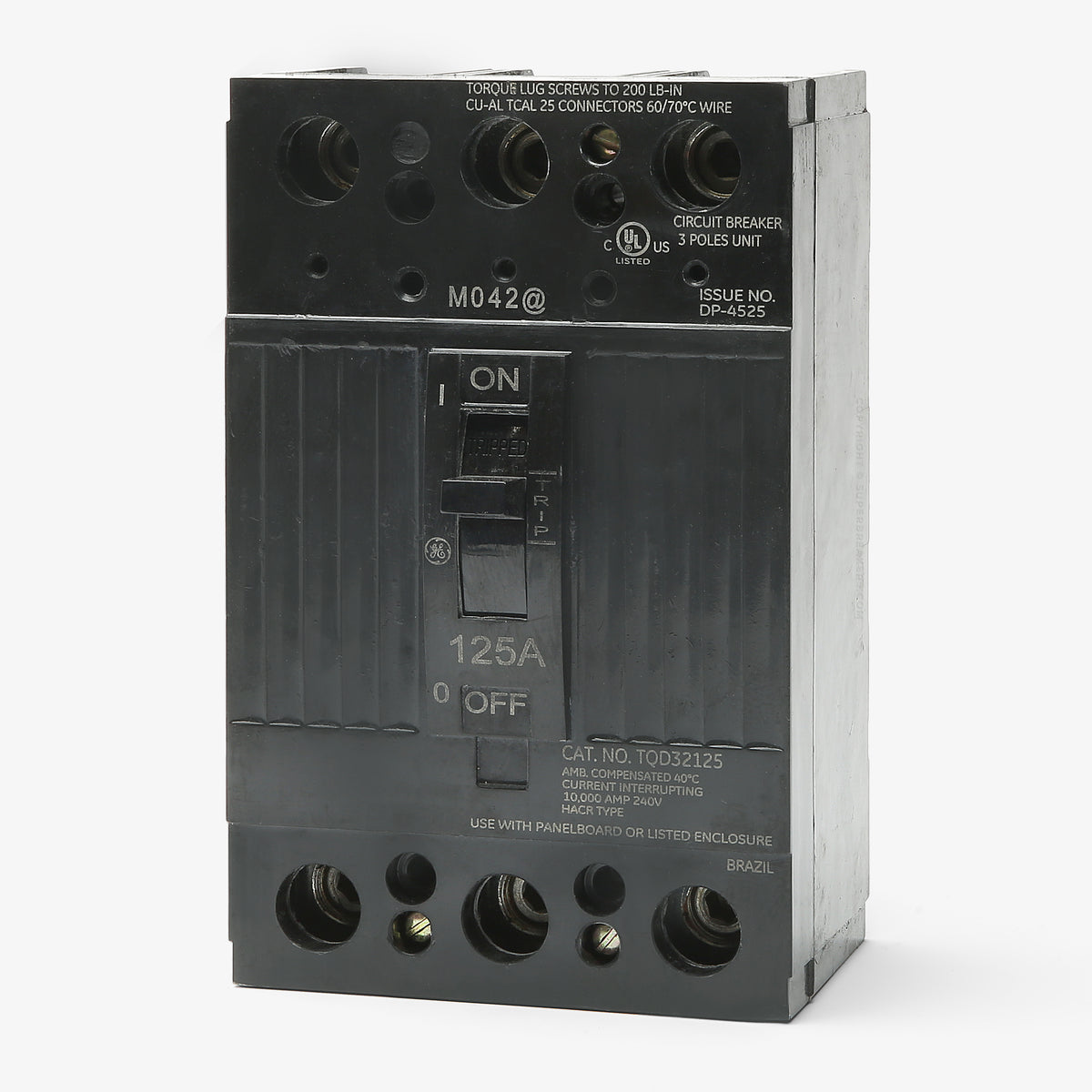

ABB / General Electric TQD32125WL Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
ABB / General Electric
TQD32125WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD32125WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD32125WL - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD32125WL - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32125WL |
| Series | TQD |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL25) |
| Standards | HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TQD32125WL - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32125WL-R |
| Series | TQD |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL25) |
| Standards | HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTQD32150ST1
150A 3 Pole Molded Case Circuit Breaker

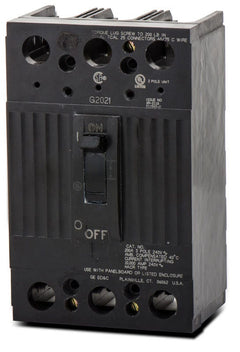

ABB / General ElectricTQD32100WL
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD32175WL
175A 3 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family, this 125A three-pole breaker delivers reliable long-time and instantaneous trip functions for commercial systems. This unit mount configuration installs into GE A-Series panelboards, Spectra Series panelboards, and dedicated TQD enclosures. For modern upgrades, it is replaced by ABB Formula A2 or Tmax XT3 breakers using a retrofit kit. Featuring a 10kA interrupting capacity at 240VAC, it includes factory-installed line and load lugs and carries an HACR rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32125WL |
| Series | TQD |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL25) |
| Standards | HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhy might the TQD32125WL breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, TQD series breakers may feature either ABB or GE branding depending on the manufacturing date. The breakers are identical in physical dimensions, fit, and electrical function.
What does the WL suffix indicate on the TQD32125WL catalog number?

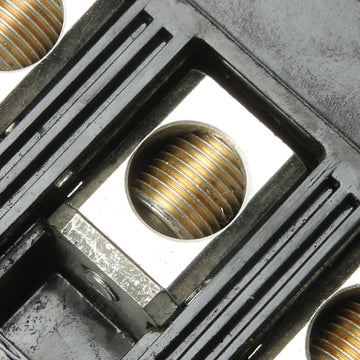

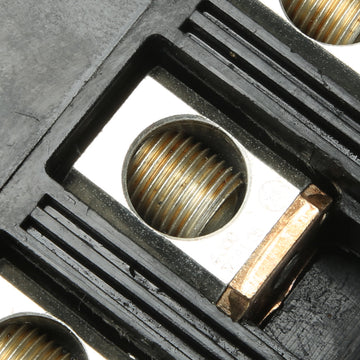

The WL suffix indicates that the circuit breaker includes factory-installed line and load lugs. These lugs are compatible with both copper and aluminum conductors.
Is the TQD32125WL circuit breaker HACR rated?
Yes, this breaker carries an HACR rating, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Can the TQD32125WL be used in reverse feed applications?
Yes, this thermal-magnetic molded case circuit breaker is suitable for reverse feed installations, providing additional wiring flexibility.
Which panelboards and enclosures are compatible with the TQD32125WL?
This unit mount breaker is designed for installation in GE A-Series panelboards, GE Spectra Series panelboards, and dedicated GE TQD enclosures.
Does the TQD32125WL feature an interchangeable trip unit?
No, this breaker features a fixed, non-interchangeable thermal-magnetic trip unit with long-time and instantaneous trip functions.
