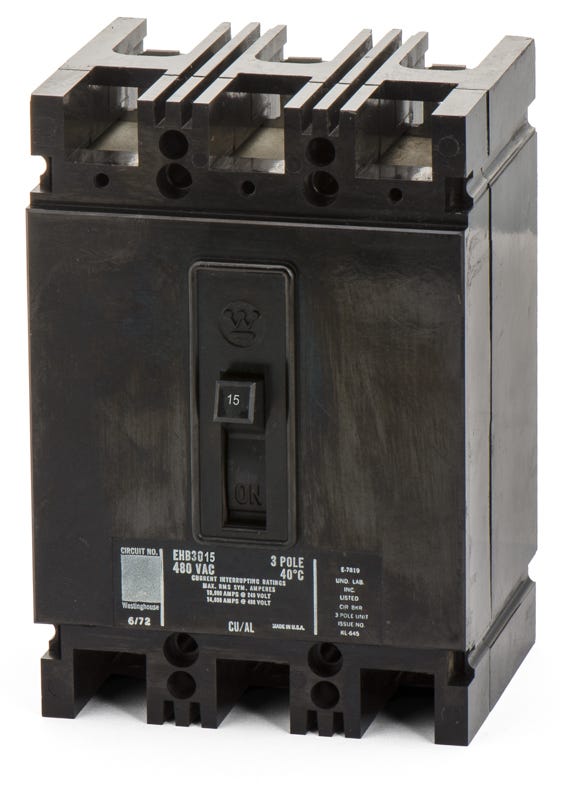

Eaton / Westinghouse EHB3015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
EHB3015
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EHB3015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EHB3015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Built to maintain existing infrastructure, the Eaton EHB3015 is a 15A, three-pole molded case circuit breaker. It delivers dependable thermal-magnetic overcurrent protection for commercial and industrial three-phase applications. This unit bolts securely into legacy Westinghouse NEHB panelboards, ensuring a proper fit without modifications. For modern upgrades, this specific E-Frame model is replaced by the newer EHD3015. With a 14 kAIC rating at 480Y/277VAC, it features a fixed trip unit.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EHB3015-R |
| Series | EHB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the EHB3015 circuit breaker?
This bolt-on breaker is designed specifically for use in legacy Westinghouse NEHB panelboards. It mounts directly to the panel bus and is not compatible with standard plug-on load centers.
What is the modern replacement for the obsolete EHB3015?
The original Westinghouse EHB series is obsolete. The Eaton EHD3015 serves as the modern equivalent and direct replacement for maintaining existing NEHB panelboards.
Can the EHB3015 be used in DC electrical systems?
Yes, in addition to its AC ratings, this breaker is certified for DC applications up to 250VDC, providing a 10kA interrupting capacity for direct current circuits.
What does the LI trip function code indicate on this breaker?
The LI designation stands for Long-Time and Instantaneous trip functions. This provides standard thermal-magnetic protection, utilizing a bimetallic strip for sustained overloads and a magnetic coil for immediate short-circuit clearing.
Are the trip settings on the EHB3015 adjustable?
No, this breaker features fixed thermal and fixed magnetic trip elements. The trip unit is non-interchangeable and cannot be modified in the field.
Does the EHB3015 include line and load side lugs?
This breaker includes load side lug terminals that accept 14 to 10 AWG copper or aluminum wire. The line side features a bolt-on connection designed to mount directly to the panelboard bus.
What safety precautions are required when removing an EHB breaker from an NEHB panel?
Always ensure the main power to the panelboard is completely de-energized and verified with a reliable voltage tester before unbolting the breaker from the live bus.
