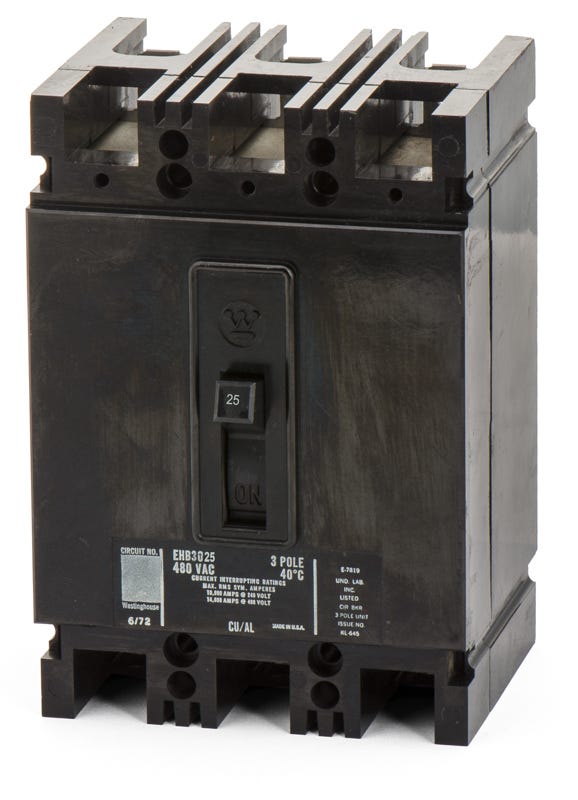

Eaton / Westinghouse EHB3025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
EHB3025
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EHB3025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EHB3025-R - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Rated for 14kAIC at 480Y/277V, this three-pole legacy breaker delivers essential overcurrent protection for commercial environments. The bolt-on configuration ensures a rigid, high-conductivity connection within classic Westinghouse NEHB panelboards. Maintenance teams utilize this specific E-Frame model to restore power without modifying existing enclosures. While the EHD3025 serves as the modern equivalent, this exact-match unit preserves the original engineering specifications of the panel.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EHB3025-R |
| Series | EHB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Al/Cu) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip |
Product FAQs
4 answersWhat panelboards are compatible with the EHB3025 circuit breaker?
This breaker is designed as an exact fit for legacy Westinghouse NEHB panelboards. It features a bolt-on mounting style that connects directly to the panelboard bus, eliminating the need for retrofit kits.
Is the Westinghouse EHB3025 obsolete, and what is the modern replacement?
The original Westinghouse EHB series is obsolete. The Eaton EHD3025 serves as the modern equivalent. However, installing an exact-match EHB3025 preserves the original engineering specifications of your legacy panelboard.
Can the EHB3025 breaker be used in DC electrical systems?
Yes. In addition to its standard AC ratings, this breaker is rated for direct current applications up to 250VDC, delivering a 10kA interrupting capacity for specialized industrial circuits.
Are the trip settings on the EHB3025 adjustable?
No. This E-Frame breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous settings. The trip curve cannot be adjusted in the field.
