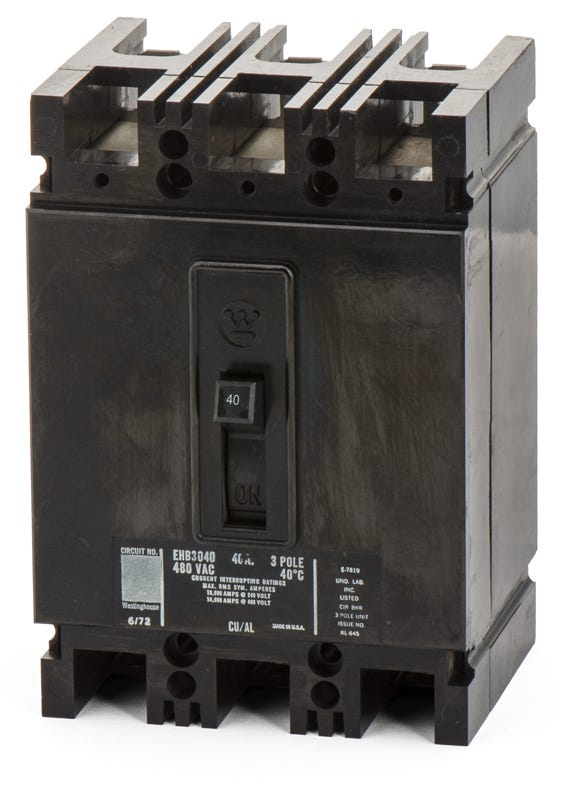

Eaton / Westinghouse EHB3040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
EHB3040
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EHB3040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EHB3040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Manufactured by Eaton, the EHB3040 is a 40A, 3-pole molded case circuit breaker built for commercial applications. It features a fixed thermal-magnetic trip unit for reliable long-time and instantaneous protection. This bolt-on MCCB fits seamlessly into legacy Westinghouse panelboards without adapters. Serving as a direct cross-reference for older systems, it is officially replaced by the EHD3040. Rated for 14 kAIC at 480Y/277V, it is HACR rated and includes load-side lugs.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EHB3040-R |
| Series | EHB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards |
| Wire Gauge | 14-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersIs the Westinghouse EHB3040 circuit breaker obsolete?
Yes, the original Westinghouse EHB series is obsolete. Eaton now manufactures the EHD3040 as the modern, direct cross-reference replacement, offering the exact form, fit, and function for legacy systems.
Which panelboards accept the EHB3040 breaker?
This bolt-on breaker is designed as a direct fit for legacy Westinghouse panelboards. It is also compatible with Eaton Pow-R-Line C and F-Frame panelboards without requiring any adapters or retrofit kits.
Can this breaker be used in direct current (DC) applications?
Yes, it is rated for DC applications up to 250VDC with a 10kA interrupting capacity. When installing in DC systems, consult Eaton technical guidelines to determine if poles must be wired in series for your specific voltage.
Are retrofit kits required to install this breaker in older Westinghouse panels?
No, the EHB3040 is an exact fit for compatible legacy Westinghouse panelboards. It bolts directly onto the bus, preserving the original equipment design without modifications.
Where can I find the correct lug torque specifications for the EHB3040?
Terminal torque requirements are printed directly on the breaker nameplate. The required torque value depends on the specific wire gauge being used within the accepted 14 to 2 AWG range.
What safety checks are required before replacing an existing EHB breaker?
Always verify the panel is completely de-energized. Confirm that the replacement matches the original 40-amp rating, bolt-on mounting configuration, and interrupting capacity to ensure safe operation and code compliance.
Does the EHB3040 support interchangeable trip units?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous trip functions cannot be adjusted or swapped out in the field.
What type of wire material is permitted for the load terminals?
The factory-installed lugs accept both copper and aluminum conductors ranging from 14 AWG to 2 AWG. Ensure an approved oxide inhibitor is used when terminating aluminum wire to prevent corrosion and maintain a safe connection.
