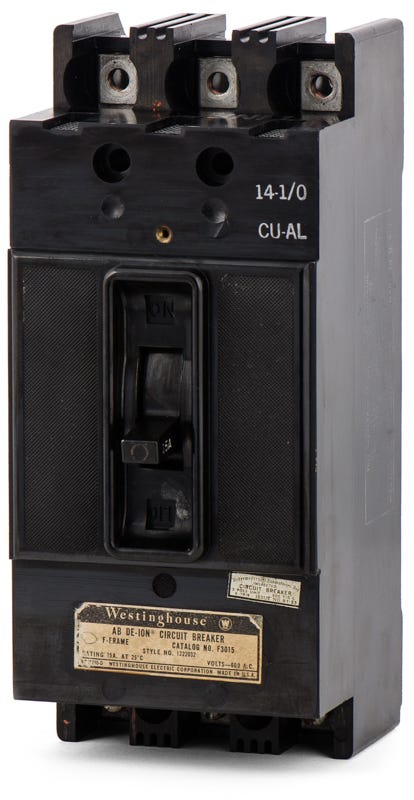

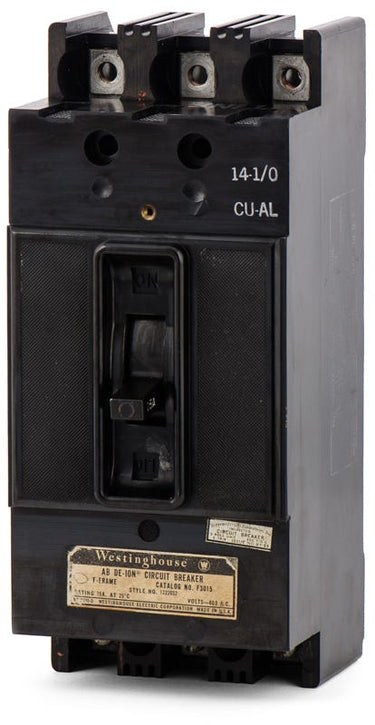

Eaton / Westinghouse F3015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
F3015
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
F3015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse F3015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
5A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial facilities, the Eaton F3015 is a 15A, 3-pole molded case circuit breaker. It provides essential long-time and instantaneous thermal-magnetic protection for legacy systems. This bolt-on unit is fully compatible with older Westinghouse panelboards, Eaton Pow-R-Line C enclosures, and motor control centers. Delivering a 14 kAIC rating at 480VAC, it is the ideal exact replacement for FDB3015 or FD3015 breakers, eliminating the need for costly upgrades.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | F3015-R |
| Series | F |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton Pow-R-Line C Panelboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the F3015 circuit breaker?
This bolt-on breaker is designed for use in legacy Westinghouse panelboards, Eaton Pow-R-Line C panelboards, and motor control centers.
What frame type does the F3015 belong to?
It is part of the legacy Westinghouse F-frame series of molded case circuit breakers.
Can the F3015 replace FDB3015 or FD3015 breakers?
Yes, the F3015 shares the same physical dimensions and mounting as the FDB3015 and FD3015. You must verify that its 14 kAIC rating at 480VAC meets your system fault current requirements before substituting.
What wire sizes do the standard lugs on the F3015 accept?
The load side lugs accept wire gauges from 14 AWG up to 1/0 AWG.
Is the F3015 rated for DC applications?
Yes, in addition to AC ratings, this breaker is rated for up to 250VDC with a 10 kAIC interrupting capacity.
What type of trip unit is installed in the F3015?
It features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions.
