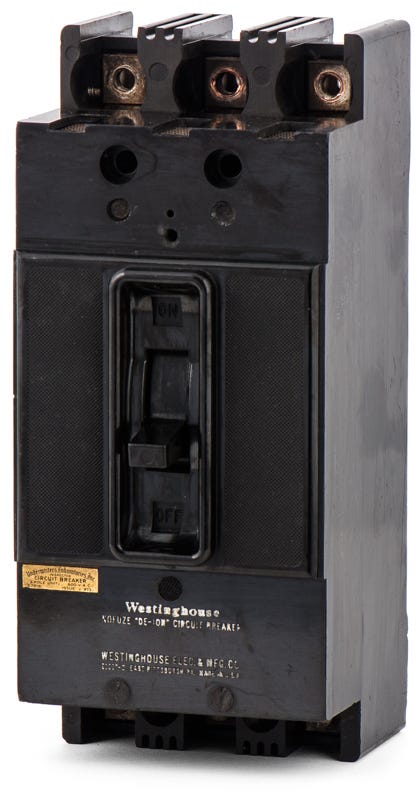

Eaton / Westinghouse F3100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
F3100
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
F3100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse F3100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Manufactured for heavy-duty commercial applications, this 100-amp F-Frame breaker delivers robust circuit protection for older electrical systems. Installation is straightforward in vintage Westinghouse hardware and Eaton Pow-R-Line C panels. It acts as a perfect substitute for hard-to-find FDB3100 and FD3100 units, eliminating the need for costly panel upgrades. Rated for 14kAIC at 480VAC, the unit features proven De-Ion arc extinguishing capabilities and supports reverse feeding.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | F3100-R |
| Series | F |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton Pow-R-Line C Panelboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed |
Product FAQs
5 answersWhich panelboards accept the F3100 circuit breaker?
This bolt-on F-frame breaker is designed for direct installation in legacy Westinghouse panelboards, Eaton Pow-R-Line C panelboards, and compatible motor control centers.
Can the F3100 be used in direct current (DC) applications?
Yes, in addition to its AC ratings, this breaker carries a DC interrupting rating of 10kA at 250VDC, making it suitable for industrial DC control circuits.
What wire sizes are compatible with the F3100 load side lugs?
The included load side lugs accept wire gauges ranging from 14 AWG up to 1/0 AWG.
Are the thermal and magnetic trip settings adjustable on the F3100?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials.
Can the F3100 replace other Eaton or Westinghouse F-frame breakers?
Yes, this breaker serves as a direct substitute for hard-to-find FDB3100 and FD3100 units in existing installations, which can help avoid complete panel upgrades.
