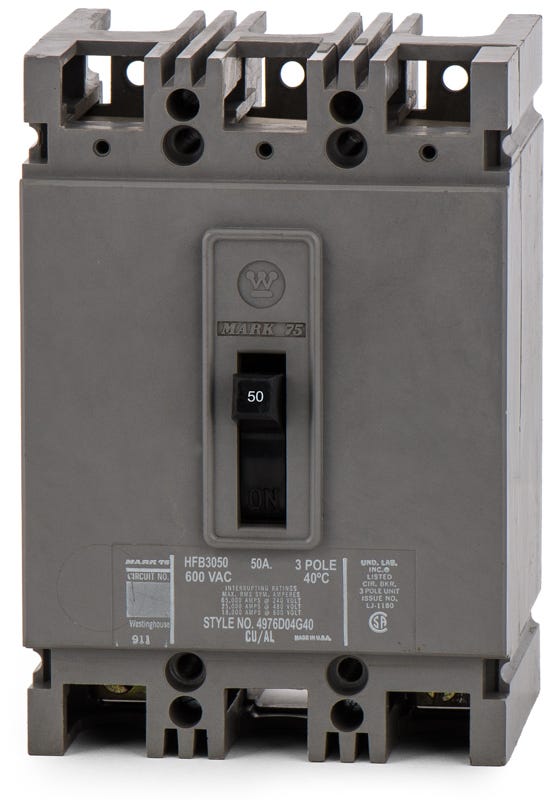

Eaton / Cutler-Hammer HFB3050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
HFB3050
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFB3050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFB3050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
The Eaton HFB3050 is a robust 3-pole, 50A molded case circuit breaker designed for demanding commercial environments. As part of the proven Mark 75 F-Frame family, it features fixed thermal and magnetic trip settings to guard against overloads and short circuits. This unit mounts into legacy Westinghouse enclosures and modern Eaton Pow-R-Line C panelboards. Delivering a 25kA interrupting capacity at 480V, it serves as a reliable solution for facility maintenance and system upgrades.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFB3050-R |
| Series | HFB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated |
Product FAQs
5 answersWhich panelboards are compatible with the HFB3050 breaker?
This F-frame breaker is designed for bolt-on installation in Eaton Pow-R-Line C panelboards, as well as legacy Westinghouse panelboards and switchboards.
Is the Eaton HFB3050 identical to the Westinghouse HFB3050?
Yes. Eaton acquired the Westinghouse electrical distribution business in the early 1990s. Breakers marked with either brand share the same physical dimensions, mounting hardware, and UL listings.
What does the H in the HFB3050 catalog number indicate?
The H designates this as a high-interrupting capacity breaker within the Mark 75 family. It provides a 65kA interrupting rating at 240V AC, compared to the standard FB3050 which has a lower short-circuit rating.
What wire sizes are accepted by the standard lugs on the HFB3050?
The factory-installed lugs accept copper or aluminum conductors ranging from 14 AWG up to 1/0 AWG. Ensure proper torque specifications are followed during installation as labeled on the breaker faceplate.
Can I use a standard FB3050 in place of an HFB3050?
You can only substitute an FB3050 if the available fault current at the installation point is lower than the FB series maximum interrupting rating. The HFB3050 is required for systems needing up to 65kAIC at 240V AC or 25kAIC at 480V AC.
