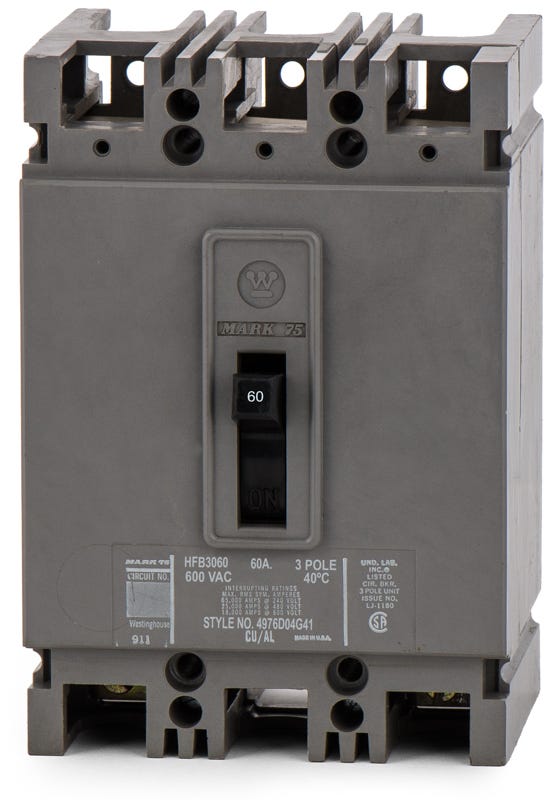

Eaton / Cutler-Hammer HFB3060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
HFB3060
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFB3060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFB3060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton HFB3060 is a 3-pole, 60-amp molded case circuit breaker from the Mark 75 F-Frame family. It provides reliable thermal-magnetic overcurrent protection for demanding electrical distribution systems. This bolt-on MCCB installs into Eaton Pow-R-Line C panelboards, switchboards, and legacy Westinghouse enclosures.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFB3060-R |
| Series | HFB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
6 answersAre Eaton, Cutler-Hammer, and Westinghouse HFB3060 breakers interchangeable?
Yes. Eaton acquired the Westinghouse electrical distribution division in 1994. Breakers carrying the HFB3060 catalog number under the Westinghouse, Cutler-Hammer, or Eaton brands share the exact same physical dimensions and electrical characteristics.
What is the modern replacement for a legacy Westinghouse HFB3060?
The direct modern equivalent is the Eaton Series C HFD3060. The HFD is an F-Frame breaker that shares the same footprint as the legacy HFB, allowing it to mount into existing panelboards without requiring special retrofit kits.
What panelboards accept the HFB3060 circuit breaker?
This bolt-on F-Frame breaker is designed to install directly onto the busbars of legacy Westinghouse FDP panelboards, modern Eaton Pow-R-Line C panelboards, and compatible industrial switchboards.
What does the Mark 75 designation indicate on this breaker?
Mark 75 is a legacy Westinghouse trade name used to identify their line of high interrupting capacity circuit breakers. On the HFB3060, this denotes an elevated fault current rating, providing 65kA of interrupting capacity at 240VAC and 25kA at 480VAC.
Can the HFB3060 be applied in DC electrical systems?
Yes. In addition to standard AC ratings, this thermal magnetic breaker is rated for DC applications, providing up to 20kA of interrupting capacity at 250VDC.
Does the HFB3060 mount to a standard DIN rail?
No. This is a bolt-on molded case circuit breaker designed to bolt directly to the busbar in commercial and industrial panelboards. It cannot be mounted to a DIN rail.
