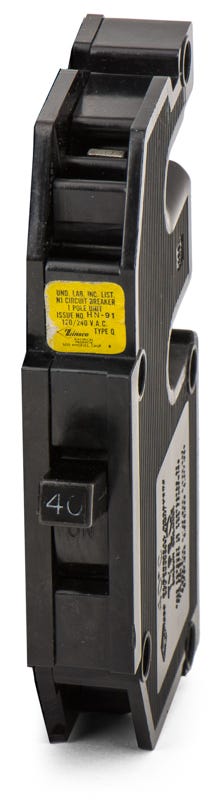

Zinsco Q40 Miniature Circuit Breaker
- 40A
- 1 Pole
- Plug-On
Zinsco
Q40
Miniature Circuit Breaker
Brand
Zinsco
SKU
Q40
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Zinsco Q40 - 40A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Similar Items

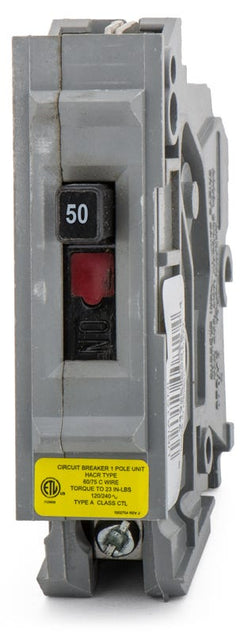

50A 1 Pole Miniature Circuit Breaker

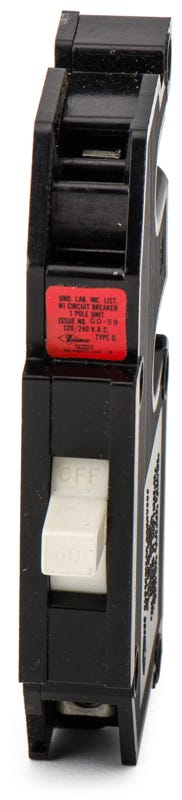

60A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Providing essential overcurrent protection for residential circuits, the Zinsco Q40 is a 40-amp, single-pole breaker rated for 120/240VAC. It delivers reliable long-time and instantaneous trip functions to keep household wiring safe. Engineered to fit original Zinsco load centers, this plug-on unit restores functionality to aging electrical infrastructure. It serves as an exact hardware match for discontinued panels.Specifications
| Brand | Zinsco |
|---|---|
| Part Number | Q40-R |
| Series | Q |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Zinsco Load Centers |
| Wire Gauge | 8-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Lugs Not Included |
|---|---|
| Standards | UL 489, HACR Rated |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat is the modern replacement for the Zinsco Q40 circuit breaker?
The Connecticut Electric UBIZ40 is a direct, modern replacement for the original Zinsco Q40. It is an ETL-listed 40A, 1-pole breaker designed specifically to fit legacy Zinsco load centers.
Can I use the Zinsco Q40 in a Sylvania electrical panel?
Yes. Sylvania purchased Zinsco in the 1970s and continued manufacturing the same panel designs. The Q40 is compatible with both Zinsco and Sylvania load centers that accept Q-series or QC-frame breakers.
How does the Q40 breaker mount into the panel?
The Q40 utilizes a plug-on connection type. It snaps directly onto the aluminum busbars found in Zinsco load centers without requiring bolt-on hardware.
Are Zinsco panels and breakers safe to continue using?
Zinsco load centers have a documented history of busbar connection failures and breakers failing to trip during overcurrent events. While replacement breakers can restore functionality to an existing panel, many electricians recommend a complete panel upgrade for long-term safety.
What does the LI trip function mean on the Zinsco Q40?
The LI designation indicates that the thermal-magnetic breaker includes both Long-Time and Instantaneous trip functions. The long-time function protects against sustained overloads, while the instantaneous function trips immediately during a short circuit.
