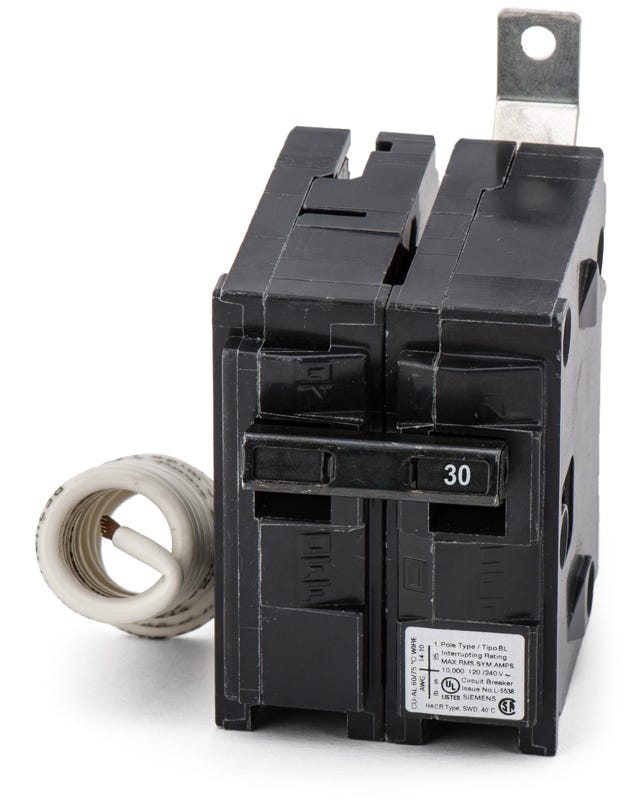

Siemens B13000S01 Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Siemens
B13000S01
Miniature Circuit Breaker
Brand
Siemens
SKU
B13000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B13000S01 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Siemens B13000S01 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B13000S01 |
| Series | B |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG (Cu), 6 AWG (Al) |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens B13000S01 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B13000S01-R |
| Series | B |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG (Cu), 6 AWG (Al) |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
30A 2 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
Description
Built for demanding commercial environments, this 30A single-pole breaker integrates a 120VAC shunt trip for remote circuit management. The Siemens B13000S01 provides dependable thermal-magnetic protection against overloads in a compact footprint. Designed for bolt-on installation, it mounts securely into Siemens P1 through P5 panelboards and functions as a substitute for BA1030 configurations. This HACR-rated device delivers a 10kAIC interrupting capacity at 120/240VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B13000S01 |
| Series | B |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG (Cu), 6 AWG (Al) |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the Siemens B13000S01 circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, P3, P4, and P5 panelboards.
Does the B13000S01 include a shunt trip mechanism?
Yes, the S01 suffix in the catalog number indicates this breaker is factory-equipped with a 120VAC shunt trip accessory. This allows the breaker to be opened remotely via a control signal.
What type of conductors can be terminated on the B13000S01 breaker?
The factory-installed lugs are rated for both copper (Cu) and aluminum (Al) conductors. They accept 10 to 8 AWG copper or 10 to 6 AWG aluminum wire. Always verify the specific torque requirements printed directly on the breaker label before terminating conductors.
Are the trip settings adjustable on the B13000S01?
No, this thermal magnetic breaker features fixed thermal (long-time) and fixed magnetic (instantaneous) trip settings. It does not offer field-adjustable trip curves.
Is the Siemens B13000S01 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific safety designation.
What breaker family does the B13000S01 belong to?
This breaker is part of the Siemens BL series, which falls under the broader B-frame family of molded case circuit breakers.
