Siemens BQ1B035 Molded Case Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
Siemens
BQ1B035
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ1B035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

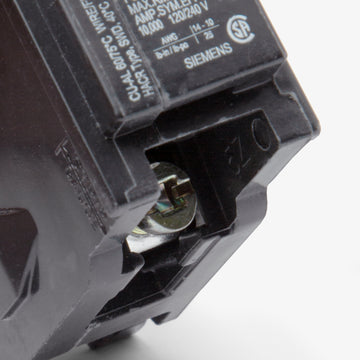

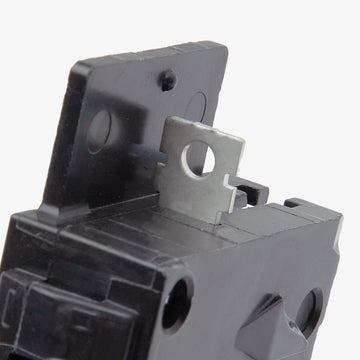

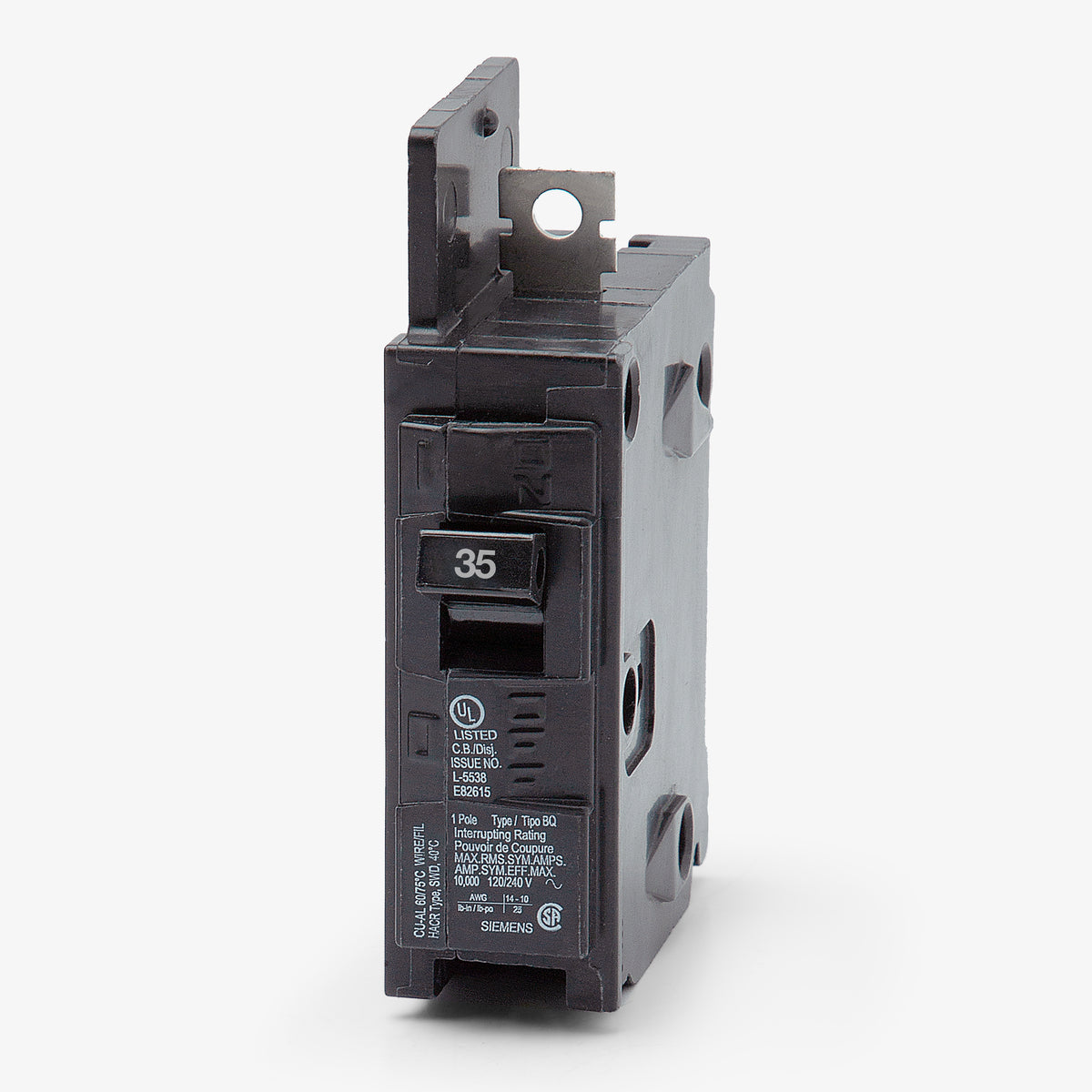

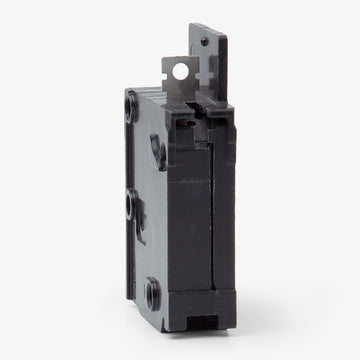

Siemens BQ1B035 - 35A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
45A 1 Pole Molded Case Circuit Breaker
Description
Part of the proven BQ family, this 35-amp single-pole molded case circuit breaker provides standard 10kAIC interrupting capacity for commercial facilities. The unit fastens firmly into Siemens P1, P2, and P3 panelboards via reliable lug terminals. It serves as a functional equivalent to BAB1035 or THQB1135 models for cross-reference purposes. Featuring a standard HACR rating, the device safely manages electrical loads for heavy-duty heating, cooling, and refrigeration equipment.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ1B035-R |
| Series | BQ |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards accept the Siemens BQ1B035 circuit breaker?
The BQ1B035 is a bolt-on breaker engineered for Siemens P1, P2, and P3 commercial panelboards. It is not compatible with standard residential plug-on load centers.
Can the Siemens BQ1B035 replace older ITE circuit breakers?
Yes. Siemens acquired the ITE product line, and the BQ1B035 serves as a direct replacement for legacy ITE BQ frame breakers with matching specifications.
Is the BQ1B035 breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for branch circuit protection of heating, air conditioning, and refrigeration equipment.
How does the thermal-magnetic trip unit function on this breaker?
It features a fixed thermal-magnetic trip mechanism. The thermal element provides long-time delay protection against sustained overloads, while the magnetic element delivers instantaneous tripping during short circuits.
What is the installation method for the BQ1B035?
This is a bolt-on circuit breaker. It secures directly to the panelboard bus bar using screws, providing a robust connection suitable for commercial environments.
