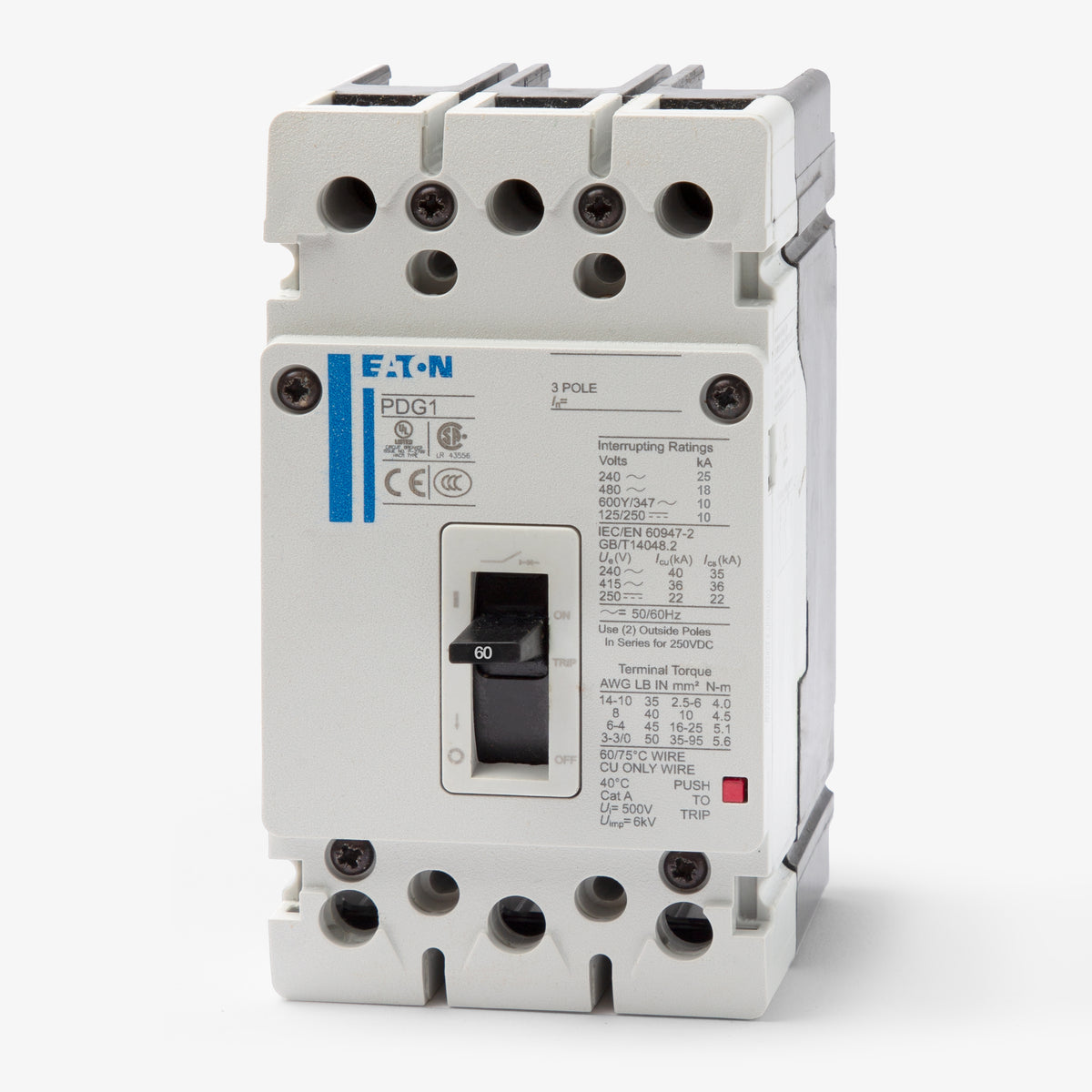

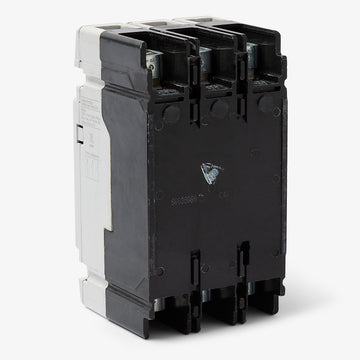

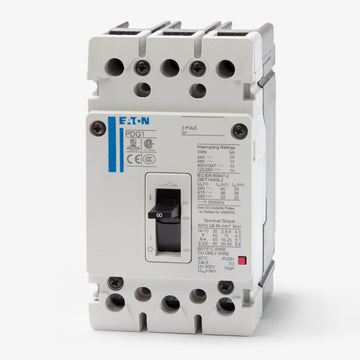

Eaton / Cutler-Hammer PDG13C0060TFFJ Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13C0060TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13C0060TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13C0060TFFJ - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0060TFFJ
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0060TFFJ
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13C0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Description
Belonging to Eaton's globally rated Power Defense family, this 60A, 3-pole MCCB provides reliable fixed thermal-magnetic (LI) protection. The Frame 1 design is optimized for commercial and industrial power distribution. This unit installs into Eaton Pow-R-Line panelboards and serves as a drop-in replacement for legacy EGB3060FFG breakers. It features standard box lugs for 14-3/0 AWG wire. With an 18kAIC rating at 480VAC, the current-limiting breaker ensures robust fault clearing.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG13C0060TFFJ |
| Series | PDG1 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, DIN Rail Adapter, Padlock Attachment |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Globally Rated, RoHS Compliant, HACR Rated |
Product FAQs
7 answersWhat panelboards are compatible with the Eaton PDG13C0060TFFJ?
This Frame 1 Power Defense breaker is designed for installation in Eaton Power Defense Panelboards and Eaton Pow-R-Line Panelboards.
What wire sizes are accepted by the standard lugs on the PDG13C0060TFFJ?

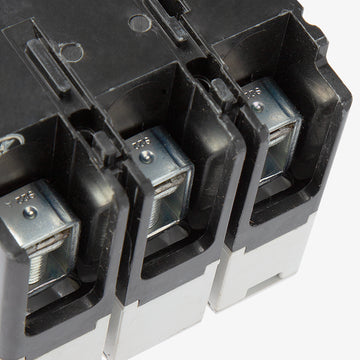

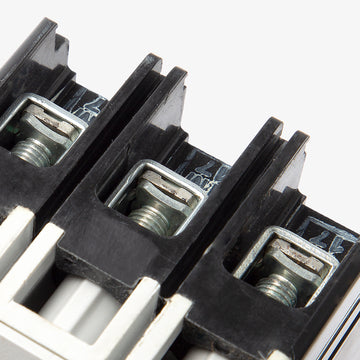

The factory-installed box lugs (catalog number PDG1X3T125) accept copper or aluminum conductors ranging from 14 AWG to 3/0 AWG.
How is the PDG13C0060TFFJ circuit breaker mounted?
This breaker is primarily designed for standard panel mounting. However, the Power Defense Frame 1 series can also be adapted for DIN rail mounting using the appropriate Eaton mounting hardware.
How is the 250VDC rating achieved on the PDG13C0060TFFJ?
This thermal-magnetic breaker is rated for 10kAIC at 250VDC. Per Eaton specifications, the 250VDC rating is achieved by wiring two of the breaker poles in series.
Can the trip curve be adjusted on the PDG13C0060TFFJ?
No, this model features a fixed thermal and fixed magnetic (LI) trip unit. For applications requiring adjustable long-time or short-time pickup settings, a Power Defense breaker with an electronic PXR trip unit is required.
Can the Power Defense PDG13C0060TFFJ replace legacy Cutler-Hammer breakers?
The Power Defense series is Eaton's current globally rated MCCB platform. While it shares similar footprints with legacy Eaton and Cutler-Hammer 125A frame breakers, you must verify specific panelboard mounting hardware and bus connections before retrofitting.
Does the PDG13C0060TFFJ provide ground fault protection?
No, this breaker is equipped with a standard thermal-magnetic trip unit for basic overcurrent and short-circuit protection. It does not include integrated ground fault or earth leakage protection.
