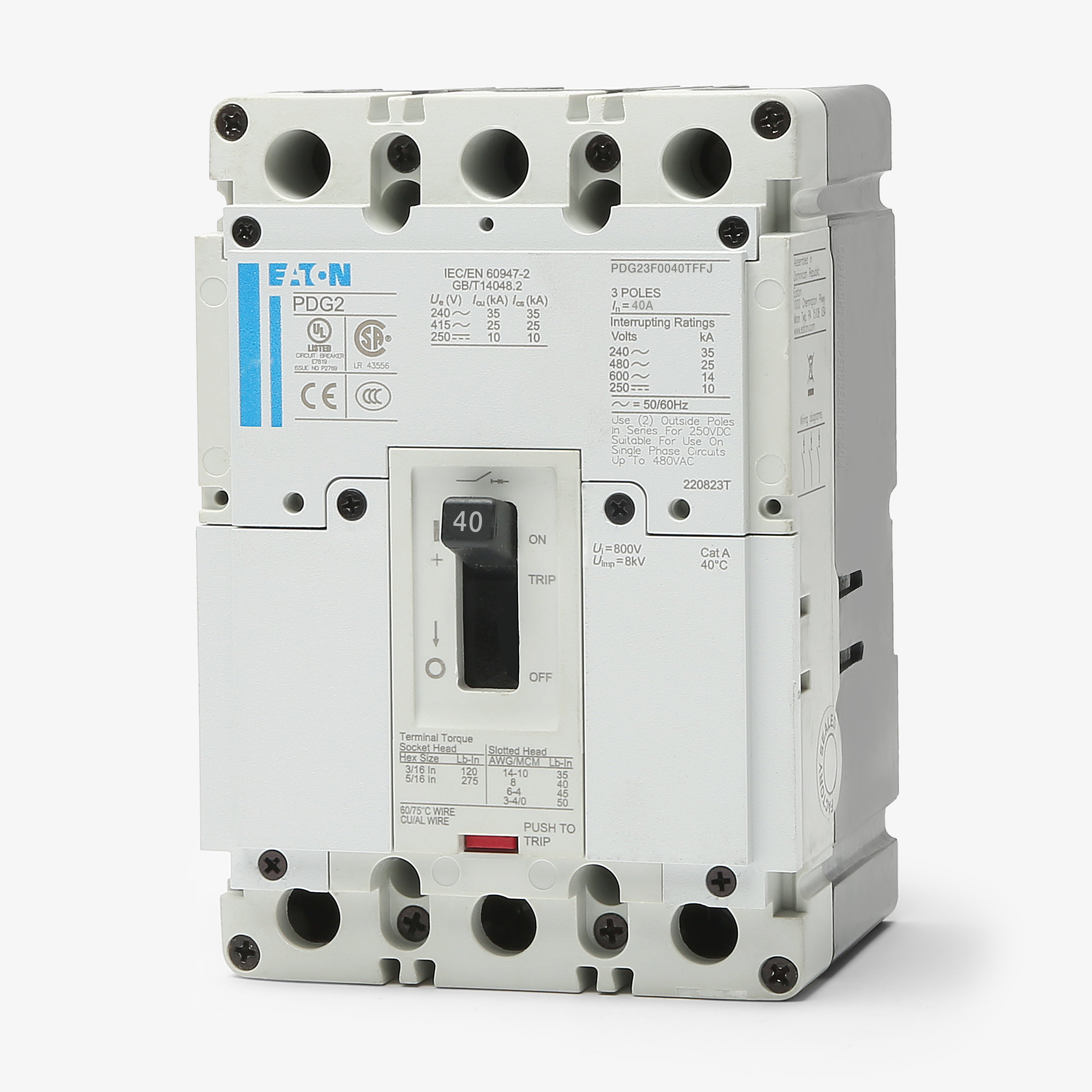

Eaton / Cutler-Hammer PDG23F0040TFFJ Molded Case Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0040TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0040TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23F0040TFFJ - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Eaton/Cutler-HammerPDG23G0040TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23M0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial and marine environments, the Eaton PDG23F0040TFFJ is a 3-pole, 40A molded case circuit breaker. Part of the globally recognized Power Defense series, it delivers reliable long-time and instantaneous (LI) protection for critical power distribution systems. This Frame 2 breaker installs into Eaton Power Defense panelboards and enclosures. It is an ideal replacement for legacy Series C FD3040 units. Featuring standard line and load terminals, it provides 25kAIC at 480V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23F0040TFFJ |
| Series | PDG2 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Terminal Shields |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
8 answersCan I install the PDG23F0040TFFJ in older Eaton panelboards?
This Power Defense Frame 2 breaker is designed for modern Eaton Power Defense panelboards, switchboards, and enclosures. It also shares the same physical footprint as legacy Series C F-Frame breakers, allowing it to fit in many older panels that accept F-Frame units.
Can the PDG23F0040TFFJ replace older Series C circuit breakers?
Yes, the Power Defense Frame 2 series serves as a direct replacement for legacy Eaton and Cutler-Hammer Series C F-Frame breakers, such as the FD3040, fitting the exact same footprint.
Are the factory-installed lugs on the PDG23F0040TFFJ rated for aluminum wire?

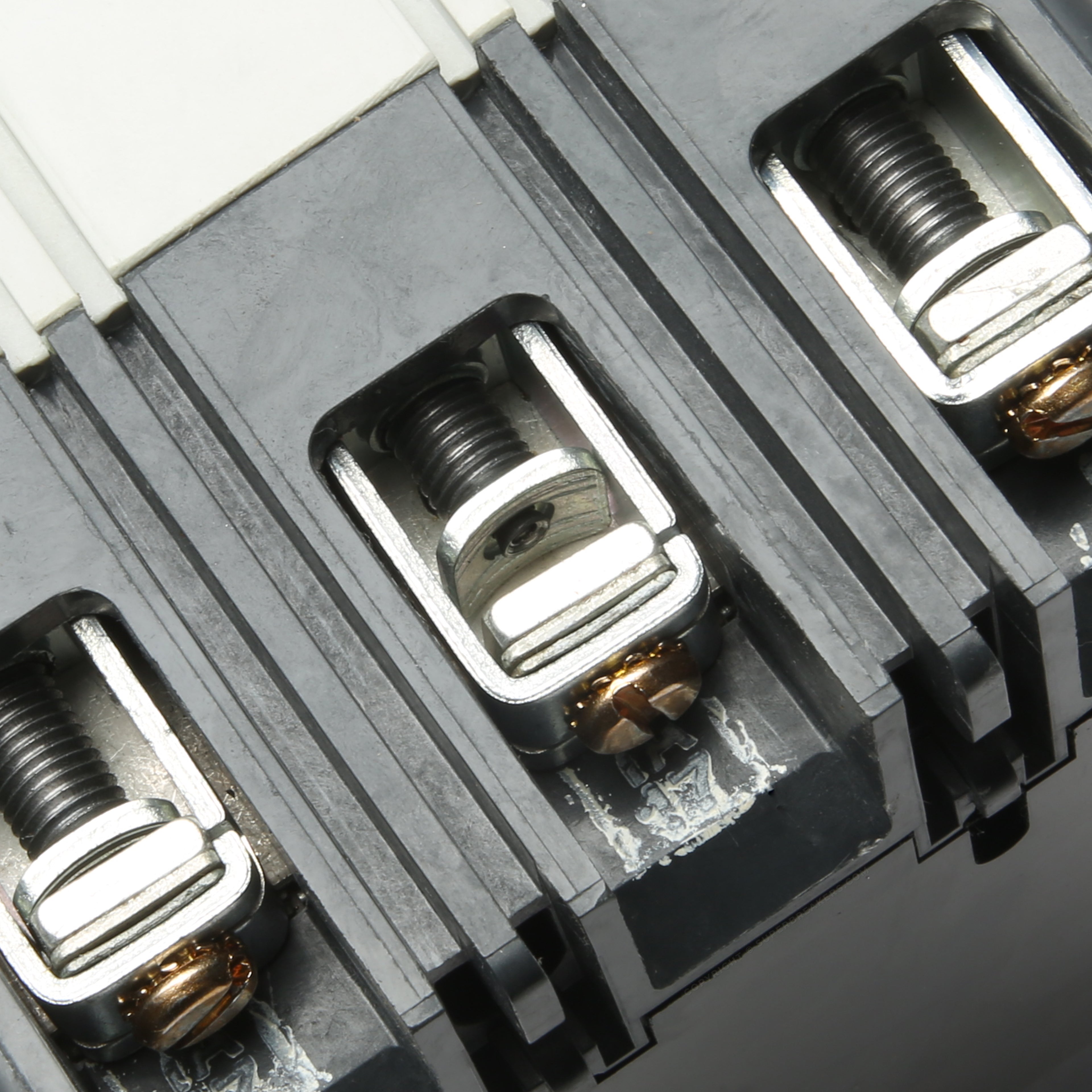

Yes, the standard line and load lugs included with this breaker are dual-rated for both aluminum and copper conductors, accepting wire sizes from 14 AWG to 4 AWG.
What does the F in the PDG23F0040TFFJ catalog number indicate?
In the Eaton Power Defense nomenclature, the F designates the interrupting capacity. For this Frame 2 breaker, it indicates a 25kAIC rating at 480VAC.
Does this thermal magnetic breaker provide ground fault protection?
No, the PDG23F0040TFFJ features a standard LI (Long-Time and Instantaneous) trip unit. It does not include ground fault protection, which would require an LSIG or specialized electronic trip unit.
Are the thermal and magnetic trip settings adjustable on the PDG23F0040TFFJ?
No, this breaker features a fixed thermal and fixed magnetic trip unit, meaning the trip thresholds cannot be adjusted in the field.
Is this breaker rated for use in DC circuits?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC applications with an interrupting capacity of 10kAIC.
Does this breaker require a separate mounting hardware kit for panel installation?
While the breaker itself is a standard panel mount design, installing it into Eaton Pow-R-Line or Power Defense panelboards typically requires specific connector kits or strap kits depending on the panel chassis.
