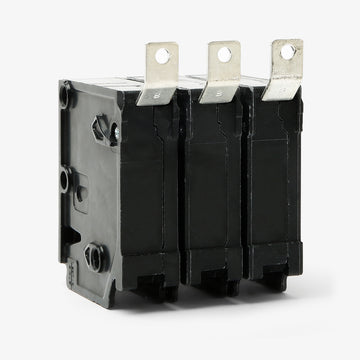

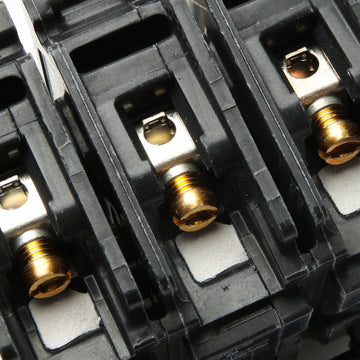

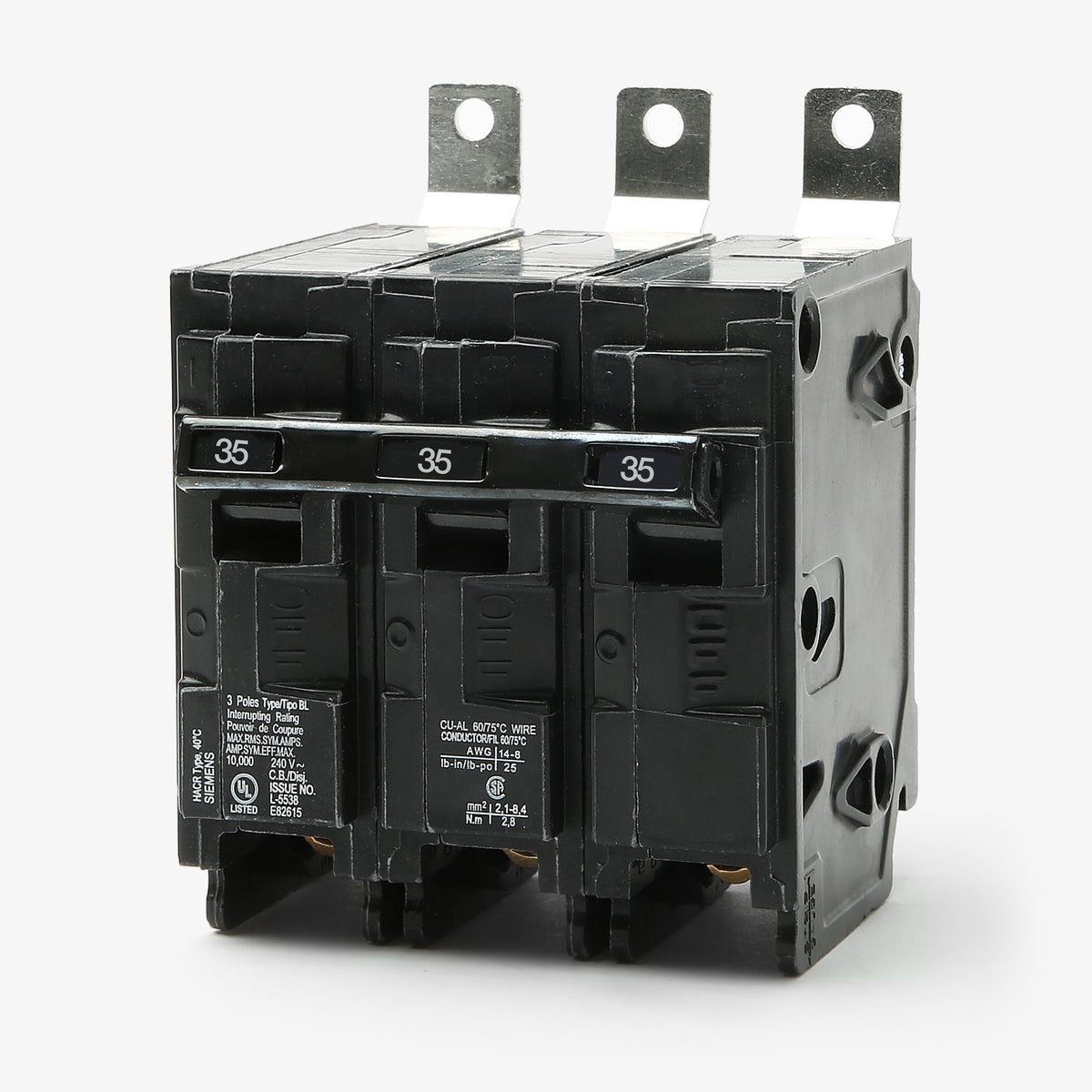

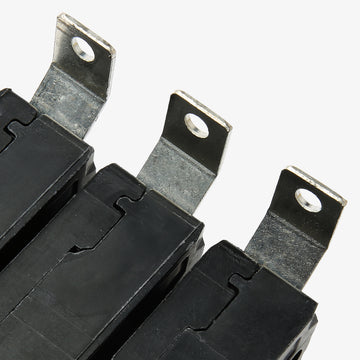

Siemens B335 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Siemens
B335
Molded Case Circuit Breaker
Brand
Siemens
SKU
B335
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B335 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens B335 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B335 |
| Series | BL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Sold out
Quantity
Siemens B335 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B335-R |
| Series | BL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Part of the BL series, this 35-amp molded case circuit breaker provides standard 10kAIC interrupting capacity at 240VAC for commercial and industrial distribution systems. The bolt-on design installs securely into Siemens P1, P2, P3, P4, and P5 panelboards, ensuring a stable connection for three-phase loads. Featuring fixed thermal and magnetic trip elements, it offers dependable long-time and instantaneous protection while maintaining an HACR rating for HVAC equipment compatibility.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B335-R |
| Series | BL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens B335 circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, P3, P4, and P5 series commercial panelboards.
Can the Siemens B335 replace older ITE or Gould BL-frame breakers?
Yes. Siemens acquired the ITE and Gould electrical distribution lines and manufactures their current production equivalents. The B335 serves as the direct, UL-listed cross-reference for obsolete 3-pole, 35-amp, bolt-on BL and B-frame breakers from those legacy brands.
Is the Siemens B335 circuit breaker HACR rated?
Yes, it carries a HACR rating, meaning it is certified to provide branch circuit protection for heating, air conditioning, and refrigeration equipment.
Does the Siemens B335 feature adjustable trip settings?
No. This thermal-magnetic breaker operates with fixed long-time and instantaneous (LI) trip functions. The overcurrent and short-circuit trip thresholds are factory-set and cannot be modified in the field.
How is a bolt-on connection advantageous for the B335 installation?
The B335 fastens directly to the panelboard bus bars using mounting screws. This bolted connection ensures a secure, high-conductivity joint that resists loosening from mechanical vibration, making it highly reliable for commercial and industrial electrical distribution.
