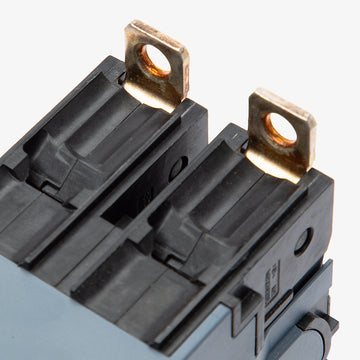

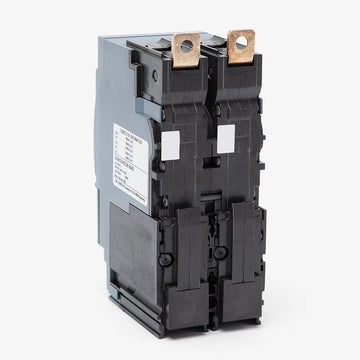

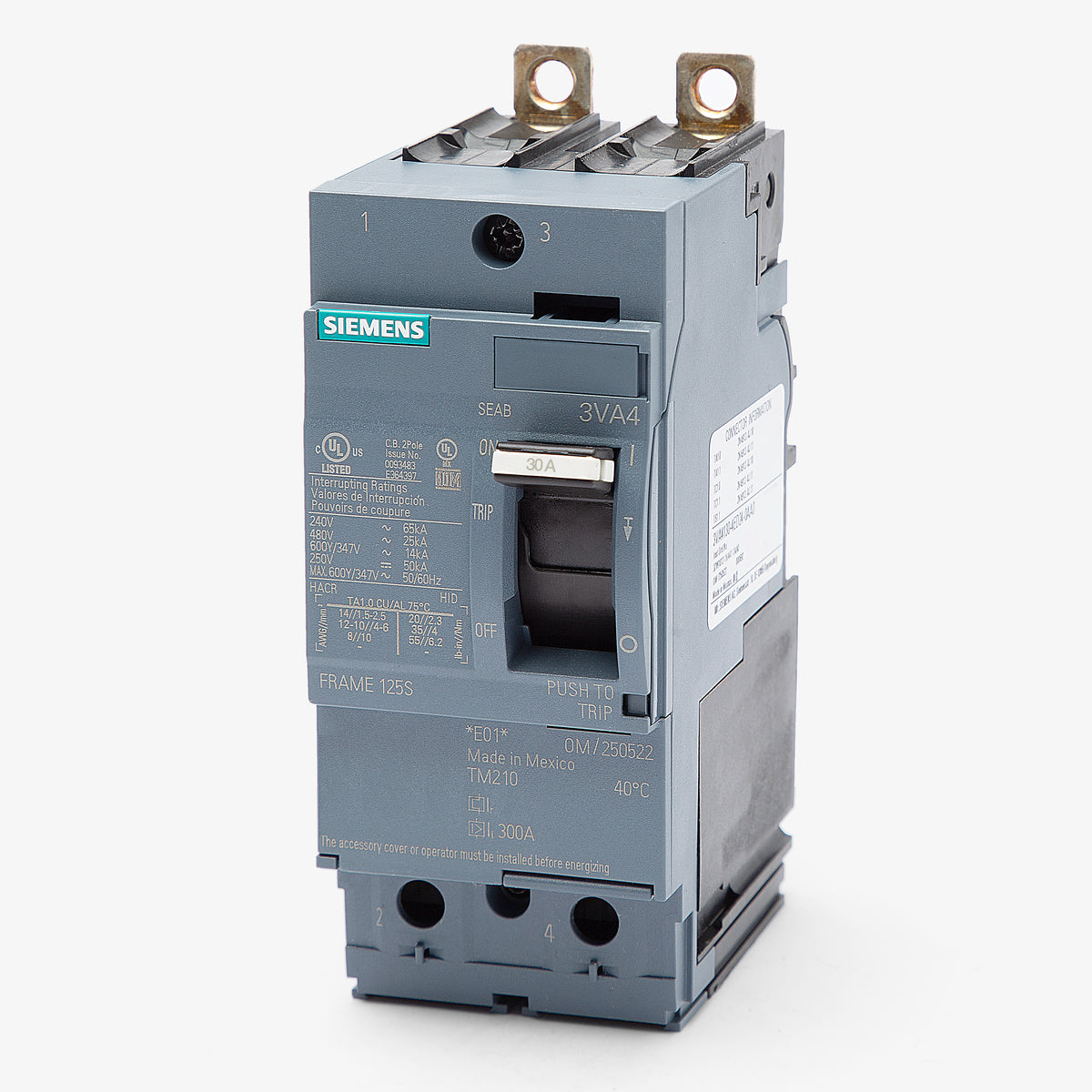

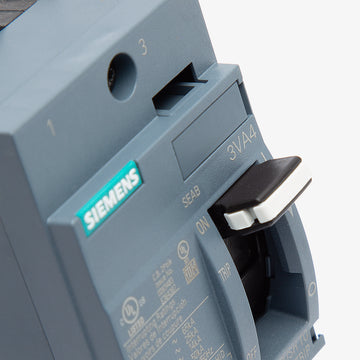

Siemens 3VA4130-4ED24-0AA0 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Panel Mount
Siemens
3VA4130-4ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4130-4ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4130-4ED24-0AA0 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
A reliable solution for commercial power systems, the Siemens 3VA4130-4ED24-0AA0 is a 2-pole, 30A molded case circuit breaker. It utilizes a fixed thermal-magnetic trip unit to provide essential overcurrent protection. This panel mount MCCB is built to fit Siemens P1, P2, and P3 panelboards. It serves as a direct replacement for legacy ED42B030 breakers, ensuring seamless integration during upgrades. Rated 25kAIC at 480V, the breaker features a trip-free mechanism and is HACR and HID rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4130-4ED24-0AA0 |
| Series | 3VA4 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip, HID Rated |
Product FAQs
8 answersWhich panelboards are compatible with this 30A 2-pole breaker?
This breaker is designed for direct bolt-on installation in Siemens P1, P2, and P3 panelboards, as well as compatible switchboards.
Can I use this breaker to replace an older Siemens ED-frame breaker?
Yes, the 3VA4130-4ED24-0AA0 serves as a direct replacement for the legacy ED42B030 circuit breaker, allowing for seamless integration during panel upgrades.
What wire sizes and materials are supported by the terminal lugs?
The load side lugs accept 14 to 8 AWG copper (Cu) conductors or 12 to 8 AWG aluminum (Al) conductors.
Is this breaker suitable for DC voltage applications?
Yes, it is rated for use in DC systems up to 250V DC, providing an interrupting capacity of 50kAIC.
What type of protection does the LI trip function provide?
The LI designation indicates a thermal-magnetic trip unit that provides both Long-Time (thermal) protection against overloads and Instantaneous (magnetic) protection against short circuits. Both settings are fixed on this model.
Can this 3VA4 breaker be reverse fed?
Yes, this molded case circuit breaker is suitable for reverse feed applications.
What is the maximum frame size for the 3VA41 series?
The 3VA41 frame supports a maximum current rating of 125A, though this specific breaker is factory-set for a 30A continuous current rating.
Is this breaker rated for use with heating, air conditioning, and refrigeration equipment?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration circuits. It is also HID rated for high-intensity discharge lighting applications.
