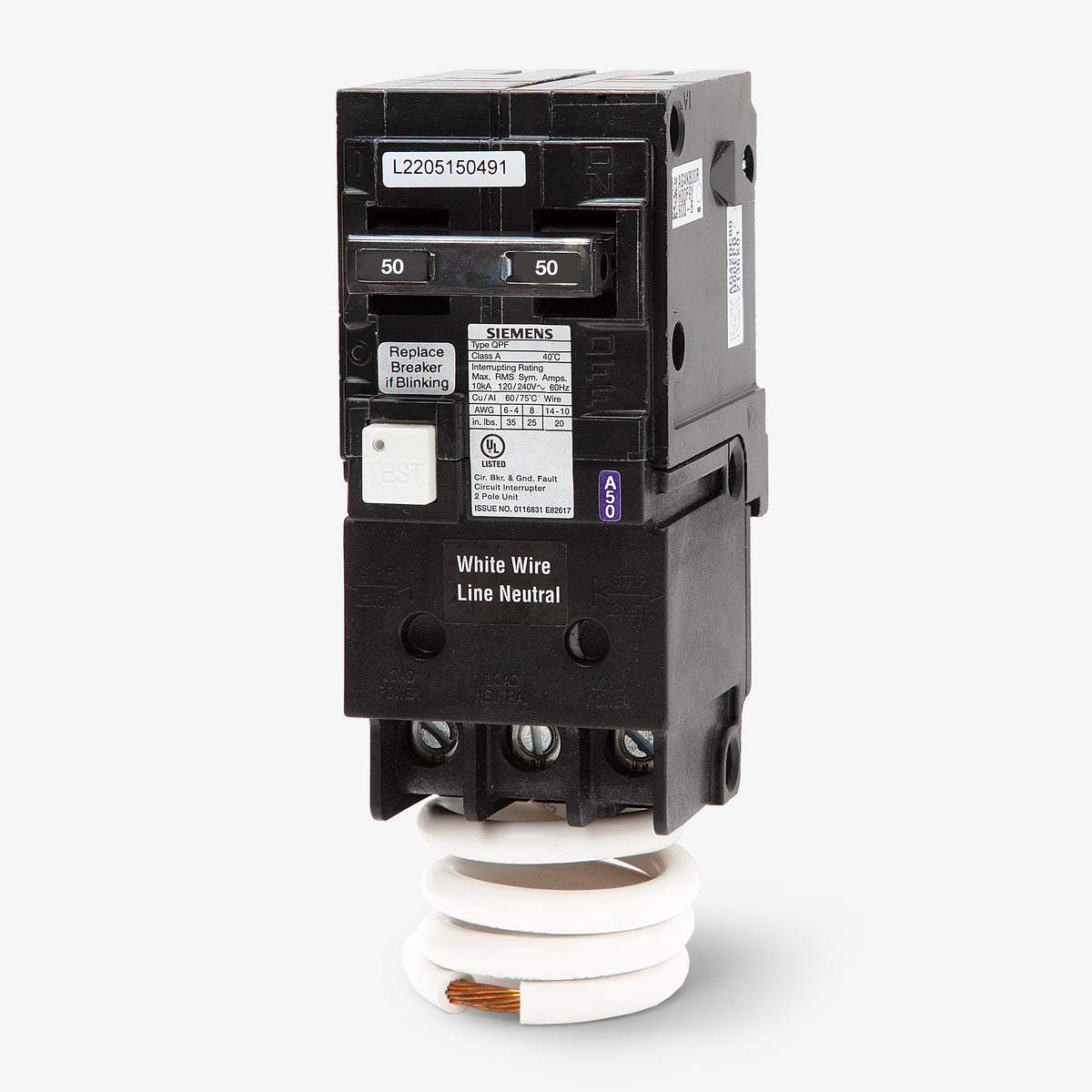

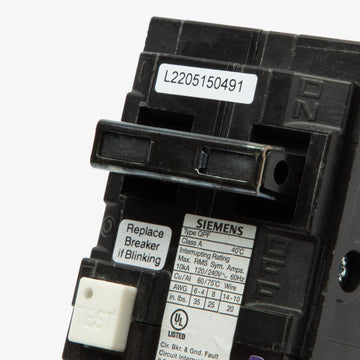

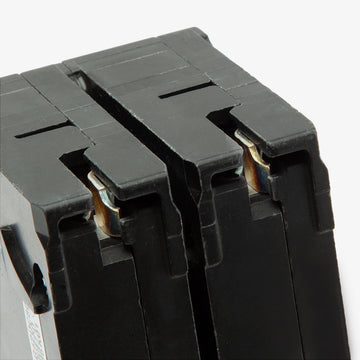

Siemens QF250 GFCI Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
Siemens
QF250
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF250 - 50A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens QF250 - 50A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QF250 |
| Series | QF |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens PL, ES, EQ, Ultimate Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral (Factory Installed) |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Sold out
Quantity
Siemens QF250 - 50A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QF250-R |
| Series | QF |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens PL, ES, EQ, Ultimate Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral (Factory Installed) |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Similar Items
45A GFCI Miniature Circuit Breaker
60A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description
Providing 5mA Class A personnel protection, this 50A GFCI breaker is essential for hot tubs, pools, and workshop environments. It mounts into Siemens PL, ES, EQ, and Ultimate load centers using a standard plug-on configuration. Rated for 10kAIC at 120/240VAC, the unit features a factory-installed pigtail neutral and common trip functionality. As a legacy component, this specific model is eventually replaced by the Q250GF, but remains a reliable choice for existing panel maintenance.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF250-R |
| Series | QF |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens PL, ES, EQ, Ultimate Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral (Factory Installed) |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Product FAQs
6 answersWhat load centers are compatible with the QF250?
This breaker installs into Siemens PL, ES, EQ, and Ultimate load centers using a standard plug-on connection. It is also compatible with many legacy ITE load centers that accept QP-type breakers.
What is the ground fault trip threshold for this breaker?
The QF250 provides Class A ground fault protection, meaning it is designed to trip when it detects a ground fault current imbalance of 4 to 6 milliamps.
How is the neutral connection handled during installation?
It features a factory-installed pigtail neutral wire. This white wire must be connected directly to the neutral bus bar in your load center for the ground fault protection to function correctly.
Does the load circuit require a neutral wire for the GFCI to work?
A load neutral is not strictly required on the circuit if you are running a straight 240V load. However, the breaker's white pigtail neutral must always be connected to the panel neutral for the internal GFCI sensor to operate.
Can this breaker be used for hot tubs and spas?
Yes, providing 5mA Class A personnel protection, this 50A GFCI breaker is commonly used for demanding wet-location applications like hot tubs, pools, and spas.
Is there a self-testing version of this breaker available?
Yes, Siemens has transitioned to newer models with automated self-test capabilities. The QF250A is the direct self-testing replacement for the legacy QF250.
