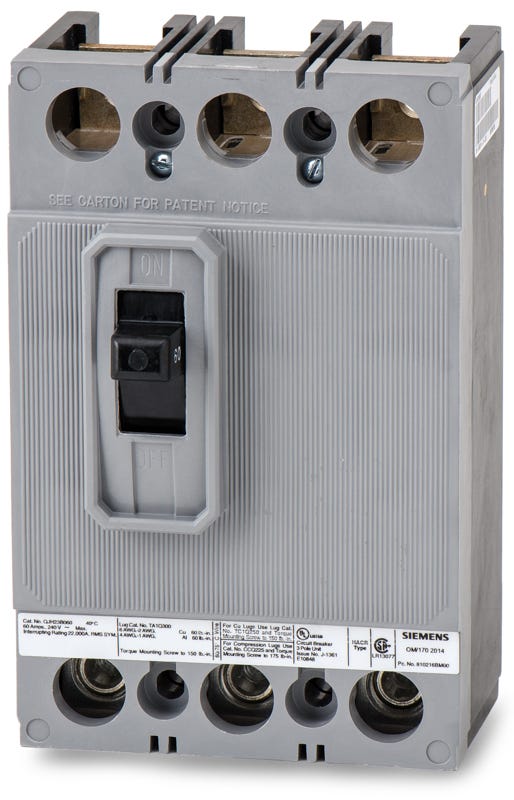

Siemens QJH23B060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
QJH23B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH23B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH23B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Operating within the Sentron QJ frame series, this 60-amp three-phase molded case circuit breaker delivers consistent long-time and instantaneous trip protection. The bolt-on configuration mounts into Siemens P1, P2, and P3 panelboards, along with various motor control centers. Rated for 22kA interrupting capacity at 240VAC, it includes factory-installed load side lugs and supports reverse feed applications for versatile commercial facility wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH23B060 |
| Series | QJH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhich Siemens panelboards accept the QJH23B060 circuit breaker?
The QJH23B060 is designed for installation in Siemens P1, P2, and P3 panelboards. It is also compatible with Siemens switchboards, motor control centers, and meter centers that accept QJ frame breakers.
How is the QJH23B060 installed in a panelboard?
This is a bolt-on molded case circuit breaker. The line side bolts directly to the panelboard bus bars, while the load side utilizes the factory-installed lug terminals for wire connections.
Can the Siemens QJH23B060 be used to replace older ITE breakers?
Yes, the Siemens QJH23B060 is a direct replacement for the legacy ITE QJH23B060. Siemens maintained the same QJ frame specifications and catalog numbers after acquiring ITE, ensuring drop-in compatibility.
What does the H in the QJH23B060 catalog number indicate?
In the Siemens QJ frame family, the H designates a high interrupting capacity. The QJH23B060 is rated for 22kA at 240V AC, whereas standard QJ2 breakers are rated for 10kA.
Is the QJH23B060 suitable for reverse feed applications?
Yes, thermal-magnetic molded case circuit breakers in the Siemens QJ frame series, including the QJH23B060, are suitable for reverse feed applications in commercial and industrial wiring.
Are the trip settings on the QJH23B060 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory set and non-interchangeable.
