ABB / General Electric THQL1115PAF2 AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
ABB / General Electric
THQL1115PAF2
AFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL1115PAF2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

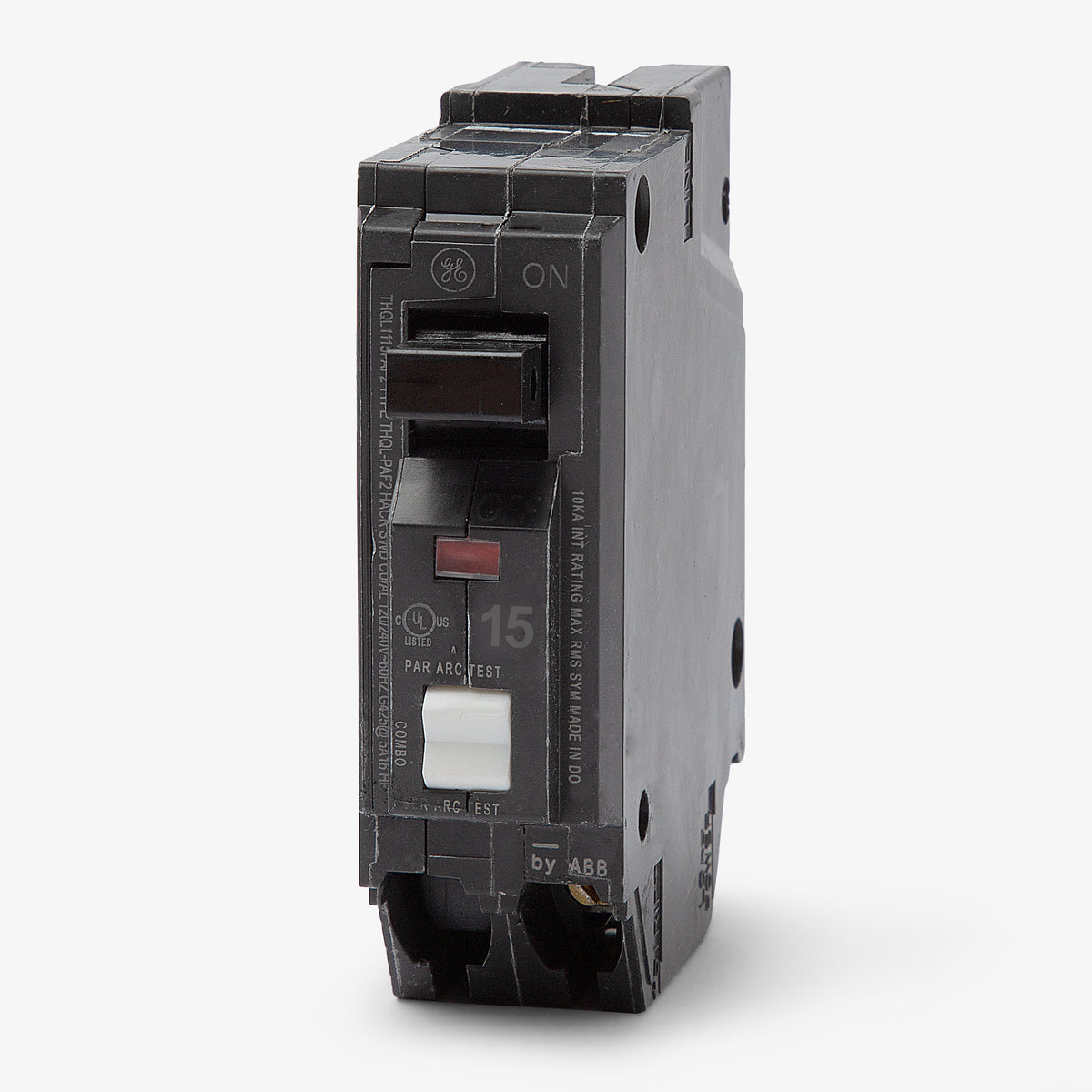

ABB / General Electric THQL1115PAF2 - 15A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL1115AF2
15A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1120AF2
20A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1120AF2S
20A AFCI Miniature Circuit Breaker
Description
Engineered for modern residential safety, the GE THQL1115PAF2 delivers comprehensive combination arc-fault mitigation to meet updated NEC standards. This 15-amp, single-pole unit utilizes an advanced plug-on neutral connection, which eliminates cumbersome pigtail wiring during installation. It mounts into compatible GE PowerMark Gold and ABB PowerMark PRO load centers equipped with plug-on neutral bars. The breaker includes built-in self-test functionality and carries a standard 10kAIC rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (Plug-on Neutral), ABB PowerMark PRO Load Centers, ABB ReliaHome Load Centers (Plug-on Neutral) |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | HACR, NEMA AB 1, SWD, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Product FAQs
7 answersCan I install the THQL1115PAF2 in an older GE load center without a plug-on neutral bar?
No. This breaker features a plug-on neutral connection and requires a compatible plug-on neutral load center, such as GE PowerMark Gold PON, ABB PowerMark PRO, or ABB ReliaHome PON panels. For older panels without a plug-on neutral rail, you must use the pigtail version, catalog number THQL1115AF2.
Is this breaker compatible with non-GE or non-ABB panels?
No. The THQL1115PAF2 is specifically designed and UL listed for use only in compatible ABB and GE Q-Line plug-on neutral load centers.
What is the difference between the THQL1115PAF2 and the THQL1115AF2?
The THQL1115PAF2 features a plug-on neutral connection that snaps directly onto the neutral bar in compatible panels, eliminating the need for a neutral wire pigtail. The THQL1115AF2 includes a traditional coiled neutral pigtail for panels that do not support plug-on neutral breakers.
Does the THQL1115PAF2 replace the THQL1115PDF?
No. The THQL1115PAF2 is a Combination Arc Fault Circuit Interrupter (AFCI) only. The THQL1115PDF is a Dual Function breaker that provides both AFCI and Ground Fault (GFCI) protection.
What type of arc fault protection does the THQL1115PAF2 provide?
This breaker is a Combination Arc Fault Circuit Interrupter (CAFCI). It is designed to detect and mitigate both high-energy parallel arcs and low-energy series arcs to help prevent electrical fires on residential branch circuits.
Does this breaker provide ground fault (GFCI) protection?
No. The THQL1115PAF2 provides Combination AFCI protection and standard thermal-magnetic overcurrent protection. If your circuit requires both AFCI and GFCI protection, you will need a dual-function breaker.
How does the plug-on neutral design benefit the installation?
The plug-on neutral design eliminates the need to route and terminate a separate neutral pigtail wire to the panel neutral bar. This saves installation time and reduces wire clutter in the load center gutter.
