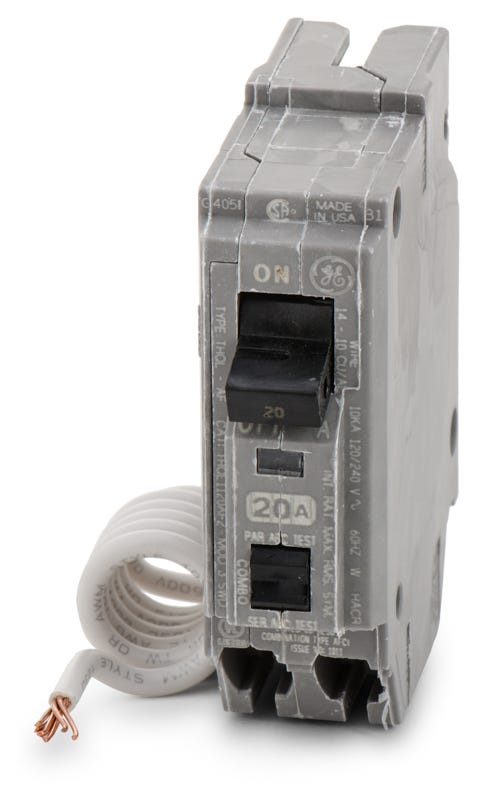

ABB / General Electric THQL1120AF2 AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
ABB / General Electric
THQL1120AF2
AFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL1120AF2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL1120AF2 - 20A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL1120AF2 - 20A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1120AF2 |
| Series | THQL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, SWD, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Sold out
Quantity
ABB / General Electric THQL1120AF2 - 20A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | THQL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, SWD, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Similar Items
ABB / General ElectricTHQL1120AFP2
20A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1115AF2
15A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1115AF
15A AFCI Miniature Circuit Breaker
Description
Engineered to safeguard residential branch circuits, this 20A combination AFCI breaker identifies dangerous arcing faults before they cause structural fires. It utilizes a standard pigtail neutral connection for reliable operation. Installation is straightforward within ABB ReliaHome, GE Q-Line, and PowerMark Gold panels. Facility managers frequently use this model to replace discontinued THQL1120AF breakers. Rated for 10kAIC, it includes HACR and SWD certifications for switching applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1120AF2 |
| Series | THQL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, SWD, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
8 answersCan I use the THQL1120AF2 in a GE PowerMark Gold load center?
Yes, this breaker is fully compatible with GE PowerMark Gold, GE Q-Line, and ABB ReliaHome load centers.
Is this breaker interchangeable with GE THQP types?
No. The THQL1120AF2 is a full-size 1-inch wide breaker. THQP breakers are half-inch wide and use a different mounting configuration, so they cannot be used interchangeably.
Does the THQL1120AF2 require a plug-on neutral panel?
No, this model features a standard pigtail neutral wire that connects directly to the neutral bus bar. This makes it suitable for older panels that do not support plug-on neutral breakers.
Are ABB and GE THQL1120AF2 breakers the same?
Yes. ABB acquired GE Industrial Solutions, so THQL breakers branded as ABB or General Electric are the exact same product and are fully interchangeable.
What is the difference between the THQL1120AF2 and the THQL1120PAF2?
The THQL1120AF2 uses a pigtail neutral wire for installation, while the THQL1120PAF2 is a plug-on neutral version that requires a compatible plug-on neutral load center.
What type of arc fault protection does the THQL1120AF2 provide?
This is a combination AFCI breaker. It is designed to detect and mitigate both parallel and series arcing faults to help prevent electrical fires, meeting current National Electrical Code (NEC) requirements for residential branch circuits.
Does this model replace the older THQL1120AF?
Yes, the THQL1120AF2 is the direct replacement for the discontinued THQL1120AF, offering updated combination arc fault protection.
Is this breaker rated for switching applications?
Yes, it carries SWD (Switching Duty) and HACR (Heating, Air Conditioning, and Refrigeration) ratings, meaning it can be used to switch 120V fluorescent lighting loads and protect HVAC equipment.
