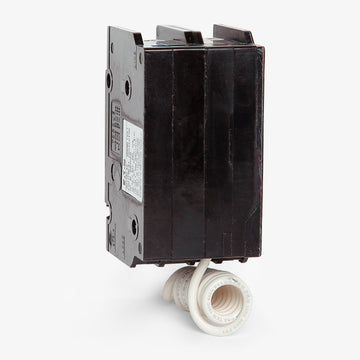

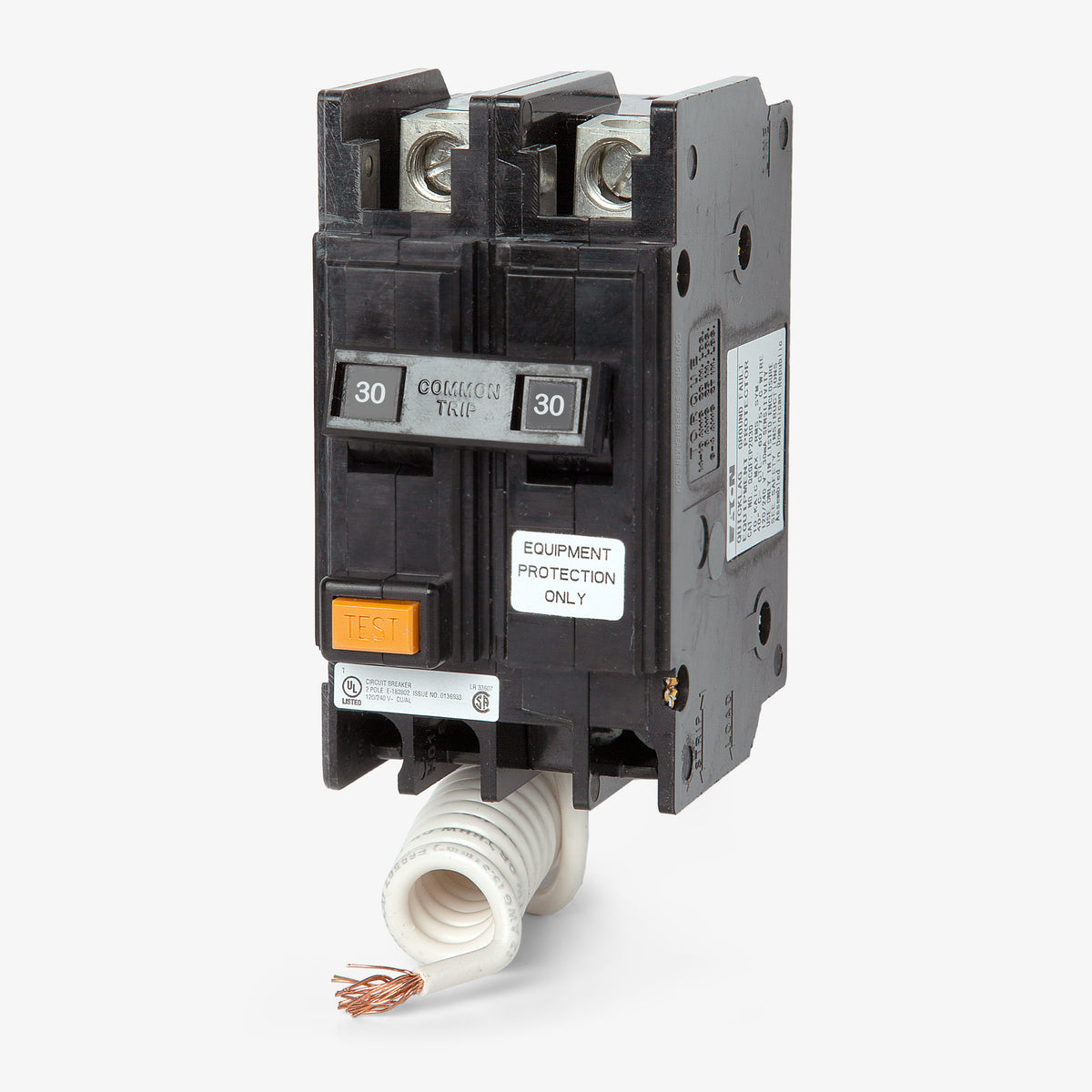

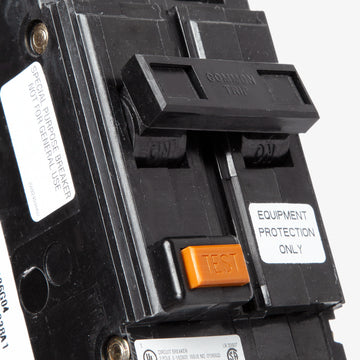

Eaton / Cutler-Hammer QCGFEP2030T GFEP Miniature Circuit Breaker
- 30A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCGFEP2030T
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCGFEP2030T
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCGFEP2030T - 30A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQCGFEP2040
40A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2020
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2015
15A GFEP Miniature Circuit Breaker
Description
Built for commercial applications, the Eaton QCGFEP2030T provides dedicated equipment ground-fault protection. Its 30mA trip sensitivity safeguards machinery from damaging fault currents, distinguishing it from 5mA personnel GFCI devices. This two-pole, 30A breaker mounts into Eaton Quicklag panelboards. It features a panel-mount design and stud/tapped pad connections for ring terminals. Rated 10 kAIC at 120/240 VAC, the thermal-magnetic unit is HACR rated and CSA certified.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QCGFEP2030T |
| Series | QCGFEP |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | Eaton Quicklag Panelboards, Quicklag Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, DIN Rail Adapter |
| Accessories | Ring Terminal Connection |
| Standards | CSA C22.2 No. 5, HACR, UL 1053, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 30mA Trip Sensitivity |
Product FAQs
6 answersWhich panelboards accept the QCGFEP2030T circuit breaker?
This breaker is designed for installation in Eaton Quicklag panelboards and Quicklag enclosures.
What is the ground fault trip sensitivity for the QCGFEP series?
The QCGFEP2030T features a 30mA trip sensitivity. This is classified as Ground Fault Equipment Protection (GFEP) to safeguard machinery, distinguishing it from 5mA Class A GFCI devices.
How is the neutral connection established on this breaker?
The QCGFEP2030T is equipped with a pigtail neutral wire that must be routed and secured to the neutral bus bar within the panelboard.
What does the T suffix indicate on the QCGFEP2030T catalog number?

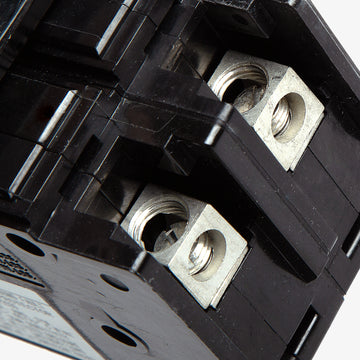

The T designates stud or tapped pad terminals. This configuration is designed to accept ring terminals for secure feed-thru or cable-in/cable-out wiring connections.
Can this GFEP breaker be used in place of a standard GFCI breaker?
No. Because it operates at a 30mA trip threshold for equipment protection, it does not meet the 5mA personnel protection requirements mandated by the National Electrical Code (NEC) for standard GFCI circuits.
Are Eaton and Cutler-Hammer QCGFEP2030T breakers the exact same component?
Yes. Following Eaton's acquisition of Cutler-Hammer, the QCGFEP2030T catalog number remains identical and is used interchangeably across both brand names for this Quicklag breaker.
