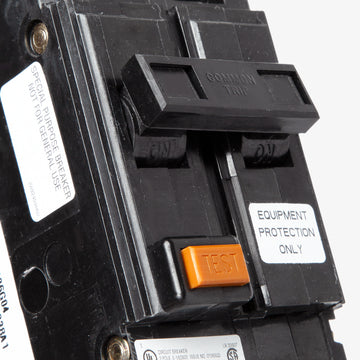

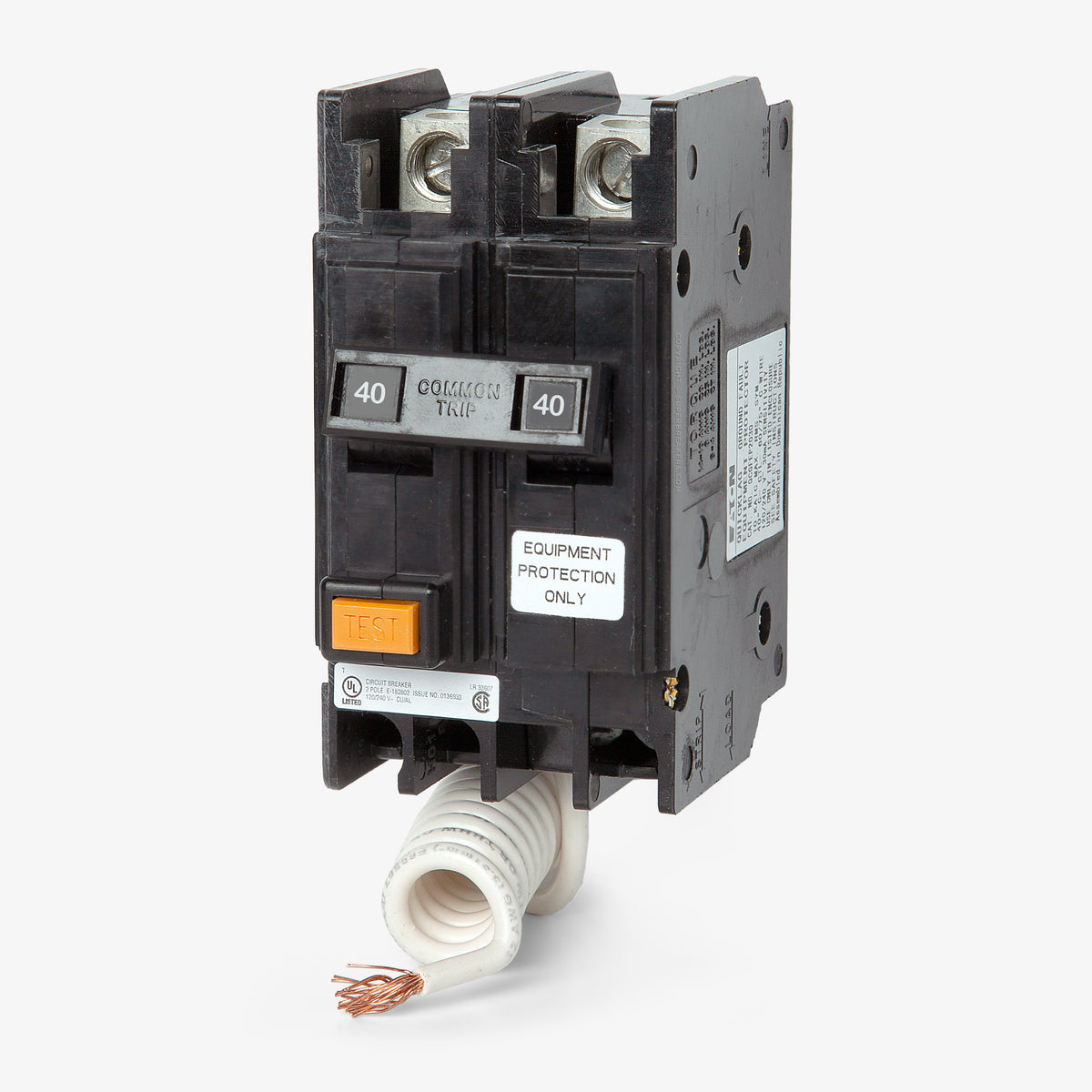

Eaton / Cutler-Hammer QCGFEP2040 GFEP Miniature Circuit Breaker
- 40A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCGFEP2040
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCGFEP2040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCGFEP2040 - 40A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQCGFEP2030
30A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2020
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2015
15A GFEP Miniature Circuit Breaker
Description
Part of the Quicklag family, the Eaton QCGFEP2040 is a 40A equipment protection breaker for commercial use. It provides a 30mA ground-fault threshold, calibrated to protect machinery rather than personnel. The two-pole unit installs into Eaton Quicklag panelboards. It features a panel-mount configuration and includes box lugs for 14-4 AWG conductors. Delivering a 10 kAIC rating at 120/240 VAC, this thermal-magnetic breaker is HACR rated for HVAC systems.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | QCGFEP |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Quicklag Panelboards, Quicklag Enclosures |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, DIN Rail Adapter |
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 1053, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 30mA Trip Sensitivity |
Product FAQs
7 answersWhat is the ground-fault trip sensitivity for the QCGFEP2040?
This Ground Fault Equipment Protection (GFEP) breaker features a 30mA trip sensitivity. It is calibrated to protect machinery, pumps, and heat trace circuits from ground faults, rather than providing the 5mA personnel protection found in Class A GFCI breakers.
Can the QCGFEP2040 be used for personnel ground-fault protection?
No. This is an equipment protection breaker with a 30mA trip threshold. It is not a Class A GFCI and must not be used in applications requiring 5mA personnel protection, such as residential bathrooms, pools, or kitchens.
What panels and enclosures are compatible with the QCGFEP2040?
This breaker is designed specifically for use with Eaton Quicklag panelboards and Quicklag enclosures.
How is the QCGFEP2040 mounted and wired?

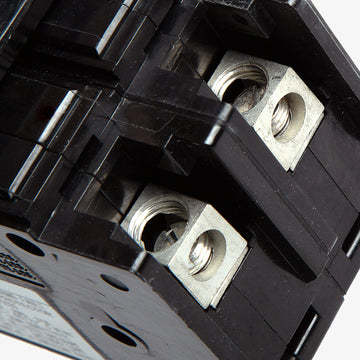

It features a cable-in/cable-out connection and is designed for panel-mount applications. The breaker includes box lug terminals that accept 14 AWG to 4 AWG aluminum or copper conductors.
Does this breaker require a neutral connection to operate?

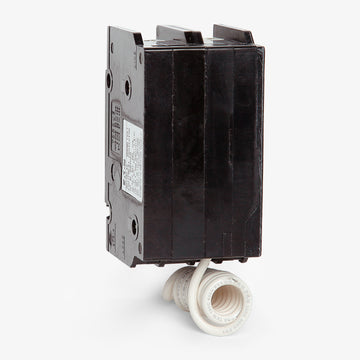

Yes, the QCGFEP2040 includes a pigtail neutral wire. This pigtail must be connected directly to the neutral bus bar in the panel to power the internal ground-fault sensing circuitry.
What type of trip mechanism does the QCGFEP2040 use?
It utilizes a fixed thermal-magnetic trip unit that provides long-time overload protection, instantaneous short-circuit protection, and ground-fault sensing.
Is the QCGFEP2040 suitable for HVAC applications?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires ground-fault equipment protection.
