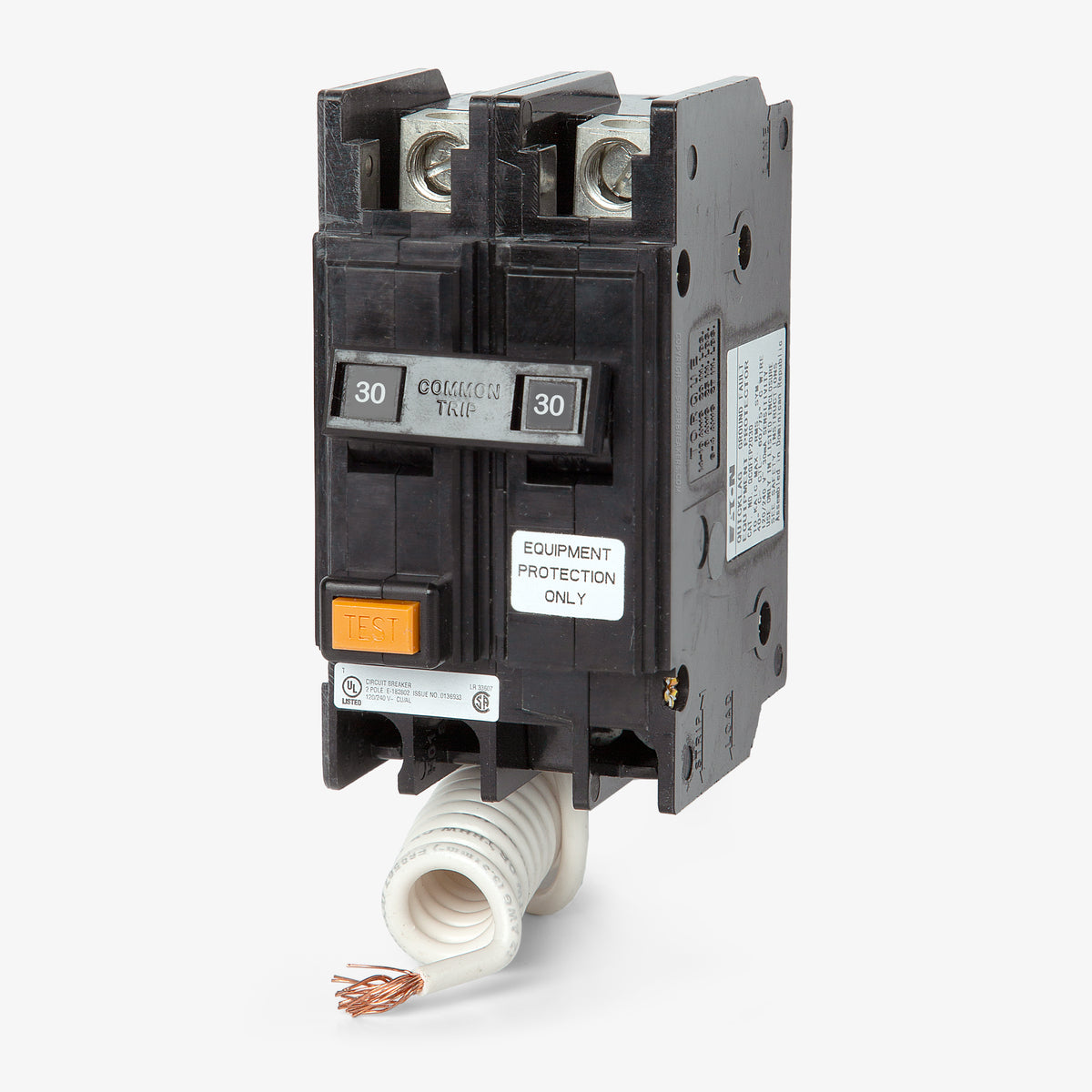

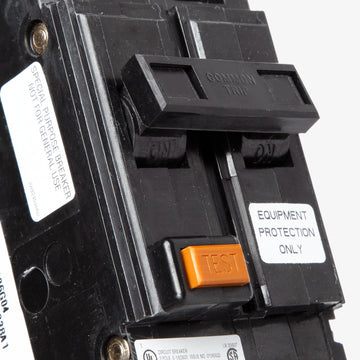

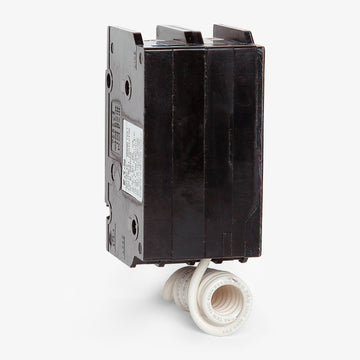

Eaton / Cutler-Hammer QCGFEP2030 GFEP Miniature Circuit Breaker
- 30A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCGFEP2030
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCGFEP2030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCGFEP2030 - 30A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQCGFEP2020
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2015
15A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2050
50A GFEP Miniature Circuit Breaker
Description
Rated 10 kAIC at 120/240VAC, this 30A Eaton QCGFEP2030 breaker delivers reliable ground fault equipment protection. With a 30mA trip threshold, it is engineered to protect commercial machinery and heating equipment without the nuisance tripping associated with 5mA personnel GFCIs. This 2-pole thermal-magnetic breaker features a cable-in/cable-out panel mount configuration for Eaton Quicklag panelboards. The HACR-rated unit includes box lug terminals accepting 14-4 AWG aluminum or copper wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QCGFEP2030 |
| Series | QCGFEP |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QC |
|---|---|

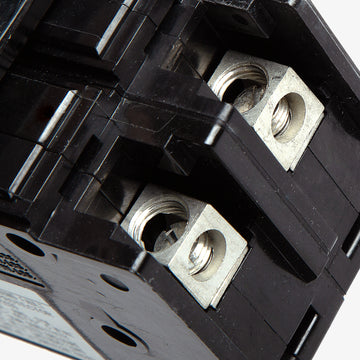

| Terminal Type | Box Lugs |
| For Use With | Eaton Quicklag Panelboards, Quicklag Enclosures |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, DIN Rail Adapter |
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 1053, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat is the ground fault trip sensitivity for the QCGFEP2030?
This Ground Fault Equipment Protection (GFEP) breaker has a 30mA trip threshold. It is designed to protect equipment like heat trace cables and pumps from damaging ground faults without the nuisance tripping associated with 5mA personnel protectors.
Can I use this GFEP breaker for personnel protection in bathrooms or kitchens?
No. The QCGFEP2030 is an equipment protection breaker with a 30mA trip level. It does not provide the 5mA Class A personnel protection required by the NEC for receptacles in bathrooms, kitchens, or similar locations.
How does the QCGFEP2030 connect to the circuit?
This QC frame breaker utilizes a cable-in/cable-out connection type. It mounts by snapping into a dedicated QC mounting base plate and is secured with screws.
How is the neutral connection handled on this breaker?
It features a pigtail neutral wire that must be connected directly to the neutral bar in the panelboard to ensure proper ground fault detection.
Which panelboards are compatible with the QCGFEP2030?
This breaker is designed for use in Eaton Quicklag panelboards and Quicklag enclosures that accept QC frame cable-in/cable-out breakers.
Is the QCGFEP2030 interchangeable with standard plug-on breakers?
No. The QC series uses a specific cable-in/cable-out mounting style and is non-interchangeable with standard plug-on or bolt-on breakers like the Eaton BR or BAB series.
What does the LIG trip function code indicate on this breaker?
The LIG designation means this thermal magnetic breaker includes Long-Time, Instantaneous, and Ground Fault trip functions. Long-Time handles standard overloads, Instantaneous responds to short circuits, and Ground Fault provides 30mA equipment protection.
