Eaton / Cutler-Hammer BQ225225 - 25/25A Quadplex Miniature Circuit Breaker

New

$71.40 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

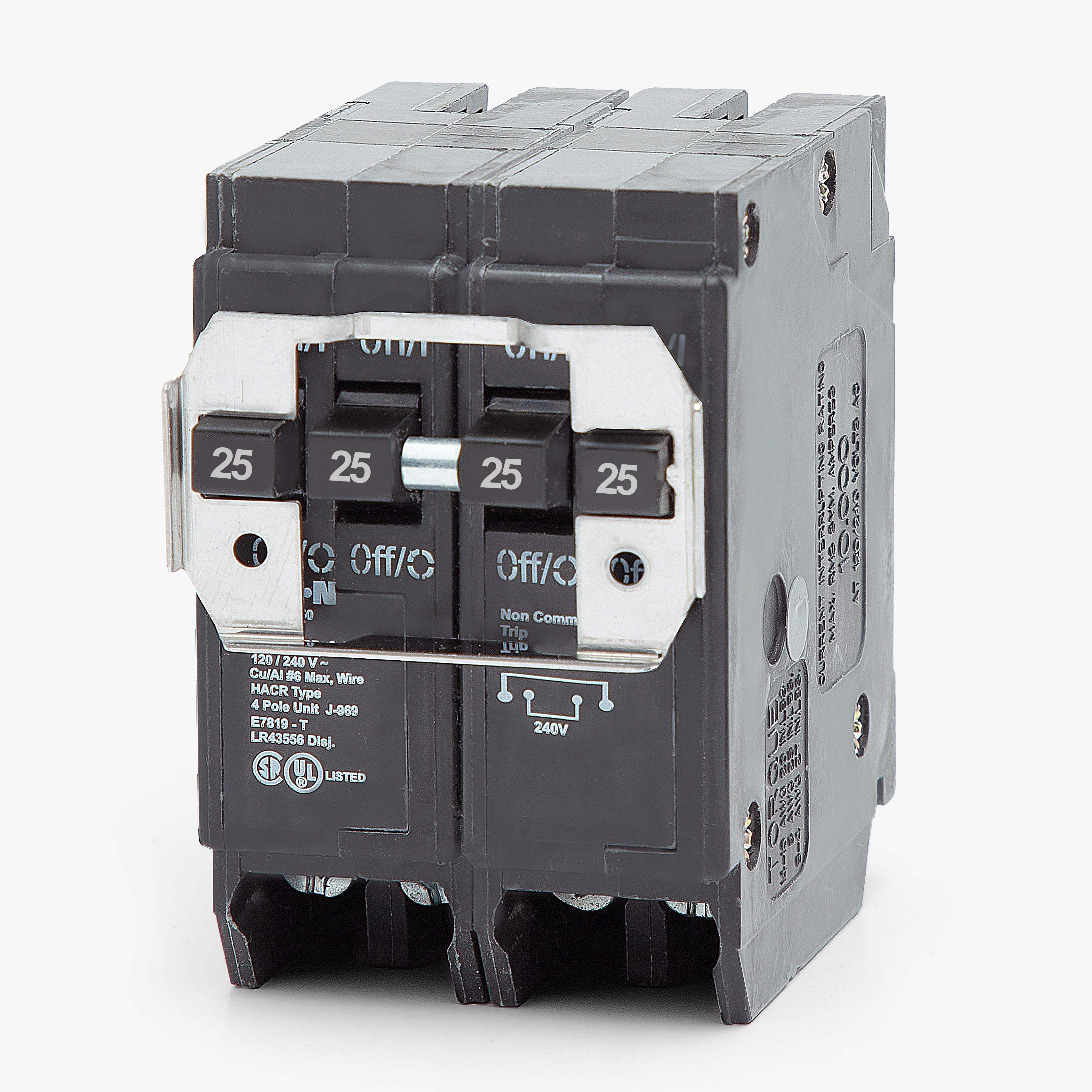

Built to optimize panel capacity, the Eaton BQ225225 delivers two independent 25A two-pole circuits in a single quadplex package. This fits four poles of protection into a compact footprint. The unit occupies just two standard one-inch spaces. It is compatible with modern Eaton BR load centers, and replaces older Bryant, Challenger, and Westinghouse breakers. With a 10 kAIC rating at 120/240V, it provides robust thermal-magnetic protection.

Specifications

Brand Eaton / Cutler-Hammer
Series BQ
Amperage 25/25A
Voltage 120/240VAC
Poles 4
Phase 1
AIC Rating 10kA @ 120/240VAC
Special Classification Quadplex
Mounting Style Plug-On
Terminal Type Box Lugs
For Use With Eaton BR Load Centers, Westinghouse Load Centers, Bryant Load Centers, Challenger Load Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge #14-4 AWG Cu/Al
Max Wire 4 AWG
Min Wire 14 AWG
Available Options Handle Tie, Handle Lock, Padlock Attachment
Accessories Rejection Tab
Standards CSA C22.2 No. 5, Federal Specification W-C375, UL 489
Approval CSA, HACR, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, Rejection Tab
