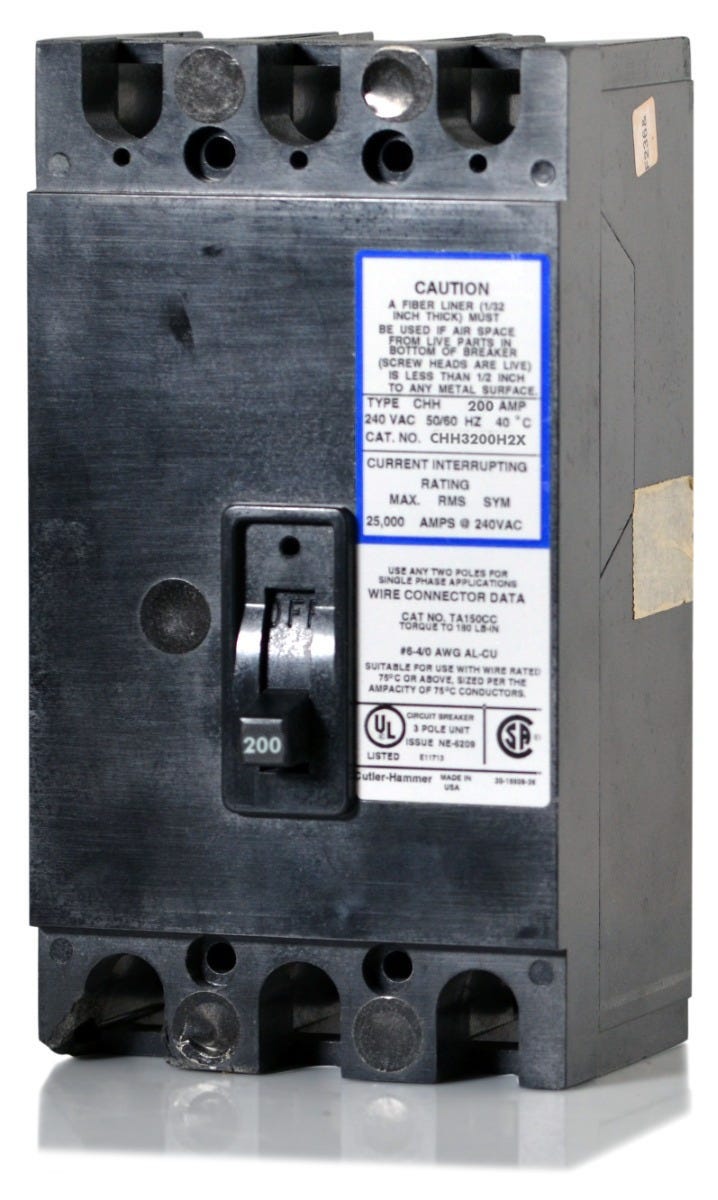

Eaton / Cutler-Hammer CHH3200H2X Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHH3200H2X
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHH3200H2X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHH3200H2X - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH3150H2X
150A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial modular metering, this 200-amp thermal-magnetic breaker provides essential long-time and instantaneous trip functions. It fits perfectly into Eaton 37MM and 37SS series metering stacks to serve as a tenant main disconnect. With a 25kA short-circuit current rating at 208Y/120VAC, it handles standard commercial loads safely. For modern upgrades or replacements, this specific model transitions to the CVS3200X.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3200H2X |
| Series | CHH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated |
Product FAQs
6 answersWhat equipment is the Eaton CHH3200H2X circuit breaker designed to fit?
This breaker is specifically designed for use as a tenant main disconnect in Eaton 37MM and 37SS three-phase modular metering stacks.
How does the CHH3200H2X mount into the metering stack?
It features a bolt-on connection for secure installation directly into compatible Eaton modular metering enclosures.
Is the CHH3200H2X suitable for high fault current applications?
It is rated for up to 25 kAIC at 120/208Y VAC, making it suitable for standard commercial modular metering applications that do not exceed this available fault current.
What size wire can be used with the load side lugs on the CHH3200H2X?
The included load side lugs accept copper or aluminum conductors ranging from #2 AWG to 300 kcmil.
What type of trip unit does the CHH3200H2X use?
It utilizes a fixed thermal-magnetic trip unit that provides both long-time and instantaneous (LI) protection against overloads and short circuits.
Are there any direct replacements or newer models for the CHH3200H2X?
For modern upgrades or replacements in certain metering applications, Eaton transitions this specific model to the CVS3200X.
