Eaton / Cutler-Hammer FS220015A Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
FS220015A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS220015A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS220015A - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer FS220015A - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS220015A |
| Series | FS |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Quantity
Eaton / Cutler-Hammer FS220015A - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | FS |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Similar Items

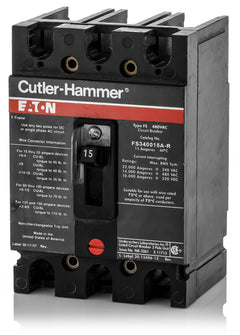

Eaton / Cutler-HammerFS340015A
15A 3 Pole Molded Case Circuit Breaker
1 Pole Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Eaton FS220015A is a 2-pole, 15A Series C F-Frame MCCB. It provides long-time and instantaneous (LI) trip functions. This bolt-on breaker mounts into Eaton Series C panelboards and switchboards. It serves as a replacement for older units and is superseded by the FD2015. Rated at 22kAIC at 240VAC, it features a non-interchangeable thermal-magnetic trip unit. The breaker is factory sealed and HACR rated for HVAC applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS220015A |
| Series | FS |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Product FAQs
7 answersWhat panelboards are compatible with the FS220015A?
This F-Frame breaker is designed for use in Eaton and Cutler-Hammer Series C panelboards, switchboards, and compatible standalone enclosures.
What wire gauge is supported by the terminals on this breaker?
The factory-installed line and load lugs accept 14 AWG through 1/0 AWG copper or aluminum (Cu/Al) conductors.
Can the FS220015A be used in direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for DC applications, providing a 10kA interrupting capacity at 250VDC.
Are the trip settings adjustable on this F-Frame breaker?
No, the trip unit features fixed thermal and fixed magnetic settings. It is a non-interchangeable unit that cannot be modified in the field.
What is the direct replacement or cross-reference for the FS220015A?
This specific Series C breaker is frequently superseded by the Eaton FD2015. Electricians should verify that the interrupting rating and mounting style match the requirements of the existing panel before substituting.
Does this breaker include arc fault or ground fault protection?
No, the FS220015A provides standard long-time and instantaneous (LI) thermal-magnetic protection. It does not contain AFCI, GFCI, or equipment ground fault (EPD) circuitry.
How is a feed-thru breaker like the FS220015A mounted?
As a feed-thru breaker, it features lugs on both the line and load sides. It bolts directly to a mounting pan or bracket within the enclosure and uses wired connections for both incoming and outgoing power.
