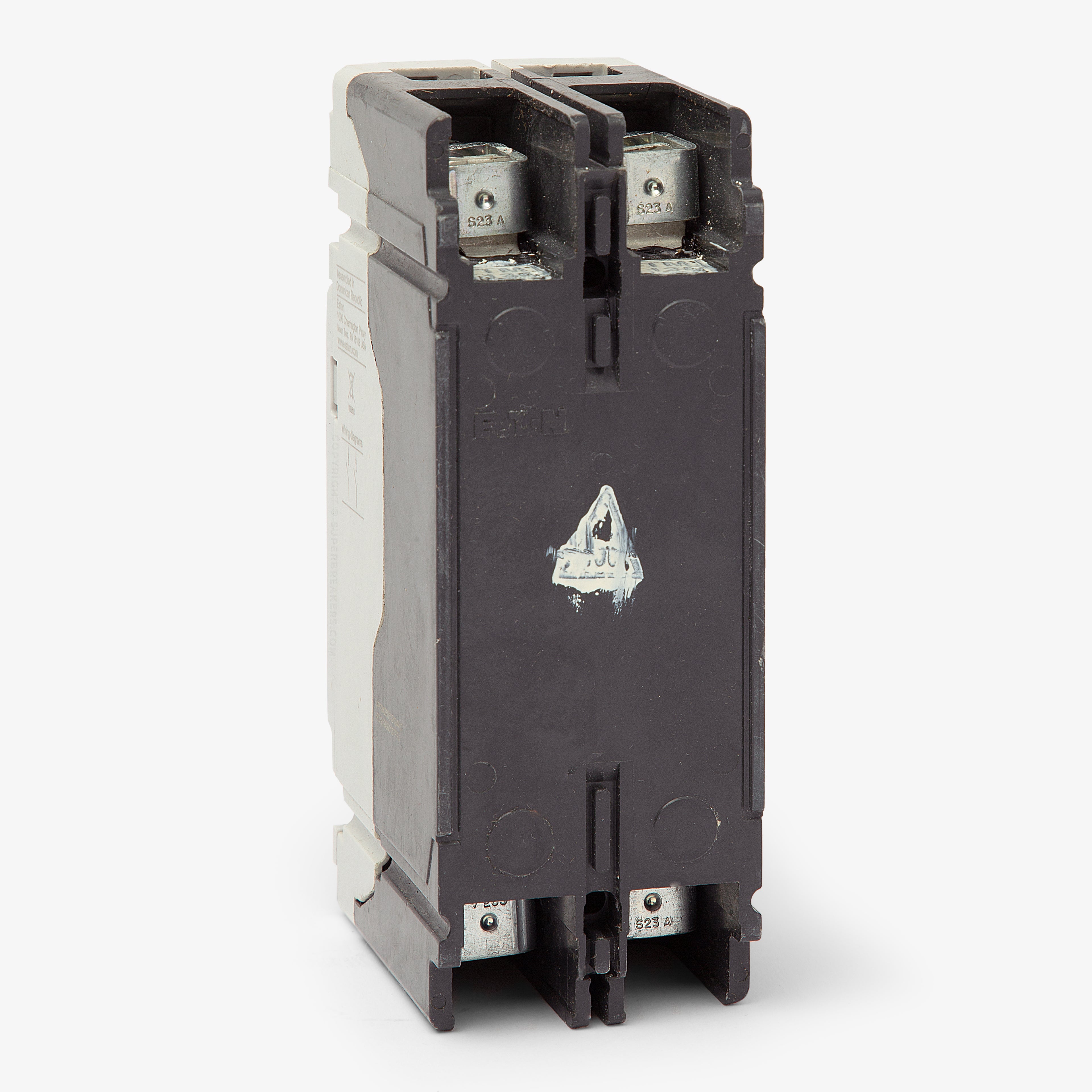

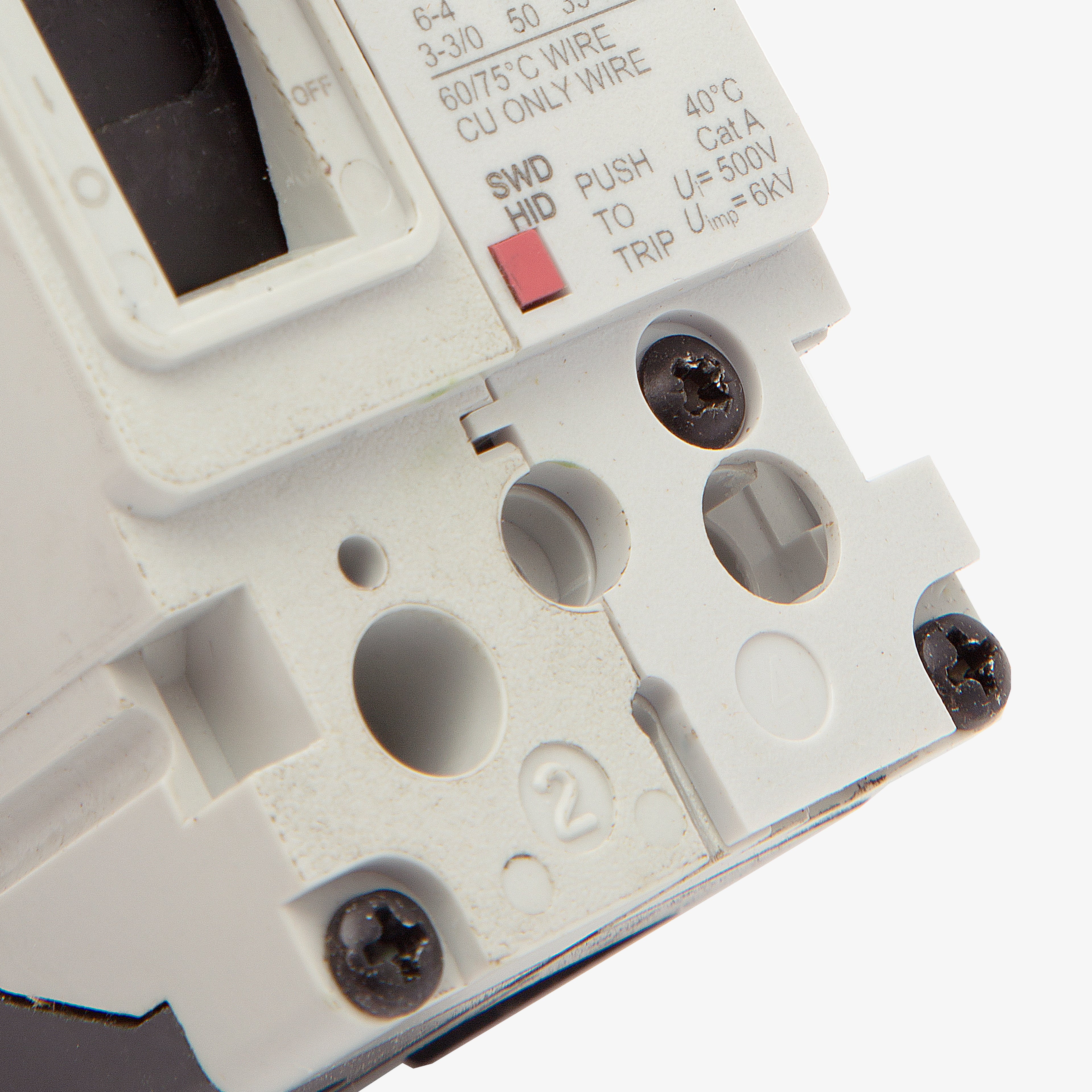

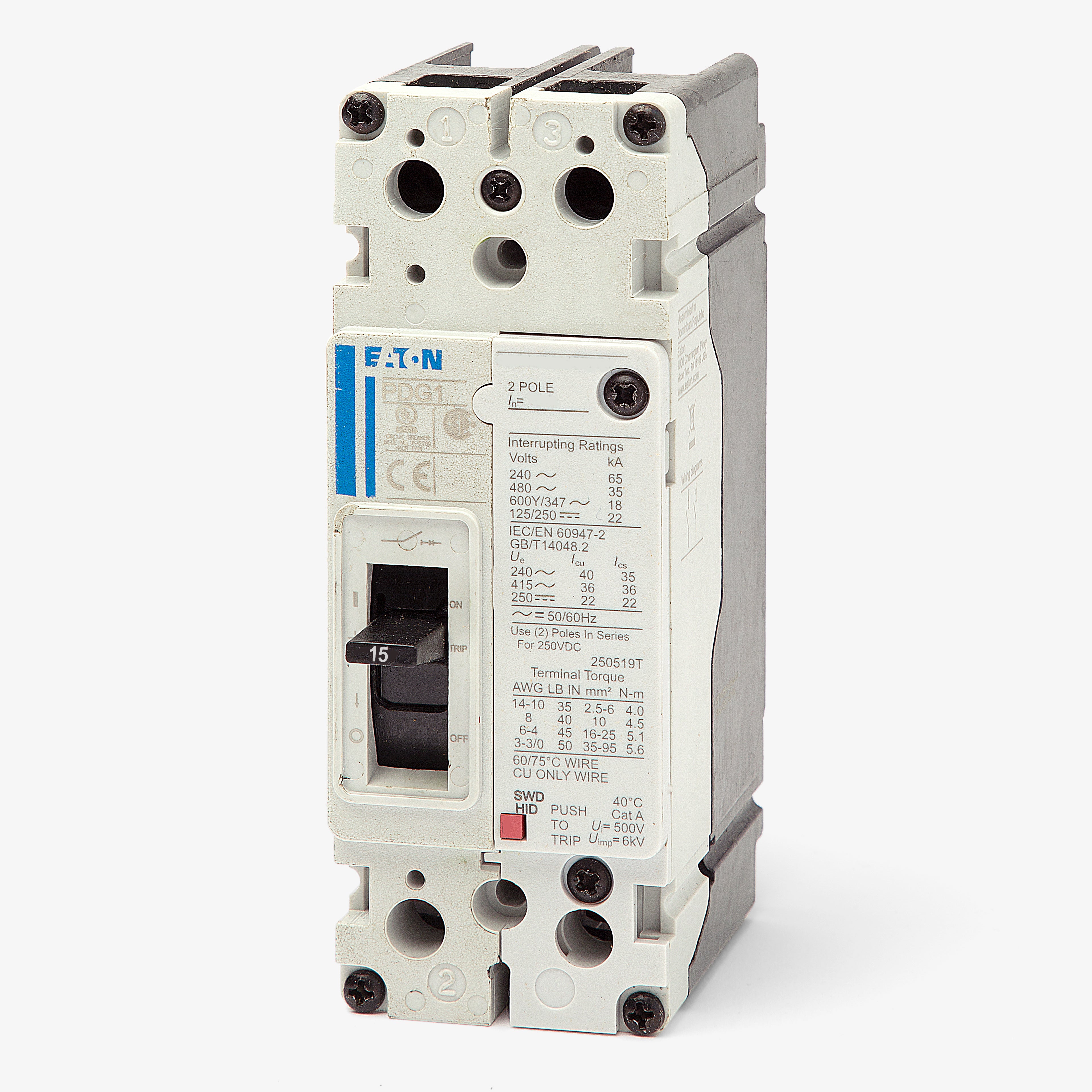

Eaton / Cutler-Hammer PDG12C0015TFFJ - 15A 2 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU PDG12C0015TFFJ
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Eaton / Cutler-Hammer PDG12C0015TFFJ - 15A 2 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU PDG12C0015TFFJ
Select Item Condition
Earn 522 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer PDG12C0015TFFJ - 15A 2 Pole Molded Case Circuit Breaker

New

$522.00 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Operating within the Power Defense Frame 1 family, this 15A two-pole MCCB delivers essential fixed thermal and magnetic (LI) trip functions for commercial facilities. It serves as a seamless replacement for older EGB2015FFG models, mounting into compatible Eaton switchboards and panelboards. Delivering an 18kAIC rating at 480VAC, the globally rated component features current-limiting capabilities. Standard box lugs accommodate 14 to 3/0 AWG wiring for versatile industrial integration.

Specifications

Brand Eaton / Cutler-Hammer
Series PDG1
Amperage 15A
Voltage 240VAC, 480VAC, 600Y/347VAC, 250VDC
Poles 2
Phase 1
AIC Rating 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC
Mounting Style Panel Mount

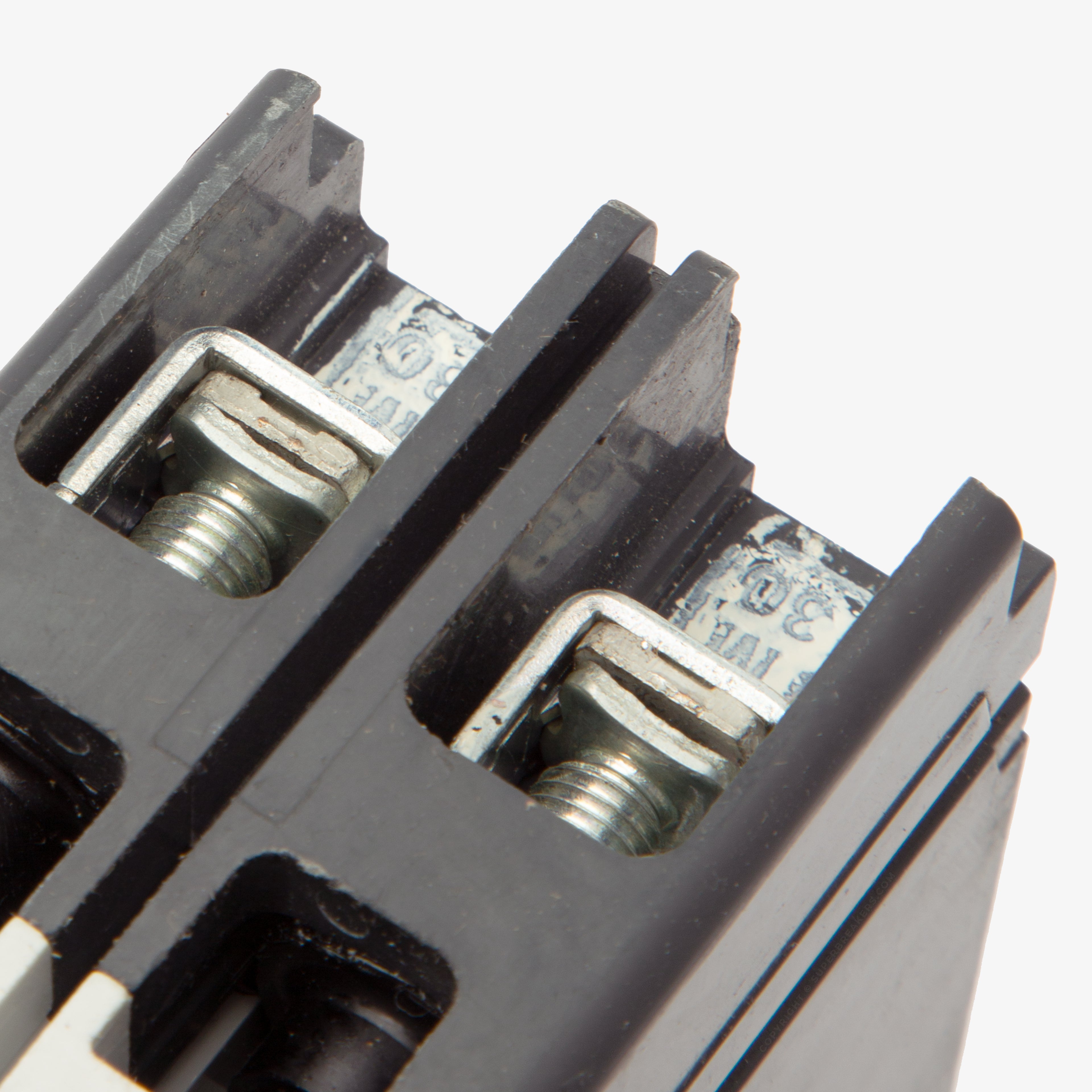

Terminal Type Box Lugs
For Use With Eaton Power Defense Panelboards, Enclosures, Switchboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14 AWG - 3/0 AWG
Max Wire 3/0 AWG
Min Wire 14 AWG
Available Options Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Handle Lock, Multi-Wire Lugs
Accessories Line and Load Lugs (PDG1X2T125)
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS
Approval CCC, CE, CSA, IEC, RoHS, UL
Temp Rating -20C to 70C
Construction Features RoHS Compliant, HACR Rated
