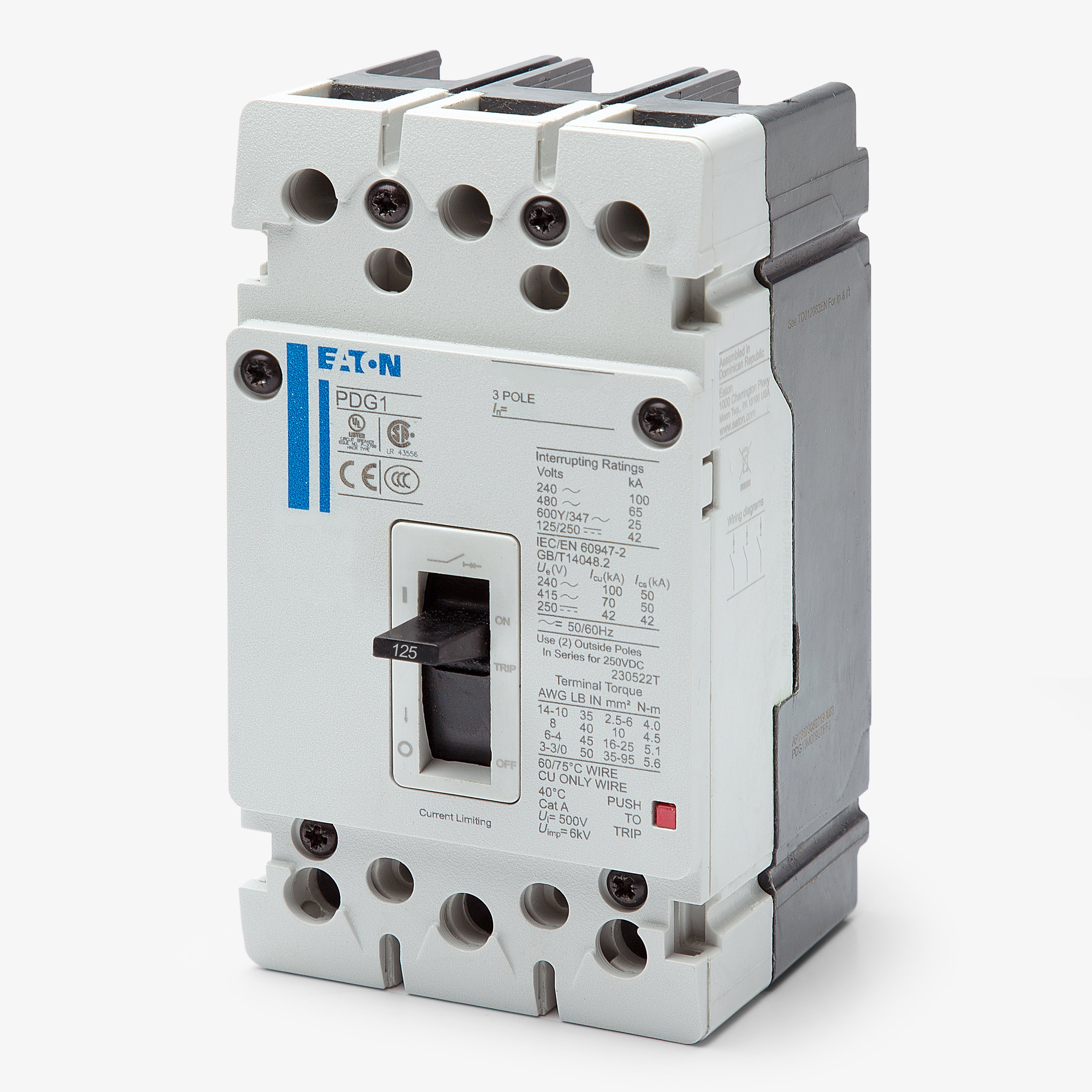

Eaton / Cutler-Hammer PDG13M0125TFFJ Molded Case Circuit Breaker
- 125A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13M0125TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13M0125TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13M0125TFFJ - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Eaton PDG13M0125TFFJ is a 3-pole, 125A molded case circuit breaker from the Power Defense family. It provides reliable fixed thermal and magnetic protection for demanding electrical systems. This Frame 1 MCCB installs into Eaton Power Defense panelboards and enclosures. With a retrofit kit, it serves as a seamless upgrade for legacy HFD3125 breakers. Rated 65kAIC at 480VAC, this current-limiting breaker includes standard line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Terminal Shields, Interphase Barriers |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, Globally Rated, RoHS Compliant |
Product FAQs
8 answersWhat equipment is the PDG13M0125TFFJ compatible with?
This Frame 1 breaker is designed for installation in Eaton Power Defense panelboards, switchboards, and enclosures.

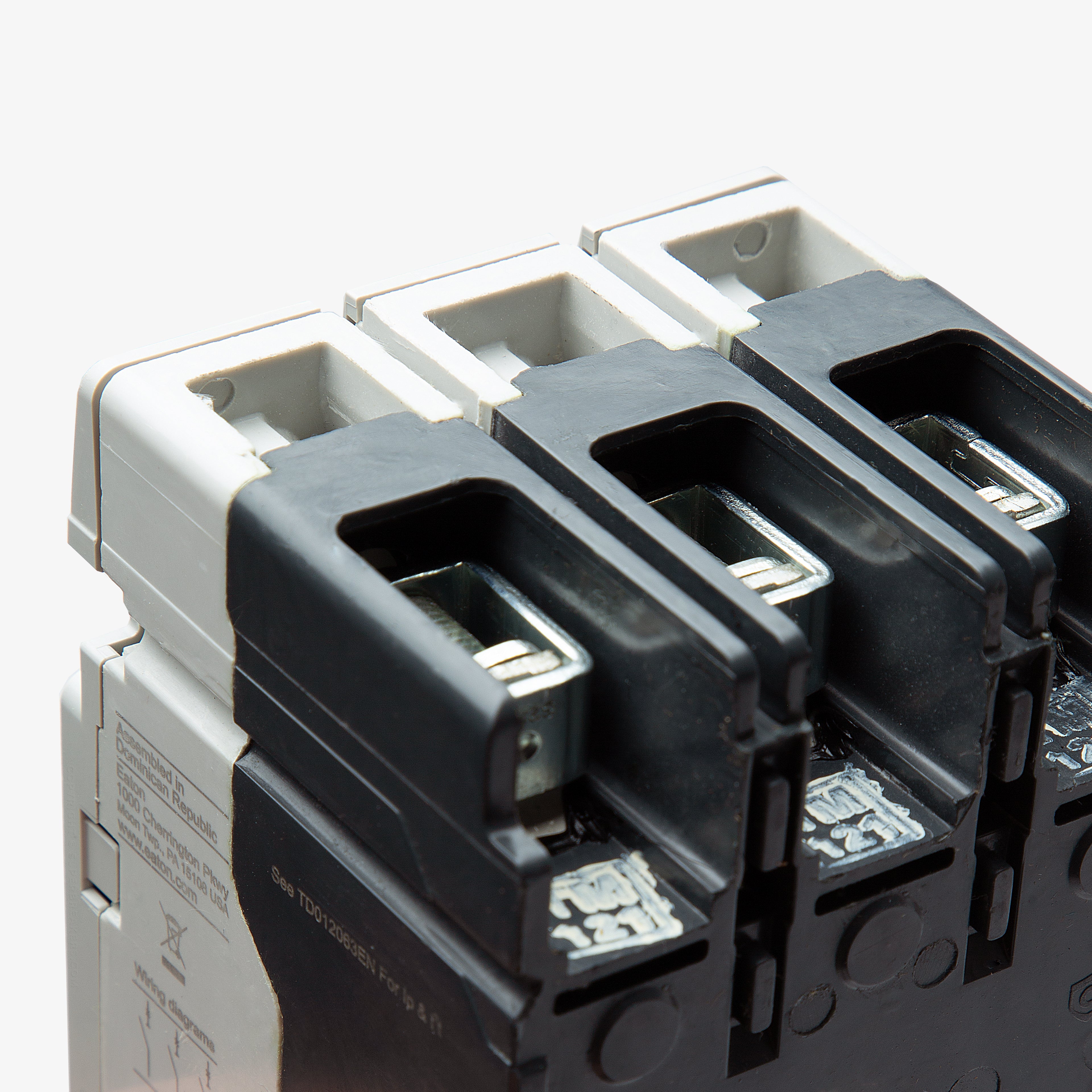

What wire size and conductor material do the standard lugs accept?
The factory-installed standard box lugs (part number PDG1X3T125) accept 14 to 3/0 AWG copper or aluminum conductors.
Can the PDG13M0125TFFJ be applied in DC electrical systems?
Yes, this breaker has a 35kAIC interrupting rating at 250VDC. When used in 250VDC applications, Eaton requires wiring two poles in series.
Can the trip settings on the PDG13M0125TFFJ be adjusted in the field?
No. This breaker features a fixed thermal and fixed magnetic trip unit, meaning the long-time and instantaneous trip thresholds are factory set and non-adjustable.
What does the M signify in the PDG13M0125TFFJ catalog number?
In the Power Defense nomenclature, the M designates the interrupting capacity tier. For this Frame 1 breaker, it indicates a 65kAIC rating at 480VAC.
What does TFF mean in the Eaton part number?
The TFF suffix specifies the trip unit type. It stands for Thermal Magnetic with Fixed Thermal and Fixed Magnetic protection elements.
What is the replacement lug kit part number for this breaker?
If you need to replace the standard line and load terminals, the correct Eaton lug kit is catalog number PDG1X3T125.
Does this breaker provide ground fault protection?
No. The PDG13M0125TFFJ has a standard LI (Long-Time, Instantaneous) thermal magnetic trip unit. It does not include integral ground fault protection.
