Eaton / Cutler-Hammer PDG23F0100TFFL Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0100TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0100TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

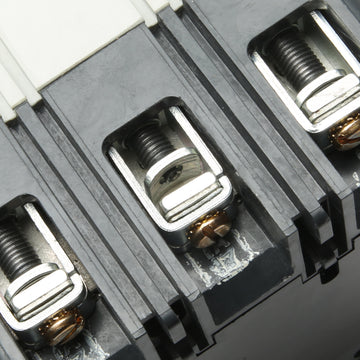

Eaton / Cutler-Hammer PDG23F0100TFFL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0100TFFL
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty industrial environments, this 100-amp Power Defense breaker offers reliable three-phase circuit protection. The device installs into Eaton panelboards and serves as a seamless upgrade for legacy FDB3100 configurations. Utilizing a fixed thermal-magnetic trip unit, it achieves a 25kAIC interrupt rating at 480VAC while providing current-limiting capabilities. Load-side terminals are included, ensuring straightforward integration into commercial and marine switchgear.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Terminals (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Globally Rated, Current Limiting |
Product FAQs
6 answersDoes the PDG23F0100TFFL replace older Eaton Series C circuit breakers?
Yes, the Power Defense Frame 2 series is the direct modern replacement for legacy Eaton Series C F-Frame breakers, including the FDB3100, FD3100, and HFD3100. Note that updated Power Defense mounting hardware is required when upgrading from legacy models.
Can the PDG23F0100TFFL be reverse fed?
Yes, this thermal magnetic Power Defense circuit breaker is suitable for reverse feed applications. It can be wired on either the line side or the load side depending on your specific installation requirements.
What does the "F" in the PDG23F0100TFFL catalog number indicate?
The "F" designates the interrupting capacity of the breaker. For this Power Defense Frame 2 model, it indicates a rating of 25kAIC at 480VAC.
What does "TFFL" mean in the part number?
"TFFL" specifies the trip unit and terminal configuration. It stands for a Thermal Magnetic trip unit with Fixed Thermal and Fixed Magnetic settings, and it includes standard lug terminals on the load side.
Are the terminal lugs on this Power Defense breaker interchangeable with older models?
Yes, Power Defense Frame 2 (PD2) circuit breakers can use the same terminal lugs as the legacy Series C F-Frame breakers, and vice versa.
What equipment is this 100A breaker designed to fit?
It is designed for use with Eaton Power Defense enclosures, panelboards, and compatible switchgear requiring a Frame 2 bolt-on molded case circuit breaker.
