Eaton / Cutler-Hammer PDG23F0225TFFL Molded Case Circuit Breaker
- 225A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0225TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0225TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

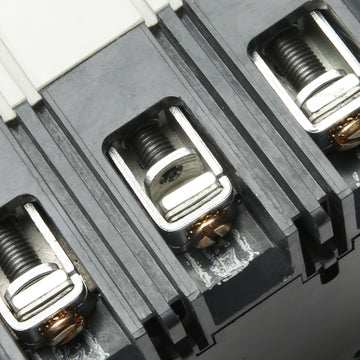

Eaton / Cutler-Hammer PDG23F0225TFFL - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton/Cutler-HammerPDG23G0225TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23G0225TFFJ
225A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0225TFFL
225A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Eaton PDG23F0225TFFL is a 3-pole, 225A molded case circuit breaker from the Power Defense series. It provides robust protection for systems up to 600VAC. This Frame 2 panel mount breaker installs into compatible Eaton switchboards. It features standard load-side lugs and serves as a seamless replacement for discontinued FDB3225 units. Rated 35kAIC at 240V, it utilizes fixed thermal-magnetic trip settings for dependable LI protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
7 answersCan the PDG23F0225TFFL replace older Cutler-Hammer breakers?
Yes, this Power Defense Frame 2 breaker serves as a modern replacement for discontinued legacy Cutler-Hammer breakers, such as the FDB3225, while fitting into similar panel spaces.
What does the TFFL suffix mean in the PDG23F0225TFFL catalog number?
In Eaton's Power Defense nomenclature, TFFL indicates that the breaker has a Thermal-Magnetic trip unit with Fixed thermal and Fixed magnetic settings, and comes standard with load-side Lugs.
Are the overload and short-circuit trip settings adjustable on this breaker?
No, this model features a fixed thermal-magnetic trip unit. Both the thermal overload and magnetic short-circuit protection thresholds are factory-set and cannot be adjusted in the field.
What does the LI trip function code indicate?
The LI code signifies that the thermal-magnetic trip unit provides Long-Time protection against sustained overloads and Instantaneous protection for immediate short-circuit clearing.
What wire sizes and materials are compatible with the load-side lugs?
The standard load-side lugs are dual-rated for both aluminum and copper conductors, accepting wire gauges from 4 AWG up to 4/0 AWG.
Does this breaker include both line and load terminal lugs?
The PDG23F0225TFFL comes standard with load-side lug terminals only. Line-side connections typically depend on the specific busbar or mounting hardware of the panelboard or switchboard.
What types of enclosures or panels is this breaker designed for?
This Frame 2 complete breaker is engineered for panel-mount installation in Eaton Power Defense panelboards, switchboards, and compatible industrial enclosures.
